Mansfield Center - Mansfield Muni
Airport details
| Country | United States of America |
| State | Massachusetts |
| Region | K6 |
| Airspace | Boston Ctr |
| Municipality | Mansfield |
| Elevation | 121ft (37m) |
| Timezone | GMT -5 |
| Coordinates | 42.00090, -71.19822 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | 1B9 |
| IATA code | n/a |
| FAA code | n/a |
Communication

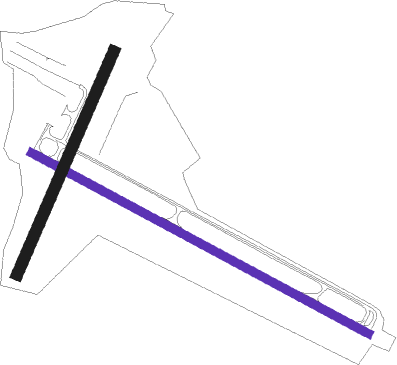

Runway info
| Runway 14 / 32 | ||
| length | 1064m (3491ft) | |
| bearing | 116° / 296° | |
| width | 23m (75ft) | |
| surface | asphalt | |
| displ threshold | 156m (512ft) / 71m (233ft) | |
| blast zone | 21m (69ft) / 0m (0ft) | |
Runway 04 / 22  | ||
| length | 676m (2218ft) | |
| bearing | 35° / 215° | |
| width | 30m (100ft) | |
| surface | hard surface | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| OW | STOGE (NORWOOD) NDB | 7.7 | 30° | 397 |
| PVD | PROVIDENCE VOR/DME | 19.5 | 220° | 115.60 |
| BOS | BOSTON VOR/DME | 23.3 | 30° | 112.70 |
| PUT | PUTNAM VOR/DME | 28.9 | 266° | 117.40 |
| FMH | OTIS (FALMOUTH) TACAN | 36.8 | 117° | 115.80 |
| PVC | PROVINCETOWN NDB | 43.6 | 86° | 389 |
| LWM | DME | 44.6 | 8° | 112.50 |
| ORW | NORWICH VOR/DME | 44.7 | 241° | 110 |
| MVY | MARTHA'S VINEYARD VOR/DME | 44.8 | 136° | 114.50 |
| HY | BOGEY (HYANNIS) NDB | 47.6 | 106° | 342 |
| GDM | GARDNER VOR/DME | 50.3 | 302° | 110.60 |
| MHT | MANCHESTER VOR/DME | 52.6 | 349° | 114.40 |
| SEY | SANDY POINT (BLOCK ISLAND VOR/DME | 52.8 | 204° | 117.80 |
| MJ | FITZY (MANCHESTER) NDB | 53.8 | 339° | 209 |
| GON | GROTON VOR/DME | 55.5 | 232° | 110.85 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| WOONS2 | 44.7 | 61° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW32 | AVONN (1°) | AVONN REPOY (14mi, 43°) 3000ft RAYNM (5mi, 41°) 3000ft |
| RW32 | DUNKK (262°) | DUNKK RAYNM (18mi, 239°) 3000ft |
| RW32 | WOONS (81°) | WOONS RAYNM (24mi, 96°) 3000ft RAYNM (turn) 3000ft |
| RNAV | RAYNM 3000ft EASTN (6mi, 296°) 2000ft 1B9 (6mi, 296°) 159ft (4573mi, 121°) 522ft WHYBE (4586mi, 301°) 3000ft WHYBE (turn) |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| WOONS2 | ORW | NDB | left | 238 (58)° | 2500ft - 17500ft | 1.0min timed | ICAO rules |
| WOONS2 | WOONS | VHF | left | 240 (60)° | < 17999ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
