Santa Elena - San Rafael Ranch
Airport details
| Country | United States of America |
| State | Texas |
| Region | K4 |
| Airspace | Houston Oceanic Ctr |
| Municipality | Jim Hogg County |
| Elevation | 312ft (95m) |
| Timezone | GMT -6 |
| Coordinates | 26.81521, -98.47931 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | 38XS |
| IATA code | n/a |
| FAA code | 38XS |
Communication
| San Rafael Ranch UNICOM | 122.800 |
Nearby Points of Interest:
Brooks County Courthouse

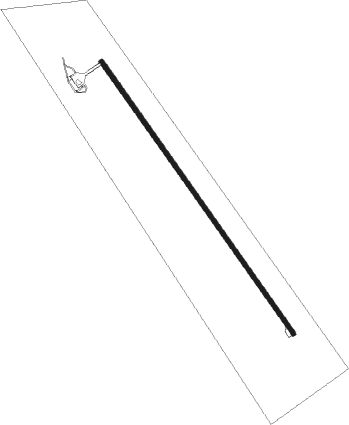

Runway info
| Runway 14 / 32 | ||
| length | 1831m (6007ft) | |
| bearing | 146° / 326° | |
| width | 23m (75ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| EOC | COYOTE (ENCINO) NDB | 14.1 | 82° | 232 |
| MF | MISSI (MC ALLEN) NDB | 34.9 | 163° | 330 |
| MFE | MC ALLEN VOR/DME | 40.5 | 160° | 117.20 |
| REX | REYNOSA VOR/DME | 50.1 | 163° | 112.40 |
| HR | SEBAS (HARLINGEN) NDB | 53.7 | 122° | 338 |
| NQI | KINGSVILLE TACAN | 54.6 | 45° | 117.80 |
| HRL | HARLINGEN VOR/DME | 56.6 | 125° | 113.65 |
| ALI | ALICE VOR | 60.6 | 26° | 114.50 |
| LRD | LAREDO VORTAC | 64 | 305° | 117.40 |
| BR | DEPOO (BROWNSVILLE) NDB | 72.2 | 131° | 393 |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW14 | CRP (224°) | CRP FEPRU (73mi, 230°) 4000ft LIPBI (10mi, 242°) 2700ft |
| RNAV | LIPBI 2700ft HEKAG (6mi, 146°) 2000ft 38XS (6mi, 146°) 353ft (5859mi, 105°) 563ft HEBIM (5854mi, 285°) 2700ft HEBIM (turn) | |
| RW32 | CRP (224°) | CRP RIKYO (81mi, 213°) 4000ft HEBIM (10mi, 242°) 2700ft |
| RNAV | HEBIM 2700ft DUYSE (6mi, 326°) 2000ft 38XS (6mi, 326°) 338ft (5859mi, 105°) 604ft LIPBI (5865mi, 285°) 2700ft LIPBI (turn) |
