Airports for X-Plane

New Chicago - Hobart Sky Ranch

Airport details

CountryUnited States of America
StateIndiana
RegionK5
AirspaceChicago Ctr
MunicipalityLake County
Elevation644ft (196m)
TimezoneGMT -6
Coordinates41.55420, -87.26254
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO code3HO
IATA coden/a
FAA coden/a

Communication

Hobart Sky Ranch CTAF/UNICOM122.800

Runway info

Runway 18 / 36
 length956m (3136ft)
 bearing179° / 359°
 width12m (40ft)
 surfaceasphalt
 displ threshold153m (502ft) / 98m (322ft)

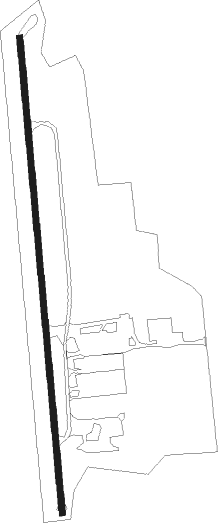

Airport layout


Nearby beacons

codeidentifierdistbearingfrequency
GYGARIE (GARY) NDB3.1286°236
CGTCHICAGO HEIGHTS VORTAC14.1262°114.20
VPSEDLY (VALPARAISO) NDB18.3105°212
MXKEDZI (CHICAGO) NDB22.2294°248
EONPEOTONE VORTAC29.3242°113.20
OXIKNOX VOR/DME30.9111°115.60
GCODME38.9305°108.25
IKKDME39.1231°111.60
IKLUKOW (KANKAKEE) NDB43.3230°272
GIJGIPPER (NILES) VORTAC44.277°115.40
OBKNORTHBROOK VOR/DME50.5314°113
UGWAUKE (CHICAGO/WAUKEGAN) NDB59.6329°379
BVTBOILER (LAFAYETTE) VORTAC60.5169°115.10
RBSROBERTS VOR/DME71.2223°116.80

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
ALL
 LUCIT220.627°
 GSH755.5271°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GSH7GSHNDBleft92 (272)°1.0min timedICAO rules
GSH7HALIEVHFleft87 (267)°1.0min timedICAO rules
GSH7IROCKVHFright87 (267)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
