Airports for X-Plane

Port Moresby - Port Moresby Jacksons Intl

Airport details

CountryPapua New Guinea
StateNational Capital District
RegionAY
AirspacePort Moresby Ctr
Elevation126ft (38m)
TimezoneGMT +10
Coordinates-9.44845, 147.21848
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeAYPY
IATA codePOM
FAA coden/a

Communication

Port Moresby Jacksons Intl JACKSONS ATIS117.000
Port Moresby Jacksons Intl JACKSONS ATIS128.000
Port Moresby Jacksons Intl JACKSONS Ground Control121.700
Port Moresby Jacksons Intl JACKSONS Tower118.100
Port Moresby Jacksons Intl JACKSONS Approach125.800

Approach frequencies

ILS-cat-IRW32R109.518.00mi
ILS-cat-IRW14L110.118.00mi
3° GSRW32R109.518.00mi
3° GSRW14L110.118.00mi

Runway info

Runway 14L / 32R
 length2760m (9055ft)
 bearing148° / 328°
 width45m (148ft)
 surfaceasphalt
Runway 14R / 32L
 length1311m (4301ft)
 bearing148° / 328°
 width45m (148ft)
 surfaceasphalt
 blast zone0m (0ft) / 255m (837ft)

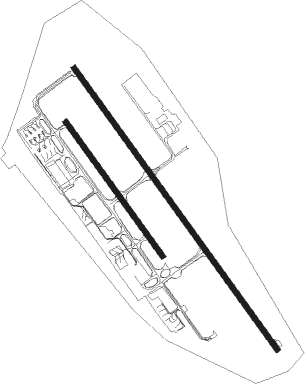

Airport layout


Taxiway locations

 A  B  C  D  E  F  H  J
 K  L  M  N
Parking locations

 Cargo  Corporate  Domestic  GA  Helifix  International  Itinerant  Light
 New  PNG

Nearby beacons

codeidentifierdistbearingfrequency
PYPORT MORESBY VOR/DME0.3215°117

Departure and arrival routes

Transition altitude20000ft
Transition level21000ft
SID end pointsdistanceoutbound heading
RW14L
 RUKVI153mi13°
 TOMOM140mi56°
 NUPTA150mi127°
 LOTGU150mi163°
 UNSAM150mi191°
 GUNKI130mi275°
 STARF135mi303°
 ODOGA150mi350°
RW32R
 RUKVI153mi13°
 TOMOM140mi56°
 NUPTA150mi127°
 LOTGU150mi163°
 UNSAM150mi191°
 GUNKI130mi275°
 STARF135mi303°
 ODOGA150mi350°

STAR starting pointsdistanceinbound heading
RW14L
 UNSAM149.811°
 GUMBU149.895°
 SAKTO152.9147°
 MUDOV150.0236°
 ENTO1B39.8266°
 ENTO1A29.7271°
 NUPTA149.7307°
 LOTGU149.8343°
RW32R
 UNSAM149.811°
 GUMBU149.895°
 SAKTO152.9147°
 MUDOV150.0236°
 ENTO1A29.7271°
 NUPTA149.7307°
 LOTGU149.8343°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ENTO1ADAPLOVHFright323 (143)°> 3000ft1.0min timed200
ENTO1ASARABVHFleft143 (323)°> 4000ft1.0min timed210
ENTO1BDAPLOVHFright323 (143)°> 3000ft1.0min timed200
GUMBU1DAPLOVHFright323 (143)°> 3000ft1.0min timed200
GUMBU1SARABVHFleft143 (323)°> 4000ft1.0min timed210
LOTGU1DAPLOVHFright323 (143)°> 3000ft1.0min timed200
LOTGU1SARABVHFleft143 (323)°> 4000ft1.0min timed210
MUDOV1DAPLOVHFright323 (143)°> 3000ft1.0min timed200
MUDOV1SARABVHFleft143 (323)°> 4000ft1.0min timed210
NUPTA1DAPLOVHFright323 (143)°> 3000ft1.0min timed200
NUPTA1SARABVHFleft143 (323)°> 4000ft1.0min timed210
SAKTO1DAPLOVHFright323 (143)°> 3000ft1.0min timed200
SAKTO1SARABVHFleft143 (323)°> 4000ft1.0min timed210
UNSAM1DAPLOVHFright323 (143)°> 3000ft1.0min timed200
UNSAM1SARABVHFleft143 (323)°> 4000ft1.0min timed210
*) magnetic outbound (inbound) holding course
