Airports for X-Plane

Timberlane - Poplar Grove

Airport details

Country	United States of America
State	Illinois
Region	K5
Airspace	Chicago Ctr
Municipality	Poplar Grove
Elevation	855ft (261m)
Timezone	GMT -6
Coordinates	42.32286, -88.83630
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	C77
IATA code	n/a
FAA code	n/a

Communication

Poplar Grove CTAF/UNICOM	122.800
Poplar Grove ROCKFORD Approach/Departure	121.000

Runway info

Runway 12 / 30
	length	1151m (3776ft)
	bearing	115° / 295°
	width	15m (50ft)
	surface	asphalt
	displ threshold	151m (495ft) / 0m (0ft)
Runway 9 / 27
	length	826m (2710ft)
	bearing	90° / 270°
	width	61m (200ft)
	surface	grass
	blast zone	46m (151ft) / 0m (0ft)
Runway 17 / 35
	length	753m (2470ft)
	bearing	174° / 354°
	width	46m (150ft)
	surface	grass
	displ threshold	56m (184ft) / 0m (0ft)

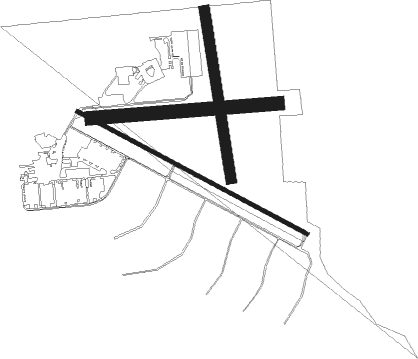

Airport layout

Nearby beacons

code	identifier	dist	bearing	frequency
RFD	DME	17.1	255°	110.80
JVL	JANESVILLE VOR/DME	18.4	311°	114.30
BUU	(BURLINGTON) DME	32.3	56°	114.50
DPA	DUPAGE (CHICAGO) VOR/DME	33.8	132°	108.40
PLL	POLO VOR/DME	37.3	243°	111.20
OBK	NORTHBROOK VOR/DME	39.7	97°	113
ENW	DME	43.3	73°	109.20
GCO	DME	46	109°	108.25
RA	PASER (RACINE) NDB	46.7	69°	206
RYV	ROCK RIVER (WATERTOWN) NDB	51.3	7°	371
JOT	JOLIET VOR/DME	52	146°	112.30
BAE	BADGER (MILWAUKEE) VOR/DME	53.5	35°	116.40
MSN	MADISON VORTAC	54.1	329°	108.60
LJT	(MILWAUKEE) DME	58.9	45°	115.65

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RWNVA	NIBDE (269°)	NIBDE VNTGE (7mi, 221°) 3000ft
RWNVA	STEEF (330°)	STEEF VNTGE (7mi, 41°) 3000ft
RWNVA	VNTGE (296°)	VNTGE 3000ft
	RNAV	VNTGE 3000ft DWNEE (5mi, 295°) 2500ft C77 (5mi, 296°) 890ft (5353mi, 115°) 1257ft VNTGE (5345mi, 295°) 3000ft VNTGE (turn)
