Airports for X-Plane

Winkler

Airport details

CountryCanada
StateManitoba
RegionCY
AirspaceWinnipeg Ctr
MunicipalityWinkler
Elevation890ft (271m)
TimezoneGMT -6
Coordinates49.17050, -97.92000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCKZ7
IATA coden/a
FAA coden/a

Communication

Winkler ATF/Unicom123.000

Runway info

Runway 17 / 35
 length829m (2720ft)
 bearing180° / 0°
 width23m (75ft)
 surfacegrass
Runway 09 / 27
 length863m (2831ft)
 bearing90° / 270°
 width23m (75ft)
 surfaceasphalt

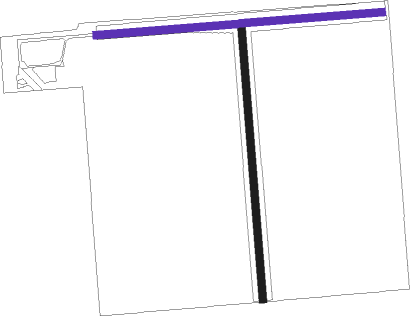

Airport layout - runway 09 / 27


Parking locations

 Tie

Nearby beacons

codeidentifierdistbearingfrequency
HMLHUMBOLDT TACAN36.4111°112.40
LFLA SALLE NDB37.253°336
PGPORTAGE (PORTAGE LA PRAIRIE) NDB41.5339°353
YPGPORTAGE (PORTAGE LA PRAIR VOR/DME45.8335°114.60
ZWWBOINE (WINNIPEG) NDB47.345°215
WGWINNIPEG NDB4938°248
ZHTFORKS (WINNIPEG) NDB5049°236
YWGWINNIPEG VORTAC52.642°115.50
ZWNDOWNS (WINNIPEG) NDB5337°201
ZWGSTONEY (WINNIPEG) NDB56.241°287
UDEDELTA NDB61.6339°269
BMBALMORAL NDB62.732°375

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09IMAPI (107°)IMAPI
OMVOK (6mi, 179°) 2700ft
RW09TIKEX (72°)TIKEX
OMVOK (6mi, 359°) 2700ft
 RNAVOMVOK 2700ft
SEKIR (6mi, 90°) 2700ft
IPSEK (3mi, 90°) 1730ft
CKZ7 (3mi, 90°) 929ft
UDKUB (7mi, 90°) 3300ft
UDKUB (turn)
RW27DUSIM (252°)DUSIM
KAXEV (6mi, 180°) 2600ft
RW27EMANA (288°)EMANA
KAXEV (6mi, 0°) 2600ft
 RNAVKAXEV 2600ft
ENAPO (6mi, 270°) 2600ft
CKZ7 (5mi, 270°) 924ft
AVIBU (7mi, 270°) 3300ft
AVIBU (turn)
