St Andrews - Winnipeg St. Andrews
Airport details
| Country | Canada |
| State | Manitoba |
| Region | CY |
| Airspace | Winnipeg Ctr |
| Municipality | Rural Municipality of St. Andrews |
| Elevation | 754ft (230m) |
| Timezone | GMT -6 |
| Coordinates | 50.06096, -97.03957 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | CYAV |
| IATA code | YAV |
| FAA code | YAV |
Communication
| Winnipeg St. Andrews ATIS | 125.800 |
| Winnipeg St. Andrews Ground Control | 121.800 |
| Winnipeg St. Andrews Tower | 118.500 |
| Winnipeg St. Andrews Winnipeg ApproachR | 119.500 |
| Winnipeg St. Andrews Winnipeg Departure | 119.900 |
Nearby Points of Interest:
Red River Floodway
-Oak Hammock Marsh
-Ukrainian Labour Temple
-Union Bank Building
-Confederation Building
-Burton Cummings Theatre
-Birks Building
-Metropolitan Theatre
-The Forks, Winnipeg
-Manitoba Legislative Building
-Granite Curling Club
-Minto Armoury
-Cornish Library
-St. Vital Historical Society

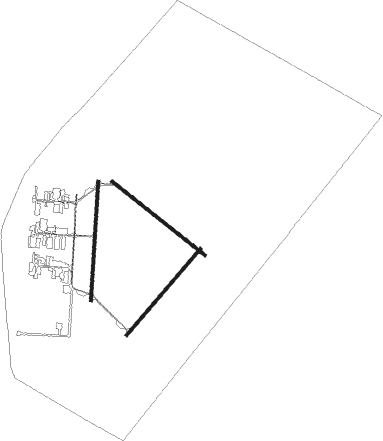

Runway info
Runway 04 / 22  | ||
| length | 877m (2877ft) | |
| bearing | 57° / 237° | |
| width | 23m (75ft) | |
| surface | asphalt | |
| Runway 13 / 31 | ||
| length | 914m (2999ft) | |
| bearing | 121° / 301° | |
| width | 23m (75ft) | |
| surface | asphalt | |
| Runway 18 / 36 | ||
| length | 915m (3002ft) | |
| bearing | 192° / 12° | |
| width | 23m (75ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| ZWG | STONEY (WINNIPEG) NDB | 8.1 | 248° | 287 |
| YWG | WINNIPEG VORTAC | 11.1 | 236° | 115.50 |
| BM | BALMORAL NDB | 11.3 | 286° | 375 |
| ZWN | DOWNS (WINNIPEG) NDB | 12.3 | 251° | 201 |
| ZHT | FORKS (WINNIPEG) NDB | 14.2 | 205° | 236 |
| WG | WINNIPEG NDB | 15.4 | 242° | 248 |
| ZWW | BOINE (WINNIPEG) NDB | 16.2 | 223° | 215 |
| LF | LA SALLE NDB | 27 | 212° | 336 |
| M4 | GIMLI NDB | 34.8 | 359° | 296 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW04 | |||
| CYAV6 | 13mi | 231° | |
| RW13 | |||
| CYAV6 | 13mi | 231° | |
| RW18 | |||
| CYAV6 | 13mi | 231° | |
| RW22 | |||
| CYAV6 | 13mi | 231° | |
| RW31 | |||
| CYAV6 | 13mi | 231° | |
| RW36 | |||
| CYAV6 | 13mi | 231° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW13 | OVDUK (169°) | OVDUK ULBES (5mi, 248°) 3000ft |
| RNAV | ULBES 3000ft NOXOX (5mi, 136°) 2100ft XERUG (2mi, 121°) 1600ft CYAV (2mi, 124°) 808ft (5676mi, 117°) 1300ft AXILU (5664mi, 297°) 3000ft AXILU (turn) | |
| RW18 | AVRAD (153°) | AVRAD PETGU (5mi, 95°) 3000ft |
| RW18 | KETSI (227°) | KETSI PETGU (5mi, 275°) 3000ft |
| RNAV | PETGU 3000ft SUTOP (6mi, 192°) 2100ft CYAV (4mi, 194°) 807ft (5676mi, 117°) 1300ft AXILU (5664mi, 297°) 3000ft AXILU (turn) | |
| RW31 | LONTI (281°) | LONTI OBTED (5mi, 235°) 3000ft |
| RW31 | UDGOB (327°) | UDGOB OBTED (5mi, 55°) 3000ft |
| RNAV | OBTED 3000ft DEGPI (6mi, 301°) 2100ft CYAV (5mi, 299°) 810ft (5676mi, 117°) 1300ft DUTEN (5673mi, 297°) 3000ft DUTEN (turn) | |
| RW36-X | MIXOD (317°) | MIXOD OTVIP (5mi, 264°) 3000ft |
| RNAV | OTVIP 3000ft ULUMI (4mi, 345°) 2500ft SIMGU (5mi, 7°) 809ft (5676mi, 117°) 1300ft DUTEN (5673mi, 297°) 3000ft DUTEN (turn) | |
| RW36-Z | MIXOD (317°) | MIXOD OTVIP (5mi, 264°) 3000ft |
| RNAV | OTVIP 3000ft ULUMI (4mi, 345°) 2500ft CYAV (5mi, 7°) 809ft (5676mi, 117°) 1300ft DUTEN (5673mi, 297°) 3000ft DUTEN (turn) |
