Atikokan - Atikokan Muni
Airport details
| Country | Canada |
| State | Ontario |
| Region | CY |
| Airspace | Winnipeg Ctr |
| Municipality | Atikokan |
| Elevation | 1408ft (429m) |
| Timezone | GMT -5 |
| Coordinates | 48.77412, -91.63877 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.32 |
| ICAO code | CYIB |
| IATA code | YIB |
| FAA code | n/a |
Communication
| ATIKOKAN MUNI CTAF | 122.300 |
| ATIKOKAN MUNI MF | 122.300 |

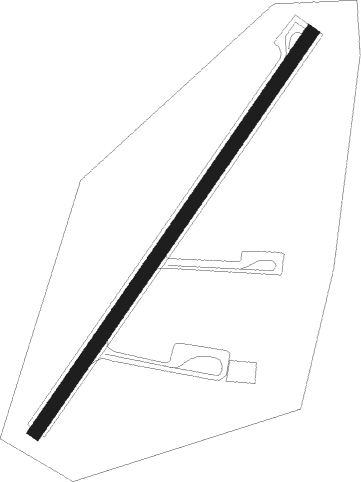

Runway info
| Runway 04 / 22 | ||
| length | 1051m (3448ft) | |
| bearing | 51° / 231° | |
| width | 30m (100ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| SCG | SCOTT (CRANE LAKE) NDB | 45.3 | 238° | 385 |
| ELO | DME | 57.6 | 191° | 109.60 |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW04 | KANEG (19°) | KANEG GUDIX (5mi, 298°) 3100ft |
| RW04 | LENIP (73°) | LENIP GUDIX (5mi, 118°) 3100ft |
| RNAV | GUDIX 3100ft IMAGU (5mi, 50°) 3030ft CYIB (5mi, 51°) 1425ft REROM (5mi, 51°) 3100ft REROM (turn) | |
| RW22 | BILPA (253°) | BILPA DAVUK (5mi, 298°) 3100ft |
| RW22 | UDLOL (199°) | UDLOL DAVUK (5mi, 118°) 3100ft |
| RNAV | DAVUK 3100ft OBSAD (5mi, 231°) 3050ft SASIL (2mi, 231°) 2410ft CYIB (3mi, 231°) 1449ft MOGIR (5mi, 231°) 3100ft MOGIR (turn) |
