Airports for X-Plane

Kamloops

Airport details

CountryCanada
StateBritish Columbia
RegionCY
AirspaceVancouver Ctr
MunicipalityKamloops
Elevation1131ft (345m)
TimezoneGMT -8
Coordinates50.70251, -120.44861
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYKA
IATA codeYKA
FAA codeYKA

Communication

Kamloops Clearance Delivery121.900
Kamloops Radio125.700
Kamloops CTR Vancouver132.350

Approach frequencies

LOCRW27109.918.00mi
ILS-cat-IRW09109.318.00mi
3.1° GSRW09109.318.00mi

Runway info

Runway 09 / 27
 length2432m (7979ft)
 bearing98° / 278°
 width45m (148ft)
 surfaceasphalt
 blast zone30m (98ft) / 20m (66ft)
Runway 04 / 22
 length845m (2772ft)
 bearing71° / 251°
 width15m (49ft)
 surfaceasphalt
 displ threshold208m (682ft) / 0m (0ft)

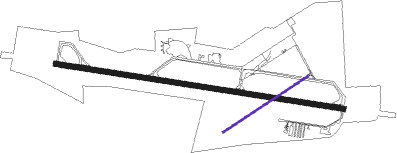

Airport layout - runway 04 / 22


Taxiway locations

 A  B  C  D  F  G
Parking locations

 Executive  Firefighting  Gate  Helicopter  Helitack  Itinerant  Kamloops  North
 South  Summit

Nearby beacons

codeidentifierdistbearingfrequency
YWBWESTBANK (KELOWNA) NDB62137°389

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW09
 KEBRA121mi99°
RW27
 OLONA121mi276°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09-YBOTAV (98°)BOTAV 8000ft
IGTED (10mi, 98°) 4900ft
GUBIG (3mi, 98°) 4000ft
RW09-YDEMMA (155°)DEMMA 8000ft
XETER (5mi, 271°) 6800ft
KEBKA (3mi, 252°) 5700ft
MEDBI (2mi, 205°) 5100ft
GUBIG (3mi, 129°) 4000ft
RW09-YYAROW (76°)YAROW
EMGEK (12mi, 63°) 9000ft
OVENA (7mi, 63°) 8100ft
DAVNU (4mi, 64°) 6900ft
XUDUM (4mi, 64°) 5700ft
IGTED (3mi, 82°) 4900ft
GUBIG (3mi, 98°) 4000ft
 RNAVGUBIG 4000ft
CYKA (9mi, 99°) 1186ft
IKBIV (16mi, 99°) 7000ft
IKBIV (turn)
RW09-ZEBLEM (111°)EBLEM 8000ft
DUVON (6mi, 200°) 6200ft
RW09-ZYAROW (76°)YAROW
EMGEK (12mi, 63°) 9000ft
OVENA (7mi, 63°) 8100ft
AXUDO (3mi, 32°) 7200ft
DUVON (4mi, 32°) 6200ft
 RNAVDUVON 6200ft
NADGA (6mi, 98°) 4900ft
LESAP (2mi, 98°) 4500ft
CYKA (10mi, 99°) 1186ft
IKBIV (16mi, 99°) 7000ft
IKBIV (turn)
RW27-YDEDEK (324°)DEDEK 8100ft
VOLUP (6mi, 85°) 6300ft
XEVAG (4mi, 55°) 5300ft
LEVOP (4mi, 310°) 4400ft
RW27-YMODUM (248°)MODUM 8000ft
AVOLO (3mi, 145°) 7100ft
OMEMU (3mi, 145°) 6200ft
EBKIR (2mi, 176°) 5600ft
LEVOP (4mi, 251°) 4400ft
RW27-YVOMAD (280°)VOMAD 8000ft
AXIRA (7mi, 281°) 5900ft
LEVOP (5mi, 281°) 4400ft
 RNAVLEVOP 4400ft
CYKA (10mi, 278°) 1183ft
EPVEK (15mi, 278°) 7000ft
EPVEK (turn)
RW27-ZBODVU (270°)BODVU 8000ft
UKSID (5mi, 211°) 8000ft
RW27-ZLEXEB (291°)LEXEB 8100ft
UKSID (7mi, 21°) 8000ft
 RNAVUKSID 8000ft
VOBIX (7mi, 279°) 5900ft
MIXIG (5mi, 279°) 4400ft
CYKA (10mi, 278°) 1183ft
EPVEK (15mi, 278°) 7000ft
EPVEK (turn)
RWNVAURNIP (302°)URNIP
TUDUD (7mi, 21°) 6500ft
RWNVAVIBSO (259°)VIBSO
TUDUD (7mi, 201°) 6500ft
 RNAVTUDUD 6500ft
ROTKA (5mi, 279°) 5300ft
PIKDI (2mi, 279°) 4500ft
CYKA (5mi, 278°) 3240ft
DEPGO (12mi, 275°) 8000ft
DEPGO (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
