Airports for X-Plane

Ottawa - Ottawa Macdonald-cartier Intl

Airport details

CountryCanada
StateOntario
RegionCY
AirspaceMontreal Ctr
MunicipalityOttawa
Elevation374ft (114m)
TimezoneGMT -5
Coordinates45.32259, -75.65842
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYOW
IATA codeYOW
FAA coden/a

Communication

Ottawa MacDonald-Cartier Intl ATIS121.150
Ottawa MacDonald-Cartier Intl DLV119.400
Ottawa MacDonald-Cartier Intl Quebec Radio123.150
Ottawa MacDonald-Cartier Intl Ground Control121.900
Ottawa MacDonald-Cartier Intl Tower VFR NORTH120.100
Ottawa MacDonald-Cartier Intl Tower118.800
Ottawa MacDonald-Cartier Intl ARR135.150
Ottawa MacDonald-Cartier Intl Departure128.175

Approach frequencies

ILS-cat-IRW07109.518.00mi
ILS-cat-IRW32110.318.00mi
3° GSRW07109.518.00mi
3° GSRW32110.318.00mi
Nearby Points of Interest:
Sir Charles Tupper Building
-
Edward Drake Building
-
Kilmorie house
-
Sir John Carling Building
-
K.W. Neatby Building
-
Main Building
-
Ottawa Normal School
-
Cartier Square Drill Hall
-
Wellington Building
-
National Arts Centre
-
Sir John A. Macdonald Building
-
National Press Building
-
Justice Building
-
Bell Block
-
Victoria Building
-
Scottish Ontario Chambers
-
Confederation Building
-
Supreme Court Building
-
Confederation Square
-
Senate of Canada Building
-
Goodwin House
-
Transportation Building
-
fairmont chateau laurier gold experience
-
Laurier House
-
Fleck/Paterson House

Runway info

Runway 07 / 25
 length2430m (7972ft)
 bearing66° / 246°
 width61m (200ft)
 surfaceasphalt
 blast zone49m (161ft) / 49m (161ft)
Runway 14 / 32
 length3049m (10003ft)
 bearing117° / 297°
 width61m (200ft)
 surfaceasphalt
 blast zone55m (180ft) / 55m (180ft)
Runway 04 / 22
 length1006m (3301ft)
 bearing34° / 214°
 width23m (75ft)
 surfaceasphalt
 displ threshold77m (253ft) / 0m (0ft)

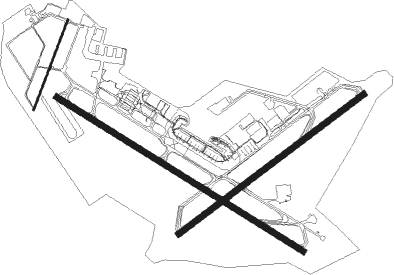

Airport layout


Taxiway locations

 A  AA  B  BB  C  CC  D  E
 F  G  J  K  L  M  P  Q
 T
Parking locations

 Air  Canada  Canadian  Cargo  Esso  Express  Fedex  Flight
 Gate  Ottawa  RCAF  RCMP

Nearby beacons

codeidentifierdistbearingfrequency
OWOTTAWA NDB4.669°236
YOWOTTAWA VOR/DME12.3297°114.60
OGOGIVE (OGDENSBURG) NDB39.4154°358
MSMISSE (MASSENA) NDB42.2122°278
MSSMASSENA TACAN46.6114°114.10
PTDPOTSDAM NDB48.7128°400
YMWMANIWAKI NDB54.5341°366

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW04
 CYOW445mi132°
RW07
 CYOW445mi132°
RW14
 CYOW445mi132°
RW22
 CYOW445mi132°
RW25
 CYOW445mi132°
RW32
 CYOW445mi132°

STAR starting pointsdistanceinbound heading
RW07
 CAPTL538.463°
 MEECH439.6115°
 LEAMY525.1177°
 DEANS124.7325°
RW14
 CAPTL538.463°
 MEECH439.6115°
 LEAMY525.1177°
 DEANS124.7325°
RW25
 CAPTL538.463°
 MEECH439.6115°
 LEAMY525.1177°
 DEANS124.7325°
RW32
 CAPTL538.463°
 MEECH439.6115°
 LEAMY525.1177°
 DEANS124.7325°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07-YKEMLU (113°)KEMLU 5000ft
MOBAS (4mi, 193°) 3900ft
OMTIT (3mi, 156°) 3000ft
PESKI (1mi, 126°) 2600ft
AMOBI (3mi, 95°) 1700ft
RW07-YNOVUX (11°)NOVUX 5000ft
ULAGU (2mi, 246°) 4500ft
MEBEP (5mi, 318°) 2300ft
AMOBI (2mi, 66°) 1700ft
RW07-YVISOL (65°)VISOL 3000ft
MEBEP (4mi, 66°) 2300ft
AMOBI (2mi, 66°) 1700ft
 RNAVAMOBI 1700ft
CYOW (5mi, 64°) 427ft
TEFLY (10mi, 67°) 3000ft
TEFLY (turn)
RW07-ZMODON (84°)MODON 3000ft
VISOL (5mi, 138°) 3000ft
RW07-ZTILOG (41°)TILOG 3000ft
VISOL (5mi, 318°) 3000ft
 RNAVVISOL 3000ft
AMOBI (6mi, 66°) 1700ft
CYOW (5mi, 64°) 427ft
TEFLY (10mi, 67°) 3000ft
TEFLY (turn)
RW14-YAPMUP (210°)APMUP 5000ft
TOVET (4mi, 297°) 3900ft
ILIKI (3mi, 275°) 3000ft
TAPLU (4mi, 189°) 1700ft
RW14-YONBAB (200°)ONBAB 5000ft
ILIKI (7mi, 253°) 3000ft
TAPLU (4mi, 189°) 1700ft
RW14-YRAFNO (115°)RAFNO 3500ft
TAPLU (6mi, 117°) 1700ft
RW14-YSEBEG (78°)SEBEG 5000ft
EPNIK (2mi, 356°) 4300ft
LERUR (4mi, 39°) 3000ft
TAPLU (4mi, 93°) 1700ft
 RNAVTAPLU 1700ft
CYOW (5mi, 113°) 401ft
TEXEN (11mi, 120°) 3000ft
TEXEN (turn)
RW14-ZILOGI (139°)ILOGI 3500ft
RAFNO (5mi, 226°) 3500ft
RW14-ZMEGNO (97°)MEGNO 3500ft
RAFNO (5mi, 46°) 3500ft
 RNAVRAFNO 3500ft
ALPAT (5mi, 117°) 2000ft
ESREM (3mi, 117°) 1100ft
CYOW (3mi, 111°) 401ft
TEXEN (11mi, 120°) 3000ft
TEXEN (turn)
RW25-YBOREG (327°)BOREG 5000ft
XOMDU (4mi, 66°) 3600ft
SAXUD (3mi, 31°) 2900ft
ILEBU (4mi, 287°) 1400ft
RW25-YREVAL (180°)REVAL 5000ft
ONBAT (2mi, 83°) 4400ft
VOGEM (4mi, 113°) 3200ft
ILEBU (5mi, 208°) 1400ft
RW25-YTEFLY (247°)TEFLY 3000ft
ILEBU (6mi, 246°) 1400ft
RW25-YTEXEN (300°)TEXEN 5000ft
SAXUD (7mi, 344°) 2900ft
ILEBU (4mi, 287°) 1400ft
 RNAVILEBU 1400ft
CYOW (4mi, 248°) 412ft
VISOL (11mi, 245°) 3000ft
VISOL (turn)
RW25-ZADVOS (267°)ADVOS 3000ft
TEFLY (5mi, 318°) 3000ft
RW25-ZXOLTI (221°)XOLTI 3000ft
TEFLY (5mi, 138°) 3000ft
 RNAVTEFLY 3000ft
VIVAX (4mi, 246°) 2000ft
CYOW (6mi, 247°) 412ft
VISOL (11mi, 245°) 3000ft
VISOL (turn)
RW32-YDEMKO (3°)DEMKO 5000ft
ULDAX (3mi, 85°) 4000ft
XORUX (3mi, 58°) 3000ft
VODUL (3mi, 334°) 2000ft
MIXOT (2mi, 297°) 1400ft
RW32-YILUBO (224°)ILUBO 5000ft
XUKAL (4mi, 117°) 3800ft
IMIPA (4mi, 183°) 2300ft
MIXOT (3mi, 271°) 1400ft
RW32-YTEXEN (300°)TEXEN 3000ft
VODUL (5mi, 298°) 2000ft
MIXOT (2mi, 297°) 1400ft
RW32-YURLAG (263°)URLAG 5000ft
ADVOS (3mi, 246°) 4200ft
IMIPA (6mi, 246°) 2300ft
MIXOT (3mi, 271°) 1400ft
 RNAVMIXOT 1400ft
CYOW (4mi, 304°) 420ft
RAFNO (11mi, 295°) 3000ft
RAFNO (turn)
RW32-ZVOLAG (324°)VOLAG 3000ft
TEXEN (5mi, 46°) 3000ft
RW32-ZWATTO (280°)WATTO 3000ft
TEXEN (5mi, 226°) 3000ft
 RNAVTEXEN 3000ft
VODUL (5mi, 298°) 2000ft
CYOW (6mi, 302°) 420ft
RAFNO (11mi, 295°) 3000ft
RAFNO (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CAPTL5LANRKVHFright248 (68)°1.0min timedICAO rules
DEANS1CYRILVHFleft219 (39)°1900ft - 60000ft1.0min timed310
LEAMY5ALIDOVHFright24 (204)°3600ft - 60000ft1.0min timed310
MEECH4ONDOBVHFleft312 (132)°14001ft - 60000ft1.5min timed310
RIVER4THUROVHFright93 (273)°2500ft - 60000ft1.0min timed310
RIVER4VILROVHFright104 (284)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
