Wiarton
Airport details
| Country | Canada |
| State | Ontario |
| Region | CY |
| Airspace | Toronto Ctr |
| Municipality | Georgian Bluffs |
| Elevation | 728ft (222m) |
| Timezone | GMT -5 |
| Coordinates | 44.74725, -81.11015 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | CYVV |
| IATA code | YVV |
| FAA code | n/a |
Communication
| Wiarton MF | 122.200 |

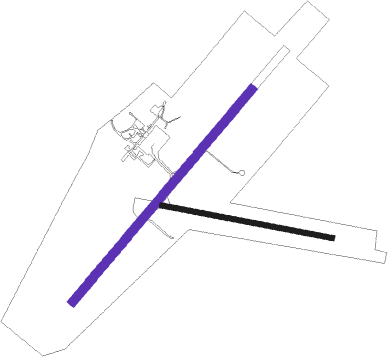

Runway info
| Runway 05 / 23 | ||
| length | 1531m (5023ft) | |
| bearing | 54° / 234° | |
| width | 46m (150ft) | |
| surface | asphalt | |
Runway 11 / 29  | ||
| length | 954m (3130ft) | |
| bearing | 101° / 281° | |
| width | 30m (100ft) | |
| surface | gravel | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| YVV | WIARTON VOR/DME | 0.2 | 115° | 117.70 |
| D7 | KINCARDINE NDB | 38.9 | 222° | 350 |
| YMS | MANS (MANSFIELD) VOR/DME | 54.9 | 122° | 114.50 |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW05 | IKLON (23°) | IKLON EBDOX (5mi, 305°) 2100ft |
| RW05 | MEDIP (76°) | MEDIP EBDOX (5mi, 125°) 2100ft |
| RNAV | EBDOX 2100ft ALUNU (5mi, 54°) 2100ft CYVV (5mi, 53°) 769ft KEGVI (5mi, 55°) 3500ft KEGVI (turn) | |
| RW23 | DUTOR (207°) | DUTOR DAPEX (5mi, 125°) 2200ft |
| RW23 | IPVOG (256°) | IPVOG DAPEX (5mi, 305°) 2200ft |
| RNAV | DAPEX 2200ft OMAGI (6mi, 234°) 2100ft XORTO (2mi, 234°) 1410ft CYVV (2mi, 237°) 776ft VITOT (5mi, 233°) 3500ft VITOT (turn) |
