Airports for X-Plane

Slave Lake

Airport details

CountryCanada
StateAlberta
RegionCY
AirspaceEdmonton Ctr
MunicipalityTown of Slave Lake
Elevation1912ft (583m)
TimezoneGMT -7
Coordinates55.29306, -114.77722
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYZH
IATA codeYZH
FAA coden/a

Communication

Slave Lake AWOS127.000
Slave Lake Traffic123.200

Runway info

Runway 10 / 28
 length1699m (5574ft)
 bearing106° / 286°
 width30m (100ft)
 surfaceasphalt
 displ threshold0m (0ft) / 170m (558ft)

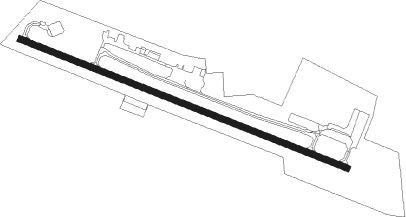

Airport layout


Taxiway locations

 A  B  C
Parking locations

 Can-West  Cargo  Fire  Forestry  GA  Grass  Helicopter  Main
 Slave

Nearby beacons

codeidentifierdistbearingfrequency
4OSWAN HILLS NDB43.3226°251
E3WABASCA NDB51.655°361

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10LOLDU (124°)LOLDU
SUVNU (5mi, 221°) 4000ft
RW10OVBUK (91°)OVBUK
SUVNU (5mi, 40°) 4000ft
 RNAVSUVNU 4000ft
PIKTO (6mi, 105°) 3600ft
CYZH (5mi, 105°) 1954ft
VIVEL (5mi, 106°) 5000ft
VIVEL (turn)
RW28OLUSO (271°)OLUSO
ROVKI (5mi, 220°) 3800ft
RW28VINGO (304°)VINGO
ROVKI (5mi, 40°) 3800ft
 RNAVROVKI 3800ft
HAGAT (6mi, 286°) 3500ft
CYZH (5mi, 286°) 1962ft
NOXIK (5mi, 285°) 5000ft
NOXIK (turn)
