Airports for X-Plane

Sept-Îles - Sept-iles

Airport details

CountryCanada
StateQuebec
RegionCY
AirspaceMontreal Ctr
MunicipalitySept-Îles
Elevation180ft (55m)
TimezoneGMT -5
Coordinates50.21702, -66.26740
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYZV
IATA codeYZV
FAA coden/a

Communication

Sept-Iles ATIS124.800
Sept-Iles CTR Montreal135.550
Sept-Iles RADIO118.100

Approach frequencies

ILS-cat-IRW09109.518.00mi
3° GSRW09109.518.00mi

Runway info

Runway 09 / 27
 length1997m (6552ft)
 bearing76° / 256°
 width46m (150ft)
 surfaceasphalt
 blast zone58m (190ft) / 0m (0ft)
Runway 13 / 31
 length1763m (5784ft)
 bearing102° / 282°
 width61m (200ft)
 surfaceasphalt

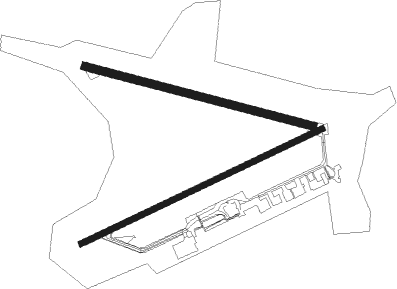

Airport layout


Taxiway locations

 A  B  C
Parking locations

 East  Gate  West

Nearby beacons

codeidentifierdistbearingfrequency
YZVSEPT-ILES VOR/DME0.9337°114.50

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09ETBAR (76°)ETBAR 3200ft
RW09IGSUK (89°)IGSUK
ETBAR (5mi, 149°) 3200ft
RW09VOKON (62°)VOKON
ETBAR (5mi, 329°) 3200ft
 RNAVETBAR 3200ft
DENEZ (9mi, 76°) 2000ft
XOXUM (4mi, 76°) 730ft
CYZV (2mi, 80°) 221ft
KODIB (12mi, 76°) 3300ft
KODIB (turn)
RW13NORAX (121°)NORAX
LETAS (5mi, 208°) 2600ft
RW13OMATI (90°)OMATI
LETAS (5mi, 28°) 2600ft
 RNAVLETAS 2600ft
PURIB (6mi, 102°) 2100ft
CYZV (6mi, 106°) 220ft
KEKNA (12mi, 101°) 3000ft
KEKNA (turn)
RW27LEPIM (270°)LEPIM
KODIB (5mi, 329°) 2300ft
RW27PUPUN (238°)PUPUN
KODIB (5mi, 149°) 2300ft
 RNAVKODIB 2300ft
MEGRI (6mi, 256°) 1900ft
CYZV (6mi, 255°) 224ft
AVODU (15mi, 256°) 3100ft
AVODU (turn)
RW31DEGLU (267°)DEGLU
KEKNA (5mi, 209°) 2500ft
RW31ITMOM (297°)ITMOM
KEKNA (5mi, 28°) 2500ft
 RNAVKEKNA 2500ft
LIBOT (6mi, 283°) 2000ft
MENRI (4mi, 283°) 700ft
CYZV (2mi, 271°) 224ft
LETAS (13mi, 284°) 4000ft
LETAS (turn)
