Airports for X-Plane

Sétif - 8 Mai 45

Airport details

CountryAlgeria
StateSetif
RegionDA
AirspaceAlgiers Ctr
MunicipalityAïn Arnat
Elevation3356ft (1023m)
TimezoneGMT +1
Coordinates36.18162, 5.33017
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeDAAS
IATA codeQSF
FAA coden/a

Communication

8 Mai 45 SETIF Ground Control121.900
8 Mai 45 SETIF Tower119.900

Approach frequencies

LOCRW27110.918.00mi

Runway info

Runway 09 / 27
 length2910m (9547ft)
 bearing87° / 267°
 width45m (148ft)
 surfaceasphalt
 displ threshold10m (33ft) / 18m (59ft)
 blast zone0m (0ft) / 87m (285ft)

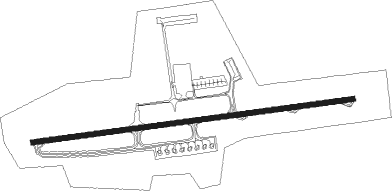

Airport layout


Taxiway locations

 A  B1  B2  C  D  F
Parking locations

 P1  P2  P3  P4  P5  P6  P7  P8

Nearby beacons

codeidentifierdistbearingfrequency
STFSETIF VOR/DME2263°114.60
BJABEJAIA VOR/DME34.2335°113
BJABEJAIA NDB34.3335°423
JILJIJEL VOR/DME45.442°117.90

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
