Altenburg - Leipzig-altenburg
Airport details
| Country | Germany |
| State | Thuringia |
| Region | ED |
| Airspace | Munich Ctr |
| Municipality | Nobitz |
| Elevation | 640ft (195m) |
| Timezone | GMT +1 |
| Coordinates | 50.98182, 12.50636 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | EDAC |
| IATA code | AOC |
| FAA code | n/a |
Communication
| Leipzig-Altenburg Altenburg Info | 123.575 |
Approach frequencies
| ILS-cat-I | RW22 | 108.7 | 18.00mi |
| 3.3° GS | RW22 | 108.7 | 18.00mi |
Nearby Points of Interest:
Kirche Kraschwitz
-Protestant Church
-Teehaus
-St. Nikolaus
-Dorfkirche Gnandstein
-Dorfkirche Eschefeld
-Dorfkirche Frohnsdorf
-Saint Catherine Church
-Saint Nicholas Church
-Dorfkirche Großmecka
-Protestant Church (Gieba)
-Amtsgericht Frohburg
-Schloss Frohburg
-Dorfkirche Gerstenberg
-Zumroda church
-Protestant Church (Flemmingen)
-Dorfkirche Jauern
-Dorfkirche Altkirchen
-Dorfkirche Maltis
-Kirche Mehna
-St. Matthäus (Romschütz)
-Kirche Großstöbnitz
-Kirche Gödern

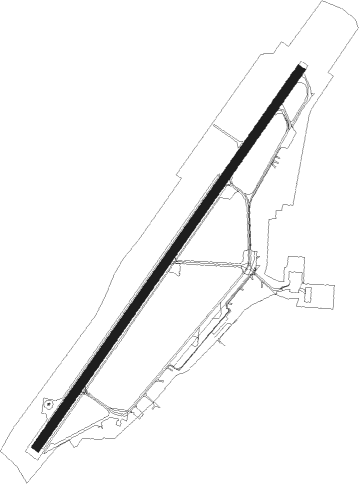

Runway info
| Runway 04 / 22 | ||
| length | 2432m (7979ft) | |
| bearing | 53° / 233° | |
| width | 45m (148ft) | |
| surface | asphalt | |
| displ threshold | 260m (853ft) / 500m (1640ft) | |
| blast zone | 62m (203ft) / 0m (0ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| AGD | DME | 0.2 | 82° | 115.30 |
| ABU | ALTENBURG NDB | 0.9 | 51° | 330 |
| LEG | LEIPZIG VOR/DME | 27.3 | 356° | 115.85 |
| SKZ | SCHKEUDITZ (LEIPZIG-HALLE) NDB | 27.4 | 332° | 357 |
| LLD | SOUTH(LEIPZIG- DME | 28 | 327° | 112.15 |
| ZIG | LEIPZIG NDB | 28.4 | 333° | 340 |
| LND | NORTH(LEIPZIG- DME | 29.1 | 328° | 113.50 |
| GOT | GOTEM VOR/DME | 40.5 | 292° | 115.25 |
| L | VRATA (KARLOVY VARY) NDB | 50 | 151° | 365 |
| HOZ | HOLZDORF NDB | 52.2 | 37° | 406 |
| HOZ | HOLZDORF TACAN | 53.8 | 41° | 117.25 |
| OKG | CHEB VOR/DME | 55.1 | 186° | 115.70 |
| BAY | BAYREUTH VOR | 68.4 | 221° | 110.60 |
Departure and arrival routes
| Transition altitude | 5000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW04 | |||
| EKPE1A | 31mi | 91° | |
| GOLA1A, GOLA1G | 22mi | 263° | |
| OSKA1G, OSKA1A | 33mi | 309° | |
| RW22 | |||
| EKPE1B, EKPE8H | 31mi | 91° | |
| GOLA1B, GOLA7H | 22mi | 263° | |
| OSKA1B, OSKA3H | 33mi | 309° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| GOLA1V, GOLA6T | 21.9 | 83° | |
| SULE1V, SULE4T | 15.0 | 123° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW04 | ABU (231°) | ABU 5000ft AC420 (16mi, 248°) 5000ft AC430 (5mi, 117°) 4000ft |
| RNAV | AC430 4000ft MOTAB (4mi, 52°) 4000ft EDAC (11mi, 52°) 689ft AC422 (5mi, 53°) ABU (4mi, 233°) 5000ft ABU (turn) 5000ft | |
| RW22 | ABU (231°) | ABU 5000ft AC429 (14mi, 28°) 5000ft AC439 (5mi, 117°) 4000ft |
| RNAV | AC439 4000ft LASID (4mi, 233°) 4000ft EDAC (10mi, 233°) 655ft AC427 (5mi, 232°) ABU (6mi, 52°) 5000ft ABU (turn) 5000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| BEBE1V | ABU | FIX | right | 126 (306)° | > 5000ft | 1.0min timed | ICAO rules |
| BEBE2T | ABU | FIX | right | 126 (306)° | > 5000ft | 1.0min timed | ICAO rules |
| GOLA1V | ABU | FIX | right | 126 (306)° | > 5000ft | 1.0min timed | ICAO rules |
| GOLA6T | ABU | FIX | right | 126 (306)° | > 5000ft | 1.0min timed | ICAO rules |
| SULE1V | ABU | FIX | right | 126 (306)° | > 5000ft | 1.0min timed | ICAO rules |
| SULE4T | ABU | FIX | right | 126 (306)° | > 5000ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
