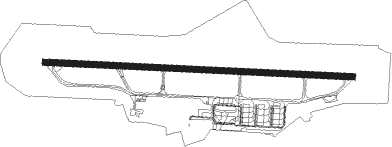

Erfurt - Erfurt-weimar
Airport details
| Country | Germany |
| State | Thuringia |
| Region | ED |
| Airspace | Munich Ctr |
| Municipality | Erfurt |
| Elevation | 1036ft (316m) |
| Timezone | GMT +1 |
| Coordinates | 50.97865, 10.95356 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | EDDE |
| IATA code | ERF |
| FAA code | n/a |
Communication
| Erfurt-Weimar Erfurt ATIS | 133.450 |
| Erfurt-Weimar Erfurt Apron | 121.900 |
| Erfurt-Weimar Erfurt Ground | 121.750 |
| Erfurt-Weimar Erfurt Tower | 121.150 |
| Erfurt-Weimar Muenchen Radar | 126.175 |
Approach frequencies
| ILS-cat-III | RW27 | 109.9 | 18.00mi |
| ILS-cat-I | RW09 | 108.3 | 18.00mi |
| 3° GS | RW09 | 108.3 | 18.00mi |
| 3° GS | RW27 | 109.9 | 18.00mi |
Nearby Points of Interest:
Moritzhof
-Haus zum Turnier
-Haus Vaterland
-Erfurt Treasure
-Kurmainzische Statthalterei Erfurt
-St. Viti (Gispersleben)
-Hauptpostamt Erfurt
-Hochhaus des Thüringer Landtags
-Saint Wigbert Church (Sülzenbrücken)
-St. Peter and Paul
-Schloss Marienburg
-St. Laurentius (Gebesee)
-Villa Deinhardt
-Schloss Mönchhof Siebleben
-Protestant Church
-Sankt-Petri-Kirche
-Sankt-Viti-Kirche Wechmar
-Dorfkirche Elleben
-Zwei-Welten-Säule
-Reyherschule
-Volkshaus zum Mohren, Gotha
-Prinzenpalais
-Kavaliershaus (Gotha)
-Winterpalais (Gotha)
-St. Vitus
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| EFD | DME | 0.2 | 46° | 112.05 |
| ERF | ERFURT VOR/DME | 10.8 | 96° | 113.85 |
| GOT | GOTEM VOR/DME | 32.6 | 60° | 115.25 |
| CB | COCHSTEDT NDB | 56.1 | 29° | 344 |
| BAY | BAYREUTH VOR | 65.1 | 145° | 110.60 |
Departure and arrival routes
| Transition altitude | 5000ft |
| Transition level | 50ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW09 | |||
| LAST1C | 11mi | 46° | |
| ERF1A | 11mi | 96° | |
| NEVK1C | 15mi | 109° | |
| ERSI1C | 26mi | 276° | |
| RW27 | |||
| LAST1D | 11mi | 46° | |
| ERF1B | 11mi | 96° | |
| NEVK1D | 15mi | 109° | |
| PILA1D | 34mi | 204° | |
| ERSI1D | 26mi | 276° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW09 | |||
| ROBE1R | 20.2 | 81° | |
| RELK1R | 20.6 | 261° | |
| NARU1R | 20.5 | 324° | |
| RW27 | |||
| ROBE1V | 20.2 | 81° | |
| RELK1V | 20.6 | 261° | |
| NARU1V | 20.5 | 324° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW09 | ERF (276°) | ERF 5000ft DE422 (17mi, 287°) DE421 (4mi, 274°) DE420 (4mi, 274°) 5000ft DE430 (5mi, 191°) 4000ft |
| RNAV | DE430 4000ft BULEM (4mi, 94°) 4000ft EDDE (10mi, 95°) 1073ft (3112mi, 192°) 1500ft ERF (3113mi, 12°) DE437 (5mi, 92°) ERF (5mi, 272°) 5000ft | |
| RW27 | ERF (276°) | ERF 5000ft DE427 (5mi, 12°) DE428 (5mi, 95°) 5000ft DE437 (5mi, 192°) 4000ft |
| RNAV | DE437 4000ft ENORO (6mi, 275°) 4000ft EDDE (10mi, 274°) 1064ft (3112mi, 192°) 1500ft DE491 (3112mi, 12°) DE285 (8mi, 19°) ERF (16mi, 116°) 5000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| NARU1R | NARUS | VHF | right | 184 (4)° | > 5000ft | 1.0min timed | 230 |
| NARU1V | NARUS | VHF | right | 184 (4)° | > 5000ft | 1.0min timed | 230 |
| RELK1R | RELKO | VHF | right | 52 (232)° | > 5000ft | 1.0min timed | 230 |
| RELK1V | RELKO | VHF | right | 52 (232)° | > 5000ft | 1.0min timed | 230 |
| ROBE1R | ROBEL | VHF | right | 261 (81)° | > 5000ft | 1.0min timed | 230 |
| ROBE1V | ROBEL | VHF | right | 261 (81)° | > 5000ft | 1.0min timed | 230 |
| *) magnetic outbound (inbound) holding course | |||||||
