Airports for X-Plane

Hahn - Frankfurt-hahn

Airport details

CountryGermany
StateRhineland-Palatinate
RegionED
AirspaceLangen Ctr
MunicipalityLautzenhausen
Elevation1645ft (501m)
TimezoneGMT +1
Coordinates49.93506, 7.25865
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEDFH
IATA codeHHN
FAA coden/a

Communication

Frankfurt-Hahn ATIS136.355
Frankfurt-Hahn Ground Control121.980
Frankfurt-Hahn Tower120.905
Frankfurt-Hahn Tower119.655
Frankfurt-Hahn LANGEN RADAR125.600

Approach frequencies

ILS-cat-IIIRW21111.318.00mi
ILS-cat-IRW03109.318.00mi
3° GSRW03109.318.00mi
3° GSRW21111.318.00mi

Runway info

Runway 03 / 21
 length3801m (12470ft)
 bearing45° / 225°
 width45m (148ft)
 surfaceasphalt
 displ threshold301m (988ft) / 303m (994ft)

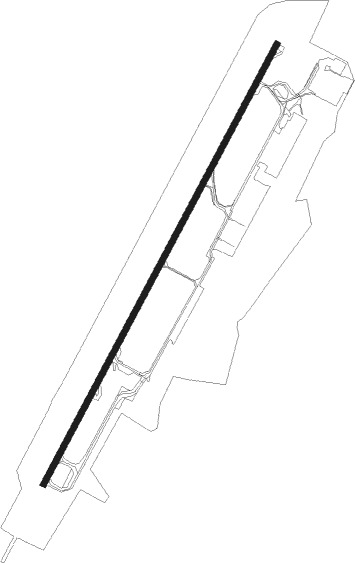

Airport layout


Taxiway locations

 A  B1  C  D  E  F  M
Parking locations

 Cargo  GA  Gate

Nearby beacons

codeidentifierdistbearingfrequency
FHHDME0.416°117.35
HANHAHN NDB1.937°376
BUEBUECHEL TACAN16.3322°117.10
SPASPANGDAHLEM TACAN21.8274°109.50
RMSRAMSTEIN TACAN32.6147°113.40
ELULUXEMBOURG NDB38.2254°368
TAUTAUNUS VOR/DME39.671°113.35
ZWNZWEIBRUECKEN VOR/DME42.8167°114.80
SRENSHEIM (SAARBRUECKEN) NDB43.1183°360
SADDME43.7191°116.75
LVCOLOGNE-BONN NDB52.2359°327
COLCOLA VOR/DME52.522°108.80
KBOCOLOGNE-BONN VOR/DME55.8353°112.15
SILSIEGERLAND NDB5650°489
SLDDME5647°108.05
LWCOLOGNE-BONN NDB57.8360°300
NVONOERVENICH VORTAC58.3325°116.20
WNNDME58.5327°109.85
LJCOLOGNE-BONN NDB60349°365
GTQGROSTENQUIN VOR/DME60.7210°111.25
LOULORRAINE NDB68.1227°388

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW03
 ULKI1T, ULKI1E18mi98°
 GEBD5E64mi129°
 IDAR8E, IDAR4T18mi233°
 RUDO1E, RUDO1T14mi279°
 NVO3G58mi325°
RW21
 ULKI1L, ULKI1S18mi98°
 OLIV3S16mi114°
 GEBD5L64mi129°
 IDAR4Y, IDAR9L18mi233°
 RUDO1L, RUDO1S, RUDO1Y14mi279°
 NVO3S58mi325°

STAR starting pointsdistanceinbound heading
ALL
 ROPU4R23.3125°
 EMGO4R15.9195°
 OLIV3R16.4294°
RW03
 ROPU3K23.3125°
 EMGO3K15.9195°
 OLGI3K, OLGI1J18.6264°
 OLIV1J, OLIV3K16.4294°
RW21
 ROPU3A23.3125°
 ROLI3A37.1229°
 OLGI3B, OLGI3A18.6264°
 OLIV3A, OLIV3B16.4294°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03FH415 (45°)FH415 6000ft
FH414 (4mi, 44°) 5000ft
RW03HAN (217°)HAN 5000ft
FH010 (11mi, 249°)
FH012 (7mi, 224°)
FH414 (5mi, 112°) 5000ft
 RNAVFH414 5000ft
RINIR (4mi, 44°) 5000ft
EDFH (11mi, 46°) 1688ft
(3022mi, 188°) 4000ft
HAN (3024mi, 8°) 5000ft
RW21FH506 (224°)FH506 6000ft
FH515 (4mi, 225°) 5000ft
RW21HAN (217°)HAN 5000ft
FH502 (7mi, 338°)
FH031 (9mi, 45°)
FH515 (5mi, 112°) 5000ft
 RNAVFH515 5000ft
RALUV (4mi, 225°) 5000ft
EDFH (12mi, 223°) 1645ft
FH076 (10mi, 227°)
FH507 (12mi, 347°)
HAN (9mi, 96°) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
EMGO3KFH415VHFleft211 (31)°6000ft - 14000ft1.0min timed220
EMGO4RHANVHFleft300 (120)°5000ft - 14000ft1.0min timed230
OLGI1JFH415VHFleft211 (31)°6000ft - 14000ft1.0min timed220
OLGI3AFH515VHFright31 (211)°5000ft - 14000ft1.0min timed220
OLGI3BFH515VHFright31 (211)°5000ft - 14000ft1.0min timed220
OLGI3KFH415VHFleft211 (31)°6000ft - 14000ft1.0min timed220
OLIV1JFH415VHFleft211 (31)°6000ft - 14000ft1.0min timed220
OLIV3AFH515VHFright31 (211)°5000ft - 14000ft1.0min timed220
OLIV3BFH515VHFright31 (211)°5000ft - 14000ft1.0min timed220
OLIV3KFH415VHFleft211 (31)°6000ft - 14000ft1.0min timed220
OLIV3RHANVHFleft300 (120)°5000ft - 14000ft1.0min timed230
ROLI3AFH515VHFright31 (211)°5000ft - 14000ft1.0min timed220
ROPU3AFH515VHFright31 (211)°5000ft - 14000ft1.0min timed220
ROPU3KFH415VHFleft211 (31)°6000ft - 14000ft1.0min timed220
ROPU4RHANVHFleft300 (120)°5000ft - 14000ft1.0min timed230
SIPV2RHANVHFleft300 (120)°5000ft - 14000ft1.0min timed230
*) magnetic outbound (inbound) holding course
