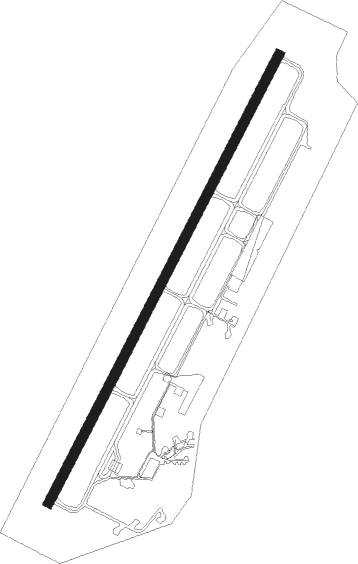

Baden-baden - Karlsruhe Baden-baden
Airport details
| Country | Germany |
| State | Baden-Württemberg |
| Region | ED |
| Airspace | Langen Ctr |
| Municipality | Rheinmünster |
| Elevation | 395ft (120m) |
| Timezone | GMT +1 |
| Coordinates | 48.77124, 8.07750 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | EDSB |
| IATA code | FKB |
| FAA code | n/a |
Communication
| Karlsruhe Baden-Baden Baden ATIS | 121.280 |
| Karlsruhe Baden-Baden Baden Ground | 121.830 |
| Karlsruhe Baden-Baden Baden Tower | 134.105 |
| Karlsruhe Baden-Baden Strasbourg Approach | 119.580 |
Approach frequencies
| ILS-cat-III | RW21 | 108.75 | 18.00mi |
| ILS-cat-I | RW03 | 109.95 | 18.00mi |
| 3° GS | RW03 | 109.95 | 18.00mi |
| 3° GS | RW21 | 108.75 | 18.00mi |
Nearby Points of Interest:
banc-reposoir de Rœschwoog
-Alter Bahnhof
-Baden-Baden
-Jewish cemetery of Niederroedern
-Bühlerhöhe
-Amtsgericht Gernsbach
-Jakobskirche Gernsbach
-Basilique Notre-Dame de Marienthal
-Hôtel de Koenigsbruck
-Maison à la Cour verte
-Hôtel du Commandant de la Place
-Ancienne Douane (Haguenau)
-Hôpital civil of Haguenau
-Colonne de la forêt de Weitbruch
-Hôtel Barth Haguenau
-Ancien Hôtel du bailli Hoffmann
-moulin à huile de La Wantzenau
-Grenier de l'Hôpital
-Monastery Surbourg
-Ferme, 26 rue de la République (Hœrdt)
-Ancienne maison Muntz
-Town hall of Lauterbourg
-Upper Rhine
-Banc-reposoir de Kutzenhausen
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| KBD | DME | 0.6 | 51° | 115.80 |
| KBA | KARLSRUHE/BADEN-BADEN NDB | 1.7 | 37° | 431 |
| SE | STRASBOURG NDB | 18 | 243° | 412 |
| KRH | KARLSRUHE VOR/DME | 24 | 66° | 115.95 |
| SAV | SAVERNE VOR/DME | 24.9 | 272° | 110.45 |
| STR | STRASBOURG ENTZHEIM VOR/DME | 25.6 | 242° | 115.60 |
| LRD | DME | 26.3 | 212° | 108.05 |
| LHR | LAHR NDB | 27.4 | 212° | 337 |
| SUL | SULZ VOR | 32.4 | 124° | 116.10 |
| PHG | PHALSBOURG NDB | 34.7 | 270° | 424 |
| ZWN | ZWEIBRUECKEN VOR/DME | 37.8 | 305° | 114.80 |
| NKR | NECKAR NDB | 42.6 | 49° | 292 |
| SR | ENSHEIM (SAARBRUECKEN) NDB | 43.1 | 297° | 360 |
| RMS | RAMSTEIN TACAN | 44.2 | 323° | 113.40 |
| MND | DME | 45.4 | 32° | 113.55 |
| SAD | DME | 46.2 | 295° | 116.75 |
| HO | COLMAR-HOUSSEN NDB | 47.6 | 228° | 380 |
Departure and arrival routes
| Transition altitude | 5000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW03 | |||
| GAGS5N, GAGS1Y | 18mi | 110° | |
| TUBL1Y, TUBL9N | 23mi | 132° | |
| RW21 | |||
| GAGS1Z, GAGS5P | 18mi | 110° | |
| TUBL1Z | 23mi | 132° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| LADA1L | 31.1 | 154° | |
| KRH1L, KRH4M | 24.0 | 246° | |
| SUL1L, SUL5M | 32.4 | 304° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW03 | KBA (217°) | KBA 6000ft SB420 (13mi, 194°) SB421 (5mi, 223°) 5000ft SB422 (5mi, 292°) 4000ft |
| RNAV | SB422 4000ft RENBO (4mi, 43°) 4000ft EDSB (11mi, 44°) 456ft SB430 (8mi, 42°) (2966mi, 189°) 5000ft KBA (2961mi, 9°) 6000ft | |
| RW21 | KBA (217°) | KBA 6000ft SB400 (9mi, 74°) SB401 (7mi, 43°) SB402 (5mi, 292°) 4000ft |
| RW21 | KRH (246°) | KRH 6000ft SB401 (8mi, 259°) SB402 (5mi, 292°) 4000ft |
| RNAV | SB402 4000ft BITSU (4mi, 224°) 4000ft EDSB (12mi, 222°) 455ft SB410 (6mi, 225°) (2953mi, 189°) 5000ft KBA (2961mi, 9°) 6000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| KRH1L | KBA | FIX | right | 210 (30)° | > 6000ft | 1.0min timed | ICAO rules |
| KRH4M | KBA | FIX | right | 210 (30)° | > 6000ft | 1.0min timed | ICAO rules |
| LADA1L | KBA | FIX | right | 210 (30)° | > 6000ft | 1.0min timed | ICAO rules |
| SUL1L | KBA | FIX | right | 210 (30)° | > 6000ft | 1.0min timed | ICAO rules |
| SUL5M | KBA | FIX | right | 210 (30)° | > 6000ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
