Schwäbisch Hall
Airport details
| Country | Germany |
| State | Baden-Württemberg |
| Region | ED |
| Airspace | Langen Ctr |
| Municipality | Schwäbisch Hall |
| Elevation | 1289ft (393m) |
| Timezone | GMT +1 |
| Coordinates | 49.11832, 9.78396 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | EDTY |
| IATA code | n/a |
| FAA code | n/a |
Communication
| Schwäbisch Hall Schwäbisch Hall ATIS | 133.880 |
| Schwäbisch Hall Schwäbisch Hall Info | 129.230 |
| Schwäbisch Hall Schwäbisch Hall Deicing | 121.755 |
| Schwäbisch Hall Langen Radar | 125.050 |
Approach frequencies
| ILS-cat-I | RW28 | 111.5 | 18.00mi |
| 3° GS | RW28 | 111.5 | 18.00mi |
Nearby Points of Interest:
Am Markt 9 (Schwäbisch Hall)
-Kreissparkasse (Schwäbisch Hall)
-Schloss Tullau
-St. Martin
-Herrenmühle (Obersontheim)
-Bildstock mit Pietà (Amrichshausen)
-Heilig-Geist-Spital
-Castra of Murrhardt
-Kloster Murrhardt
-Jüdischer Friedhof Crailsheim
-Spital Öhringen
-Haller Straße 3
-Villa Franck
-Gasthaus zum Adler
-Gasthaus zum Ochsen (Eschenau)
-Bildstock 1625 (Sindeldorf)
-Dreifaltigkeitskirche Meßbach
-Dreifaltigkeitsbildstock (Meßbach)
-Oberes Schloss
-Jüdischer Friedhof
-Rathaus Wettringen
-Pfarrhaus Wettringen (Mittelfranken)
-Schloss Backnang
-Backnanger Stadthaus
-Kirche Lindach

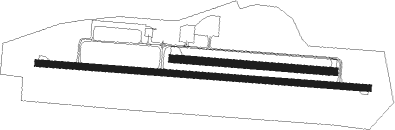

Runway info
Runway 10L / 28R  | ||
| length | 753m (2470ft) | |
| bearing | 96° / 276° | |
| width | 35m (115ft) | |
| surface | grass | |
| displ threshold | 0m (0ft) / 104m (341ft) | |
| Runway 10 / 28 | ||
| length | 1536m (5039ft) | |
| bearing | 96° / 276° | |
| width | 30m (98ft) | |
| surface | concrete | |
| displ threshold | 175m (574ft) / 126m (413ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| SHD | HALL DME | 0.2 | 252° | 108.05 |
| DKB | DINKELSBUEHL VORTAC | 17.9 | 87° | 117.80 |
| NDD | DME-ILS | 17.9 | 33° | 108.70 |
| NSN | NIEDERSTETTEN NDB | 18 | 33° | 311 |
| LBU | LUBURG VOR/DME | 21.3 | 245° | 109.20 |
| ILM | ILLESHEIM NDB | 31.8 | 60° | 488 |
| STG | STUTTGART VOR/DME | 32.7 | 231° | 116.85 |
| SGD | DME | 34 | 232° | 115.45 |
| ANS | ANSBACH NDB | 35.1 | 77° | 452 |
| TGO | TANGO TACAN | 36.4 | 226° | 112.50 |
| LUP | LAUPHEIM NDB | 54.2 | 172° | 407 |
| CHA | CHARLIE VOR/DME | 56.2 | 317° | 115.35 |
Departure and arrival routes
| Transition altitude | 5000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW10 | |||
| DKB5Z | 18mi | 87° | |
| TAGI2Z | 33mi | 275° | |
| RW28 | |||
| DKB4X, DKB5Y | 18mi | 87° | |
| TAGI1Y | 33mi | 275° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW10 | DKB (267°) | DKB 5000ft TY010 (33mi, 276°) TY011 (4mi, 193°) 5000ft |
| RNAV | TY011 5000ft ASGAL (3mi, 96°) 5000ft EDTY (12mi, 96°) 1361ft (2993mi, 191°) 1720ft TY012 (2994mi, 12°) 4000ft TY013 (turn) DKB (9mi, 77°) 5000ft | |
| RW28 | DKB (267°) | DKB 5000ft TY020 (5mi, 228°) 5000ft |
| RNAV | TY020 5000ft ESUVA (3mi, 276°) 5000ft EDTY (12mi, 276°) 1348ft (2993mi, 191°) 1720ft TY021 (2993mi, 11°) (2993mi, 191°) 4000ft TY022 (2995mi, 11°) DKB (23mi, 93°) 5000ft |
