Country | Finland |
State | Eastern Finland |
Region | EF |
Airspace | Helsinki Ctr |
Municipality | Savonlinna |
Elevation | 311ft (95m) |
Timezone | GMT +2 |
Coordinates | 61.94278, 28.94500 |
Magnetic var | |
Type | land |
Available since | X-Plane v10.40 |
ICAO code | EFSA |
IATA code | SVL |
FAA code | n/a |
Savonlinna AFIS | 118.800 |
Savonlinna AFIS | 119.700 |
ILS-cat-I | RW12 | 111.1 | 18.00mi |
3° GS | RW12 | 111.1 | 18.00mi |

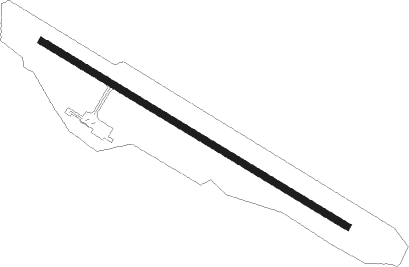

Runway 12 / 30 | ||
length | 2293m (7523ft) | |
bearing | 109° / 289° | |
width | 45m (148ft) | |
surface | asphalt |
code | identifier | dist | bearing | frequency |
---|---|---|---|---|
SVL | DME | 1 | 288° | 117.90 |
JNS | DME | 46.9 | 43° | 115.70 |
VIL | DME | 59.2 | 222° | 112.50 |
Transition altitude | 5000ft |
STAR starting points | distance | inbound heading | |
---|---|---|---|
RW12 | |||
RIVU3A | 16.7 | 19° | |
ABMA3A | 15.0 | 50° | |
ASPE3A | 15.8 | 211° | |
RW30 | |||
RIVU3B | 16.7 | 19° | |
ABMA3B | 15.0 | 50° | |
ASPE3B | 15.8 | 211° |
runway | airway (heading) | route (dist, bearing) |
---|---|---|
RW12 | GOBIP (109°) | GOBIP 2400ft |
RW12 | LASVI (132°) | LASVI 2400ft GOBIP (5mi, 237°) 2400ft |
RW12 | RESRI (94°) | RESRI 2400ft GOBIP (5mi, 56°) 2400ft |
RNAV | GOBIP 2400ft EKTAT (5mi, 109°) 1900ft EFSA (5mi, 109°) 362ft UGLOS (10mi, 109°) 2400ft | |
RW30 | NASAX (313°) | NASAX 2400ft UGLOS (5mi, 57°) 2400ft |
RW30 | RISNU (274°) | RISNU 2400ft UGLOS (5mi, 237°) 2400ft |
RW30 | UGLOS (289°) | UGLOS 2400ft |
RNAV | UGLOS 2400ft NEVOV (5mi, 289°) 1700ft EFSA (5mi, 289°) 340ft GOBIP (10mi, 289°) 2400ft |
STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
---|---|---|---|---|---|---|---|
ABMA3A | GOBIP | VHF | left | 294 (114)° | > 2400ft | 1.0min timed | 230 |
ABMA3B | UGLOS | VHF | right | 114 (294)° | > 2400ft | 1.0min timed | 230 |
ASPE3A | GOBIP | VHF | left | 294 (114)° | > 2400ft | 1.0min timed | 230 |
ASPE3B | UGLOS | VHF | right | 114 (294)° | > 2400ft | 1.0min timed | 230 |
RIVU3A | GOBIP | VHF | left | 294 (114)° | > 2400ft | 1.0min timed | 230 |
RIVU3B | UGLOS | VHF | right | 114 (294)° | > 2400ft | 1.0min timed | 230 |
*) magnetic outbound (inbound) holding course |
