Airports for X-Plane

Utti / Valkeala - Utti

Airport details

CountryFinland
StateSouthern Finland
RegionEF
AirspaceHelsinki Ctr
MunicipalityKouvola
Elevation337ft (103m)
TimezoneGMT +2
Coordinates60.89946, 26.92360
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEFUT
IATA codeUTI
FAA coden/a

Communication

Utti Tower130.800
Utti Tower119.700

Approach frequencies

ILS-cat-IRW25110.518.00mi
3.5° GSRW25110.518.00mi
Nearby Points of Interest:
Kaipiainen railway station
-
Koria railway bridge
-
Huruksela

Runway info

Runway 07 / 25
 length1960m (6430ft)
 bearing84° / 264°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 145m (476ft)

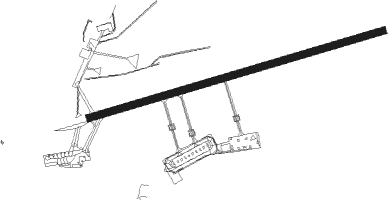

Airport layout


Parking locations

 CIV-E2  CIV-E3  CIV-E4  CIV-E5  CIV-E6  CIV-E7  CIV-E8  MIL-A1
 MIL-A10  MIL-A11  MIL-A12  MIL-A13  MIL-A2  MIL-A3  MIL-A4  MIL-A5
 MIL-A6  MIL-A7  MIL-B10  MIL-B11  MIL-B12  MIL-B13  MIL-B14  MIL-B15
 MIL-B6  MIL-B7  MIL-B8  MIL-B9  MIL-D1  MIL-D10  MIL-D11  MIL-D12
 MIL-D2  MIL-D3  MIL-D4  MIL-D5  MIL-D6  MIL-D7  MIL-D8  MIL-D9

Nearby beacons

codeidentifierdistbearingfrequency
UTTUTTI VOR/DME0.2110°114.60
SSIERRA (MIKKELI) NDB47.524°374
MMIKE (MIKKELI) NDB48.316°336
MIMIKE-INDIA (MIKKELI) NDB4910°346

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW07
 OTKA1L17mi69°
 ARLO1L25mi98°
 VEPI1L24mi246°
 NAXE1L12mi283°
RW25
 OTKA1N17mi69°
 ARLO1N25mi98°
 VEPI1N24mi246°
 NAXE1N12mi283°

STAR starting pointsdistanceinbound heading
RW07
 VEHU1E25.181°
 NAXE1E12.2103°
 OTKA1E17.3249°
 ARLO1E24.5278°
RW25
 VEHU1M25.181°
 NAXE1M12.2103°
 OTKA1M17.3249°
 ARLO1M24.5278°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07ATVAP (68°)ATVAP 2300ft
ULNAV (5mi, 336°) 2300ft
RW07ULNAV (83°)ULNAV 2300ft
RW07USIMI (96°)USIMI 2300ft
ULNAV (5mi, 156°) 2300ft
 RNAVULNAV 2300ft
XUBMO (5mi, 84°) 2300ft
EFUT (5mi, 83°) 379ft
RURET (10mi, 85°) 2300ft
RW25AMGUX (278°)AMGUX 2300ft
RURET (5mi, 337°) 2300ft
RW25EPATU (250°)EPATU 2300ft
RURET (5mi, 157°) 2300ft
RW25RURET (265°)RURET 2300ft
 RNAVRURET 2300ft
DIVNU (4mi, 264°) 2100ft
EFUT (5mi, 266°) 401ft
ULNAV (10mi, 263°) 2300ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARLO1EULNAVVHFright158 (338)°> 2300ft1.0min timed230
ARLO1MRURETVHFright158 (338)°> 2300ft1.0min timed230
NAXE1EULNAVVHFright158 (338)°> 2300ft1.0min timed230
NAXE1MRURETVHFright158 (338)°> 2300ft1.0min timed230
OTKA1EULNAVVHFright158 (338)°> 2300ft1.0min timed230
OTKA1MRURETVHFright158 (338)°> 2300ft1.0min timed230
VEHU1EULNAVVHFright158 (338)°> 2300ft1.0min timed230
VEHU1MRURETVHFright158 (338)°> 2300ft1.0min timed230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
