Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

capital city asphalt passenger drome plane frankfurt airport military jet downtown public transport flight attendant airdrome airbus landing stolport aerodrome aerodromes rail tarmac

Airports for X-Plane

Vaasa

Airport details

CountryFinland
StateWestern Finland
RegionEF
AirspaceHelsinki Ctr
MunicipalityVaasa
Elevation19ft (6m)
TimezoneGMT +2
Coordinates63.04528, 21.76417
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEFVA
IATA codeVAA
FAA coden/a

Communication

Vaasa ATIS136.450
Vaasa Tower119.700
Vaasa Tower120.950
Vaasa Approach125.850
Vaasa Departure125.850

Approach frequencies

ILS-cat-IRW16108.518.00mi
3° GSRW16108.518.00mi

Runway info

Runway 16 / 34
 length2488m (8163ft)
 bearing146° / 326°
 width48m (157ft)
 surfaceasphalt
 blast zone0m (0ft) / 200m (656ft)

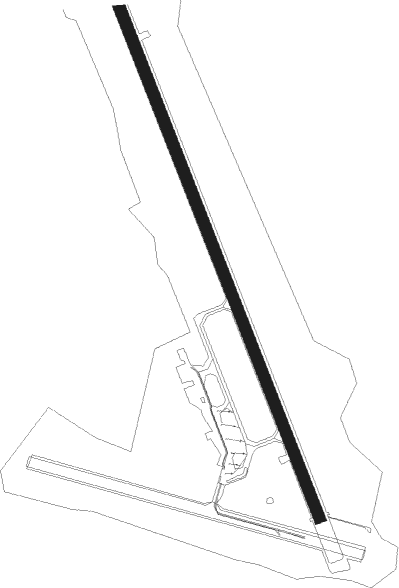

Airport layout


Taxiway locations

 A  B
Parking locations

 Cargo  GA  Gate

Nearby beacons

codeidentifierdistbearingfrequency
VASVAASA VOR/DME0.2170°114.50

Departure and arrival routes

Transition altitude5000ft
STAR starting pointsdistanceinbound heading
RW16
 SUBU3D23.748°
 BUPE3D21.464°
 AXUT3D21.177°
 UVAT2D25.7122°
 RERB2D17.3249°
 GUBT4D26.6312°
 BEGS3D25.7358°
RW34
 SUBU3F23.748°
 BUPE3F21.464°
 AXUT3F21.177°
 UVAT2F25.7122°
 RERB3F17.3249°
 GUBT3F26.6312°
 BEGS3F25.7358°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16ORVOP (197°)ORVOP 2300ft
ROXUD (5mi, 262°) 2300ft
RW16ROXUD (146°)ROXUD 2300ft
RW16XUROS (117°)XUROS 2300ft
ROXUD (5mi, 82°) 2300ft
 RNAVROXUD 2300ft
OSGID (5mi, 146°) 1700ft
EFVA (6mi, 147°) 72ft
TOTGU (10mi, 146°) 2300ft
RW34INREM (19°)INREM 2300ft
TOTGU (5mi, 82°) 2300ft
RW34NUBRO (296°)NUBRO 2300ft
TOTGU (5mi, 262°) 2300ft
RW34TOTGU (326°)TOTGU 2300ft
 RNAVTOTGU 2300ft
ERPOD (5mi, 327°) 1700ft
EFVA (5mi, 326°) 62ft
ROXUD (11mi, 326°) 2300ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AXUT3DROXUDVHFleft334 (154)°> 2300ft1.0min timed230
AXUT3FTOTGUVHFleft154 (334)°> 2300ft1.0min timed230
BEGS3DROXUDVHFleft334 (154)°> 2300ft1.0min timed230
BEGS3FTOTGUVHFleft154 (334)°> 2300ft1.0min timed230
BUPE3DROXUDVHFleft334 (154)°> 2300ft1.0min timed230
BUPE3FTOTGUVHFleft154 (334)°> 2300ft1.0min timed230
GUBT3FTOTGUVHFleft154 (334)°> 2300ft1.0min timed230
GUBT4DROXUDVHFleft334 (154)°> 2300ft1.0min timed230
RERB2DROXUDVHFleft334 (154)°> 2300ft1.0min timed230
RERB3FTOTGUVHFleft154 (334)°> 2300ft1.0min timed230
SUBU3DROXUDVHFleft334 (154)°> 2300ft1.0min timed230
SUBU3FTOTGUVHFleft154 (334)°> 2300ft1.0min timed230
UVAT2DROXUDVHFleft334 (154)°> 2300ft1.0min timed230
UVAT2FTOTGUVHFleft154 (334)°> 2300ft1.0min timed230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
