Airports for X-Plane

London - Raf Northolt

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityLondon
Elevation124ft (38m)
TimezoneGMT +0
Coordinates51.55539, -0.41791
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGWU
IATA codeNHT
FAA coden/a

Communication

RAF Northolt Northolt Information125.125
RAF Northolt Northolt Tower120.675
RAF Northolt Northolt Approach126.450
RAF Northolt Northolt Departures129.125

Approach frequencies

ILS-cat-IRW25108.518.00mi
3.5° GSRW25108.518.00mi
Nearby Points of Interest:
Down Barns Moated Site
-
Swakeleys House
-
Swan Inn
-
Highgrove House
-
Hillingdon Court
-
The Angel
-
Hillingdon House
-
Grosvenor Theatre
-
Regal Cinema
-
Hillingdon Civic Centre
-
Randalls of Uxbridge
-
Crown and Treaty
-
Queen's Head
-
Pinner House
-
Hills House, Denham
-
Denham Film Studios
-
The Hermitage
-
St Mary's Perivale
-
Wharncliffe Viaduct
-
Windmill Bridge
-
Heatherden Hall
-
Moor Park
-
Iver Grove
-
Seven Balls
-
Ealing Town Hall

Runway info

Runway 07 / 25
 length1678m (5505ft)
 bearing77° / 257°
 width42m (138ft)
 surfaceasphalt
 displ threshold92m (302ft) / 0m (0ft)

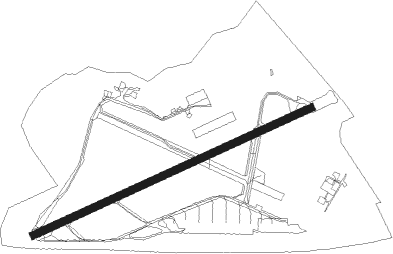

Airport layout


Taxiway locations

 A1  A2  B  B1  B2  C  D  D1
 D2  DA  E1  F  G
Parking locations

 Bay  Hangar  Stand

Nearby beacons

codeidentifierdistbearingfrequency
LONLONDON VOR/DME4.4216°113.60
CHTCHILTERN NDB5.5304°277
BURBURNHAM NDB9.9262°421
BNNBOVINGDON VOR/DME11.3322°113.75
EPMEPSOM NDB14.2169°316
OCKOCKHAM VOR/DME15187°115.30
BPKBROOKMANS PARK VOR/DME16.458°117.50
WODWOODLEY NDB18.2257°352
LCYLONDON CITY NDB18.396°322
HENHENTON NDB18.5299°433
BLCDME21.2241°116.20
BLKBLACKBUSHE NDB21.2241°328
LUTLUTON NDB21.226°345
BIGBIGGIN VOR/DME21.6116°115.10
LAMLAMBOURNE VOR/DME21.981°115.60
BSOBENSON TACAN25.6275°110
WCOWESTCOTT NDB27299°335
ODHODIHAM TACAN27.7239°109.60
CPTCOMPTON VOR/DME30.2265°114.35
MIDMIDHURST VOR/DME31.1202°114
BKYBARKWAY VOR/DME31.548°116.25
CITCRANFIELD NDB34.9346°850
OXOXFORD NDB37.6287°367
MAYMAYFIELD VOR/DME38135°117.90
DETDETLING VOR/DME40.9104°117.30
SNDSOUTHEND NDB41.789°362
SHMSHOREHAM NDB43.4170°332
SRHDME-ILS43.4170°109.95
GWCGOODWOOD VOR/DME43.9206°114.75
CAMCAMBRIDGE NDB45.243°332
DTYDAVENTRY VOR/DME45.5312°116.40
HLSDME46.7111°115.95
LSHHEADCORN (LASHENDEN) NDB46.7111°340
SAMSOUTHAMPTON VOR/DME50.1237°113.35
EASSOUTHAMPTON (EASTLEIGH) NDB50.4237°391
SFDSEAFORD VOR/DME51.8146°117
MLDMILDENHALL TACAN58.948°115.90
LYDLYDD VOR/DME59113°114.05
CLNCLACTON VOR/DME60.879°114.55
WTZWATTISHAM TACAN60.867°109.30
LKHLAKENHEATH TACAN62.349°110.20
LZDLYDD NDB62.3114°397
DVRDOVER VOR/DME70.6102°114.95

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW07
 MATC1X28mi71°
 DET4X41mi104°
 CPT5X30mi265°
 BUZA3X24mi341°
RW25
 MATC1Y28mi71°
 DET4Y41mi104°
 CPT4Y30mi265°
 BUZA1Y24mi341°

STAR starting pointsdistanceinbound heading
ALL
 OCK1Z15.07°
 ROXO1H88.742°
 HAZE1H39.246°
 OTME1H94.867°
 BEDE1H, BEDE1Z44.081°
 TOBI1X55.5122°
 HON1H66.6123°
 NUGR1H112.4128°
 BARM1H123.5253°
 LAM1Z, LAM1Y, LAM1X21.9261°
 LOGA2H76.5265°
 TANE1Z50.6275°
 ALES1H61.5300°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALES1HBIGNDBright122 (302)°7000ft - 14000ft1.0min timed220
ALES1HTIGERVHFright135 (315)°15000ft - 24000ft1.5min timedICAO rules
BARM1HBRASOVHFleft83 (263)°18000ft - 24000ft1.5min timed240
BARM1HLAMNDBleft83 (263)°> 7000ft1.0min timed220
BARM1HLOGANVHFleft108 (288)°15000ft - 41000ft1.5min timed240
BARM1HSABERVHFleft83 (263)°13000ft - 14000ft1.0min timed220
BEDE1HOCKNDBright148 (328)°> 7000ft1.0min timed220
BEDE1ZBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
BIG1ZOCKNDBright148 (328)°> 7000ft1.0min timed220
HAZE1HOCKNDBright148 (328)°> 7000ft1.0min timed220
HON1HBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
HON1HHONNDBright325 (145)°15000ft - 35000ft1.5min timed240
HON1HWCOFIXright8 (188)°9000ft - 14000ft1.0min timed220
LAM1XBIGNDBright122 (302)°7000ft - 14000ft1.0min timed220
LAM1YOCKNDBright148 (328)°> 7000ft1.0min timed220
LAM1ZBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
LOGA2HBRASOVHFleft83 (263)°18000ft - 24000ft1.5min timed240
LOGA2HLAMNDBleft83 (263)°> 7000ft1.0min timed220
LOGA2HLOGANVHFleft108 (288)°15000ft - 41000ft1.5min timed240
LOGA2HSABERVHFleft83 (263)°13000ft - 14000ft1.0min timed220
NUGR1HBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
NUGR1HWCOFIXright8 (188)°9000ft - 14000ft1.0min timed220
OCK1ZBIGNDBright122 (302)°7000ft - 14000ft1.0min timed220
OTME1HOCKNDBright148 (328)°> 7000ft1.0min timed220
ROXO1HOCKNDBright148 (328)°> 7000ft1.0min timed220
TANE1ZBIGNDBright122 (302)°7000ft - 14000ft1.0min timed220
TOBI1XOCKNDBright148 (328)°> 7000ft1.0min timed220
*) magnetic outbound (inbound) holding course
