Airports4XP | EIDW

Dublin

Airport details

Country	Ireland
State	County Dublin
Region	EI
Airspace	Shannon Ctr
Municipality	Fingal
Elevation	242ft (74m)
Timezone	GMT +0
Coordinates	53.42139, -6.27000
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	EIDW
IATA code	DUB
FAA code	n/a

Communication

Dublin Dublin Info	124.530
Dublin Delivery	122.985
Dublin Dublin Grd	121.800
Dublin Dublin Grd Nth	125.885
Dublin Dublin Twr Nth	124.680
Dublin Dublin Twr	118.600
Dublin Dublin App	119.930
Dublin Dublin App	121.100
Dublin Dublin App	119.555
Dublin Dublin App	133.280
Dublin Dublin Lwr Sth	126.250
Dublin Dublin Lwr Nth	132.580
Dublin Dublin Lwr Nth	124.650
Dublin Dublin Lwr Sth	120.755

Approach frequencies

ILS-cat-III	RW10R	108.9	18.00mi
ILS-cat-III	RW28L	111.35	18.00mi
ILS-cat-I	RW16	111.5	18.00mi
3° GS	RW16	111.5	18.00mi
3° GS	RW10R	108.9	18.00mi
3° GS	RW28L	111.35	18.00mi

Nearby Points of Interest:

St. Mary's Abbey, Dublin

Balrath Cross

Hill of Tara

Kilruddery House

St. Mark's Cross

Runway info

Runway 10R / 28L
	length	2629m (8625ft)
	bearing	93° / 273°
	width	45m (148ft)
	surface	asphalt
Runway 16 / 34
	length	2070m (6791ft)
	bearing	144° / 324°
	width	45m (148ft)
	surface	asphalt
	blast zone	7m (23ft) / 0m (0ft)
Runway 10L / 28R
	length	3112m (10210ft)
	bearing	93° / 273°
	width	45m (148ft)
	surface	concrete
	displ threshold	280m (919ft) / 450m (1476ft)
	blast zone	30m (98ft) / 30m (98ft)

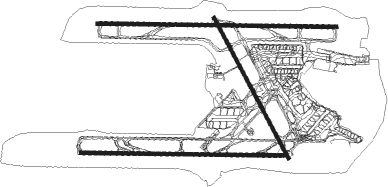

Airport layout

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
DAP	COLLINSTOWN VOR/DME	1.1	274°	111.20
OP	DUBLIN NDB	4.7	93°	397
DUB	DUBLIN VOR/DME	4.8	335°	114.90
OE	DUBLIN NDB	5.7	273°	316
BAL	BALDONNEL VOR/DME	9.6	236°	115.80
KLY	KILLINEY NDB	10.8	133°	378
GMN	DME	13.5	9°	112.90
GMN	GORMANSTON NDB	13.7	11°	334
GTG	DME	34.4	168°	114.15
MCM	DME	36.9	308°	114.40

Departure and arrival routes

Transition altitude

5000ft

SID end points		distance	outbound heading
RW10R
	ROTE6F, ROTE6E	37mi	19°
	LIFY2E, KISH3F	28mi	86°
	DEXE2E	29mi	100°
	PESI2E, ABID2F	64mi	153°
	BEPA2F, BEPA2E	54mi	180°
	OLON2E, OLON2F	46mi	216°
	INKU6F, INKU6E	41mi	279°
	SURO6E, SURO6F	43mi	308°
	BAML6F	45mi	332°
	NEVR6F, NEVR6E	39mi	360°
RW16
	ROTE7M, ROTE5P	37mi	19°
	LIFY7M, KISH2P	28mi	86°
	DEXE3M	29mi	100°
	PESI3M, ABID2P	64mi	153°
	BEPA3M, BEPA2P	54mi	180°
	OLON3M, OLON2P	46mi	216°
	PELI7M	40mi	258°
	INKU7M, INKU5P	41mi	279°
	SURO5P, SURO7M	43mi	308°
	BAML5P	45mi	332°
	NEVR7M, NEVR5P	39mi	360°
RW28L
	ROTE1B, ROTE1A	37mi	19°
	LIFY6A, KISH2B	28mi	86°
	DEXE1A	29mi	100°
	PESI5A, ABID1B	64mi	153°
	BEPA5A, BEPA1B	54mi	180°
	OLON1B, OLON5A	46mi	216°
	PELI5A	40mi	258°
	INKU5B, INKU5A	41mi	279°
	SURO1B, SURO1A	43mi	308°
	BAML1B	45mi	332°
	NEVR1B, NEVR1A	39mi	360°
RW34
	ROTE1H, ROTE1G	37mi	19°
	LIFY6G, KISH2H	28mi	86°
	ABID1H, PESI5G	64mi	153°
	BEPA5G, BEPA5H	54mi	180°
	OLON5G, OLON5H	46mi	216°
	PELI5H, PELI5G	40mi	258°
	INKU1G	41mi	279°
	SURO1H, SURO1G	43mi	308°
	BAML1H	45mi	332°
	NEVR1H, NEVR1G	39mi	360°

STAR starting points		distance	inbound heading
RW10R
	BUNE1Z, BUNE1R	49.6	24°
	SUTE1Z, SUTE1R	43.0	48°
	OSGA1Z, OSGA1R	42.3	70°
	OLAP1R, OLAP1Z	42.4	109°
	BAML1R, BAML1Z	45.2	152°
	NIMA1R, NIMA1Z	37.6	224°
	BOYN1Z, BOYN1R	34.4	246°
	BAGS1R, BAGS1Z	31.5	251°
	LIPG1Z, LIPG1R	35.0	295°
	VATR1Z, VATR1R	59.0	318°
RW16
	BUNE5U	49.6	24°
	SUTE5U	43.0	48°
	OSGA5U	42.3	70°
	OLAP4U	42.4	109°
	NIMA1K	37.6	224°
	BOYN1K	34.4	246°
	BAGS1K	31.5	251°
	LIPG2U	35.0	295°
	VATR2U	59.0	318°
RW28L
	BUNE2L, BUNE2X	49.6	24°
	SUTE2X, SUTE2L	43.0	48°
	OSGA2X, OSGA2L	42.3	70°
	OLAP2X, OLAP2L	42.4	109°
	BAML2L, BAML2X	45.2	152°
	NIMA2X, NIMA2L	37.6	224°
	BOYN2X, BOYN2L	34.4	246°
	BAGS2X, BAGS2L	31.5	251°
	ABLI2X, ABLI2L	59.9	297°
	VATR2X, VATR2L	59.0	318°
RW34
	BUNE1S	49.6	24°
	SUTE1S	43.0	48°
	OSGA1S	42.3	70°
	OLAP1K	42.4	109°
	BAML1K	45.2	152°
	NIMA1K	37.6	224°
	BOYN1K	34.4	246°
	BAGS1K	31.5	251°
	LIPG1S	35.0	295°
	VATR1S	59.0	318°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW10R	NEKIL (104°)	NEKIL 4000ft RISAP (5mi, 156°) 3000ft
RW10R	OSLEX (83°)	OSLEX 5000ft RISAP (5mi, 38°) 3000ft
	RNAV	RISAP 3000ft GANET (4mi, 93°) 3000ft EIDW (9mi, 93°) 296ft MAXEV (8mi, 93°) 3000ft DUB (11mi, 290°) 5000ft
RW16	ERUDA (177°)	ERUDA 3000ft BAPDA (5mi, 248°) 3000ft
RW16	KERAV (248°)	KERAV 5000ft ERUDA (19mi, 275°) 3000ft BAPDA (5mi, 248°) 3000ft
RW16	UMDAR (130°)	UMDAR BAPDA (4mi, 93°) 3000ft
	RNAV	BAPDA 3000ft GARTI (4mi, 144°) 3000ft DW003 (5mi, 144°) 1570ft DW006 (3mi, 144°) 585ft DW007 (8mi, 144°) 3000ft KERAV (23mi, 55°) 5000ft
RW28L	LAPMO (273°)	LAPMO 3000ft
	RNAV	LAPMO 3000ft MAXEV (4mi, 273°) 2500ft EIDW (8mi, 273°) 256ft GANET (9mi, 273°) 3000ft DUB (9mi, 74°) 5000ft
RW34	KERAV (248°)	KERAV 6000ft AMDIL (24mi, 210°) INTOP (5mi, 256°) 3000ft
RW34	SORIN (301°)	SORIN 6000ft INTOP (12mi, 285°) 3000ft
	RNAV	INTOP 3000ft ABDOX (4mi, 324°) 3000ft DW033 (4mi, 324°) 1780ft EIDW (5mi, 316°) 252ft BAPDA (13mi, 328°) 3000ft DAP (13mi, 154°) 5000ft SORIN (25mi, 120°) 5000ft SORIN (turn) 5000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
BAGS1K	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
BAGS1R	ADNAL	VHF	right	123 (303)°	5000ft - 14000ft	1.0min timed	230
BAGS1R	APRUT	VHF	right	92 (272)°	5000ft - 14000ft	1.0min timed	230
BAGS2L	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
BAGS2X	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
BAML1K	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
BAML1R	ADNAL	VHF	right	123 (303)°	5000ft - 14000ft	1.0min timed	230
BAML1R	APRUT	VHF	right	92 (272)°	5000ft - 14000ft	1.0min timed	230
BAML1Z	ADNAL	VHF	right	123 (303)°	5000ft - 14000ft	1.0min timed	230
BAML1Z	APRUT	VHF	right	92 (272)°	5000ft - 14000ft	1.0min timed	230
BAML2L	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
BAML2X	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
BOYN1K	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
BOYN1R	ADNAL	VHF	right	123 (303)°	5000ft - 14000ft	1.0min timed	230
BOYN1R	APRUT	VHF	right	92 (272)°	5000ft - 14000ft	1.0min timed	230
BOYN2L	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
BOYN2X	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
BUNE1R	BABON	VHF	left	41 (221)°	5000ft - 14000ft	1.0min timed	230
BUNE1S	SORIN	VHF	left	165 (345)°	5000ft - 14000ft	1.0min timed	230
BUNE1Z	BABON	VHF	left	41 (221)°	5000ft - 14000ft	1.0min timed	230
BUNE2L	SORIN	VHF	left	165 (345)°	5000ft - 14000ft	1.0min timed	230
BUNE2X	SORIN	VHF	left	165 (345)°	5000ft - 14000ft	1.0min timed	230
BUNE5U	ULTAG	VHF	left	319 (139)°	5000ft - 14000ft	1.0min timed	220
LIPG1R	BABON	VHF	left	41 (221)°	5000ft - 14000ft	1.0min timed	230
LIPG1S	SORIN	VHF	left	165 (345)°	5000ft - 14000ft	1.0min timed	230
LIPG1Z	BABON	VHF	left	41 (221)°	5000ft - 14000ft	1.0min timed	230
LIPG2U	ULTAG	VHF	left	319 (139)°	5000ft - 14000ft	1.0min timed	220
NIMA1K	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
NIMA1R	ADNAL	VHF	right	123 (303)°	5000ft - 14000ft	1.0min timed	230
NIMA1R	APRUT	VHF	right	92 (272)°	5000ft - 14000ft	1.0min timed	230
NIMA2L	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
NIMA2X	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
OLAP1K	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
OLAP1R	ADNAL	VHF	right	123 (303)°	5000ft - 14000ft	1.0min timed	230
OLAP1R	APRUT	VHF	right	92 (272)°	5000ft - 14000ft	1.0min timed	230
OLAP1Z	ADNAL	VHF	right	123 (303)°	5000ft - 14000ft	1.0min timed	230
OLAP1Z	APRUT	VHF	right	92 (272)°	5000ft - 14000ft	1.0min timed	230
OLAP2L	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
OLAP2X	KERAV	VHF	right	28 (208)°	5000ft - 14000ft	1.0min timed	230
OLAP4U	ULTAG	VHF	left	319 (139)°	5000ft - 14000ft	1.0min timed	220
OSGA1R	BABON	VHF	left	41 (221)°	5000ft - 14000ft	1.0min timed	230
OSGA1S	SORIN	VHF	left	165 (345)°	5000ft - 14000ft	1.0min timed	230
OSGA1Z	BABON	VHF	left	41 (221)°	5000ft - 14000ft	1.0min timed	230
OSGA2L	SORIN	VHF	left	165 (345)°	5000ft - 14000ft	1.0min timed	230
OSGA2X	SORIN	VHF	left	165 (345)°	5000ft - 14000ft	1.0min timed	230
OSGA5U	ULTAG	VHF	left	319 (139)°	5000ft - 14000ft	1.0min timed	220
SUTE1R	BABON	VHF	left	41 (221)°	5000ft - 14000ft	1.0min timed	230
SUTE1S	SORIN	VHF	left	165 (345)°	5000ft - 14000ft	1.0min timed	230
SUTE1Z	BABON	VHF	left	41 (221)°	5000ft - 14000ft	1.0min timed	230
SUTE2L	SORIN	VHF	left	165 (345)°	5000ft - 14000ft	1.0min timed	230
SUTE2X	SORIN	VHF	left	165 (345)°	5000ft - 14000ft	1.0min timed	230
SUTE5U	ULTAG	VHF	left	319 (139)°	5000ft - 14000ft	1.0min timed	220
VATR1R	BABON	VHF	left	41 (221)°	5000ft - 14000ft	1.0min timed	230
VATR1S	SORIN	VHF	left	165 (345)°	5000ft - 14000ft	1.0min timed	230
VATR1Z	BABON	VHF	left	41 (221)°	5000ft - 14000ft	1.0min timed	230
VATR2L	SORIN	VHF	left	165 (345)°	5000ft - 14000ft	1.0min timed	230
VATR2U	ULTAG	VHF	left	319 (139)°	5000ft - 14000ft	1.0min timed	220
VATR2X	SORIN	VHF	left	165 (345)°	5000ft - 14000ft	1.0min timed	230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
