Airports for X-Plane

Leknes

Airport details

CountryNorway
StateNordland
RegionEN
AirspacePolaris Ctr
MunicipalityVestvågøy
Elevation80ft (24m)
TimezoneGMT +1
Coordinates68.15250, 13.60944
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeENLK
IATA codeLKN
FAA coden/a

Communication

No airport communication available for ENLK

Approach frequencies

LOCRW02108.518.00mi
Nearby Points of Interest:
Nusfjord

Runway info

Runway 02 / 20
 length947m (3107ft)
 bearing55° / 235°
 width30m (98ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

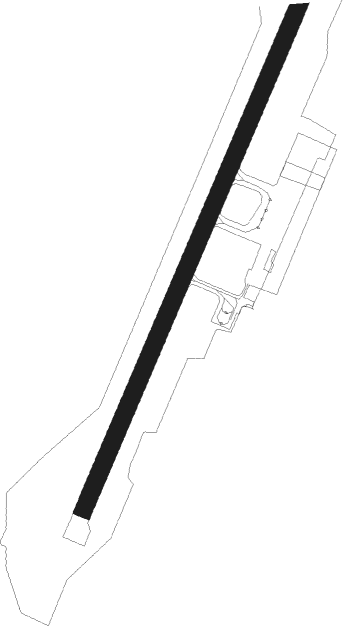

Airport layout


Parking locations

 GA  Stand

Nearby beacons

codeidentifierdistbearingfrequency
SADSANDSUND (LEKNES) NDB3.9157°348
BDOBODO VOR/DME55.9140°117.55
BOOBODO TACAN55.9140°110.80

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW02
 INVA1C32mi81°
 ARDU1C39mi120°
 UGME1C20mi250°
RW20
 INVA1D32mi81°
 ARDU1Y, ARDU1Z39mi120°
 UGME1D20mi250°

STAR starting pointsdistanceinbound heading
RW02
 NERA1C29.9328°
RW20
 NERA1D29.9328°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02BLOTE (33°)BLOTE 4000ft
LK409 (4mi, 31°) 4000ft
RW02LEKNO (2°)LEKNO 4000ft
BLOTE (3mi, 275°) 4000ft
LK409 (4mi, 31°) 4000ft
RW02ULNUD (55°)ULNUD 4000ft
BLOTE (4mi, 95°) 4000ft
LK409 (4mi, 31°) 4000ft
 RNAVLK409 4000ft
LK410 (10mi, 31°) 124ft
LK411 (5mi, 67°)
LK412 (5mi, 38°)
LEKNO (25mi, 209°) 4000ft
LEKNO (turn) 4000ft
RW20ARVIM (251°)ARVIM 4500ft
LK402 (5mi, 281°) 4000ft
RW20IXOPO (235°)IXOPO 4800ft
LK402 (5mi, 235°) 4000ft
 RNAVLK402 4000ft
LK401 (4mi, 235°) 4000ft
ENLK (10mi, 235°) 121ft
LK407 (2mi, 235°)
LK408 (7mi, 164°)
SAD (5mi, 22°) 4000ft
SAD (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
NERA1CLEKNOVHFright97 (277)°> 4000ft1.0min timedICAO rules
NERA1DARVIMVHFleft112 (292)°> 4500ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
