Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

aviation outskirts aerodromes asphalt aircraft carrier automated airport weather station faa train heliport terminal warfare landing concrete airstrip plane jet station flights nearby public transport

Airports for X-Plane

Stavanger - Stavanger Lufthavn Sola

Airport details

CountryNorway
StateRogaland
RegionEN
AirspacePolaris Ctr
MunicipalitySola
Elevation26ft (8m)
TimezoneGMT +1
Coordinates58.87667, 5.63778
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeENZV
IATA codeSVG
FAA coden/a

Communication

Stavanger Lufthavn Sola ATIS126.000
Stavanger Lufthavn Sola Ground Control121.750
Stavanger Lufthavn Sola Tower118.350
Stavanger Lufthavn Sola RADAR119.600
Stavanger Lufthavn Sola ARR118.500

Approach frequencies

ILS-cat-IIRW18110.318.00mi
ILS-cat-IRW36111.3518.00mi
ILS-cat-IRW11109.518.00mi
3° GSRW36111.3518.00mi
3° GSRW11109.518.00mi
3° GSRW18110.318.00mi
Nearby Points of Interest:
Ræge kapell
-
Runenstein von Helland
-
Norwegian Runic Inscription 239
-
Feistein Lighthouse
-
Haugvaldstadminne 8
-
Engels minde
-
Kongsgård, Stavanger
-
Øvre Strandgate 60, Stavanger
-
Mariakirken
-
Runenstein der Mariakirken
-
Norges Bank, Stavanger
-
Gamle Tollbod, Stavanger
-
Konsul Frederik Hansens hus
-
Tollboden
-
Sviland Church
-
Old Ålgård Church
-
Solbakk helleristninger
-
Varhaug gamle kirkegård
-
Skudenes fyr
-
Geitungen Lighthouse

Runway info

Runway 18 / 36
 length2697m (8848ft)
 bearing178° / 358°
 width60m (197ft)
 surfaceasphalt
 displ threshold57m (187ft) / 149m (489ft)
 blast zone168m (551ft) / 0m (0ft)
Runway 11 / 29
 length2444m (8018ft)
 bearing99° / 279°
 width45m (148ft)
 surfaceasphalt
 displ threshold100m (328ft) / 153m (502ft)

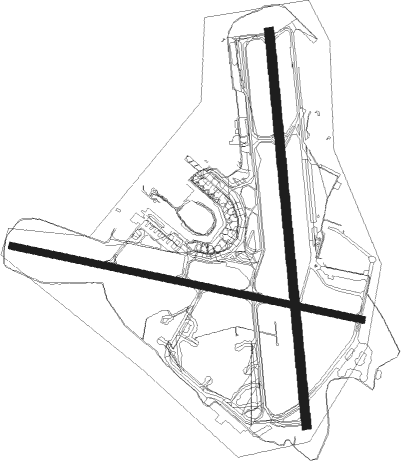

Airport layout


Taxiway locations

 A2  C1  C2  C3  D  E  E1  F1
 F2  G1  G2  G4  G5  G6  G7  H
Parking locations

 East  Gate  General  Norwegian  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
SOASOLA TACAN0252°112.25
ZOLSOLA VOR/DME0.1124°116.85
KRMKARMOY (HAUGESUND) VOR/DME31.2317°115.15
STDSTORD VOR/DME55.4342°113.40
LSTLISTA TACAN55.9128°109.30

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW11
 ODIN1E57mi50°
 UPLE1E40mi80°
 PEVE1E43mi108°
 BIVK1E37mi131°
 RUMO1E40mi190°
 LAPO1E40mi258°
 ALUV1E37mi308°
 GEDL1E56mi357°
RW18
 ODIN1G57mi50°
 UPLE1G40mi80°
 PEVE1G43mi108°
 BIVK1G37mi131°
 RUMO1G40mi190°
 LAPO1G40mi258°
 ALUV1G37mi308°
 GEDL1G56mi357°
RW29
 ODIN1F57mi50°
 UPLE1F40mi80°
 PEVE1F43mi108°
 BIVK1F37mi131°
 RUMO1F40mi190°
 LAPO1F40mi258°
 ALUV1F37mi308°
 GEDL1F56mi357°
RW36
 ODIN1H57mi50°
 UPLE1H40mi80°
 PEVE1H43mi108°
 BIVK1H37mi131°
 RUMO1H40mi190°
 LAPO1H40mi258°
 ALUV1H37mi308°
 GEDL1H56mi357°

STAR starting pointsdistanceinbound heading
RW11
 UNBU2Q47.132°
 KUNE2Q40.386°
 BEGO2Q48.0148°
 UPDE3Q87.1163°
 ROPN2Q46.1249°
 IDIP2Q39.5266°
 RIVE2Q39.2297°
RW18
 UNBU2S47.132°
 KUNE2S40.386°
 BEGO2S48.0148°
 UPDE3S87.1163°
 ROPN2S46.1249°
 IDIP3S39.5266°
 RIVE2S39.2297°
RW29
 UNBU3R47.132°
 KUNE3R40.386°
 BEGO2R48.0148°
 UPDE3R87.1163°
 ROPN2R46.1249°
 IDIP2R39.5266°
 RIVE3R39.2297°
RW36
 UNBU2T47.132°
 KUNE3T40.386°
 BEGO2T48.0148°
 UPDE3T87.1163°
 ROPN2T46.1249°
 IDIP2T39.5266°
 RIVE2T39.2297°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11NEXUT (88°)NEXUT 3000ft
DISIX (4mi, 55°) 2000ft
RW11OTBIG (111°)OTBIG 3000ft
DISIX (4mi, 172°) 2000ft
 RNAVDISIX 2000ft
VEVEP (4mi, 99°) 1500ft
ENZV (6mi, 99°) 57ft
ZV820 (2mi, 99°)
ZV821 (15mi, 197°)
NEXUT (18mi, 304°) 3000ft
RW18ERDUK (178°)ERDUK 3400ft
RANAB (4mi, 178°) 2000ft
RW18GOGUT (142°)GOGUT 2500ft
RANAB (4mi, 100°) 2000ft
RW18ROXON (215°)ROXON 3000ft
RANAB (4mi, 259°) 2000ft
 RNAVRANAB 2000ft
NEPMO (3mi, 178°) 1500ft
ENZV (5mi, 178°) 60ft
ZV835 (14mi, 178°)
GOGUT (25mi, 341°) 3000ft
RW29EMPIS (269°)EMPIS 4500ft
OSMOP (4mi, 235°) 3300ft
RW29FLARE (279°)FLARE 4800ft
OSMOP (4mi, 279°) 3300ft
RW29OKOBO (290°)OKOBO 4100ft
OSMOP (4mi, 353°) 3300ft
 RNAVOSMOP 3300ft
ULSIP (3mi, 279°) 2800ft
ENZV (7mi, 279°) 78ft
ZV831 (15mi, 279°)
OKOBO (28mi, 104°) 4100ft
RW36AGNAP (358°)AGNAP 3000ft
PIDUG (4mi, 358°) 2700ft
RW36ELBUV (35°)ELBUV 3000ft
PIDUG (4mi, 79°) 2700ft
RW36TUXAS (322°)TUXAS 3000ft
PIDUG (4mi, 280°) 2700ft
 RNAVPIDUG 2700ft
GURDU (4mi, 358°) 1600ft
ENZV (5mi, 358°) 79ft
ZV840 (15mi, 358°)
ELBUV (25mi, 195°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BEGO2QBEVGUVHFleft11 (191)°> 3000ft1.0min timedICAO rules
BEGO2SDIMAVVHFleft286 (106)°> 7000ft1.0min timedICAO rules
BEGO2TREGVOVHFright247 (67)°> 7000ft1.0min timedICAO rules
IDIP2QBEVGUVHFleft11 (191)°> 3000ft1.0min timedICAO rules
IDIP2QIDIPIVHFleft78 (258)°> 10000ft1.0min timedICAO rules
IDIP2RIDIPIVHFleft78 (258)°> 10000ft1.0min timedICAO rules
IDIP2TIDIPIVHFleft78 (258)°> 10000ft1.0min timedICAO rules
IDIP2TLURUPVHFleft88 (268)°> 7000ft1.0min timedICAO rules
IDIP3SIDIPIVHFleft78 (258)°> 10000ft1.0min timedICAO rules
IDIP3SNULVUVHFright81 (261)°> 7000ft1.0min timedICAO rules
KUNE2QIPMARVHFright217 (37)°> 3000ft1.0min timedICAO rules
KUNE2QKUNEMVHFleft256 (76)°> 10000ft1.0min timedICAO rules
KUNE2SDIMAVVHFleft286 (106)°> 7000ft1.0min timedICAO rules
KUNE2SKUNEMVHFleft256 (76)°> 10000ft1.0min timedICAO rules
KUNE3RKUNEMVHFleft256 (76)°> 10000ft1.0min timedICAO rules
KUNE3TKUNEMVHFleft256 (76)°> 10000ft1.0min timedICAO rules
KUNE3TREGVOVHFright247 (67)°> 7000ft1.0min timedICAO rules
RIVE2QIPMARVHFright217 (37)°> 3000ft1.0min timedICAO rules
RIVE2QRIVEXVHFright144 (324)°> 10000ft1.0min timedICAO rules
RIVE2SNULVUVHFright81 (261)°> 7000ft1.0min timedICAO rules
RIVE2SRIVEXVHFright144 (324)°> 10000ft1.0min timedICAO rules
RIVE2TLURUPVHFleft88 (268)°> 7000ft1.0min timedICAO rules
RIVE2TRIVEXVHFright144 (324)°> 10000ft1.0min timedICAO rules
RIVE3RRIVEXVHFright144 (324)°> 10000ft1.0min timedICAO rules
ROPN2QBEVGUVHFleft11 (191)°> 3000ft1.0min timedICAO rules
ROPN2QROPNOVHFleft49 (229)°> 10000ft1.0min timedICAO rules
ROPN2RROPNOVHFleft49 (229)°> 10000ft1.0min timedICAO rules
ROPN2SNULVUVHFright81 (261)°> 7000ft1.0min timedICAO rules
ROPN2SROPNOVHFleft49 (229)°> 10000ft1.0min timedICAO rules
ROPN2TLURUPVHFleft88 (268)°> 7000ft1.0min timedICAO rules
ROPN2TROPNOVHFleft49 (229)°> 10000ft1.0min timedICAO rules
UNBU2QIPMARVHFright217 (37)°> 3000ft1.0min timedICAO rules
UNBU2SDIMAVVHFleft286 (106)°> 7000ft1.0min timedICAO rules
UNBU2TREGVOVHFright247 (67)°> 7000ft1.0min timedICAO rules
UPDE3QBEVGUVHFleft11 (191)°> 3000ft1.0min timedICAO rules
UPDE3QUPDERVHFright3 (183)°> 18000ft1.0min timedICAO rules
UPDE3RUPDERVHFright3 (183)°> 18000ft1.0min timedICAO rules
UPDE3SDIMAVVHFleft286 (106)°> 7000ft1.0min timedICAO rules
UPDE3SUPDERVHFright3 (183)°> 18000ft1.0min timedICAO rules
UPDE3TREGVOVHFright247 (67)°> 7000ft1.0min timedICAO rules
UPDE3TUPDERVHFright3 (183)°> 18000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
