Airports for X-Plane

Warsaw - Warsaw Chopin

Airport details

CountryPoland
StateMasovian Voivodeship
RegionEP
AirspaceWarsaw Ctr
MunicipalityWarsaw
Elevation354ft (108m)
TimezoneGMT +1
Coordinates52.16583, 20.96722
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEPWA
IATA codeWAW
FAA coden/a

Communication

Warsaw Chopin ATIS120.450
Warsaw Chopin Clearance DEL121.600
Warsaw Chopin Ground Control121.900
Warsaw Chopin Tower118.300
Warsaw Chopin WARSZAWA DIR129.375
Warsaw Chopin DepartureARTURE118.300

Approach frequencies

ILS-cat-IIIRW33110.318.00mi
ILS-cat-IIRW11109.918.00mi
3° GSRW33110.318.00mi
3° GSRW11109.918.00mi
Nearby Points of Interest:
Klasztor Karmelitów Bosych w Warszawie
-
Dom Pod Skarabeuszami
-
Redoubt 54 in Warsaw
-
Maria
-
Pałac Ursynów
-
Admiralty building -
-
Warszawa Szczęśliwice railway depot
-
Willa Jasny Dom w Warszawie
-
Dom Wedla
-
Krąg megalityczny
-
Akademik Dormitory in Warsaw
-
Koelichen Palace in Warsaw
-
III Ogród Jordanowski w Warszawie
-
Building of Polish Ministry of the Environment
-
Kolonia Lubeckiego
-
Wiadukt kolejowy przy ul. Armatniej w Warszawie
-
68 Filtrowa Street in Warsaw
-
Wolskie Pięciochatki
-
Warsaw Water Filters
-
Sielce Palace
-
Rogatki Mokotowskie
-
Kacperski tenement house in Warsaw
-
Kamienica Judy Wielburskiego
-
23 Parkowa Street in Warsaw
-
Juliusz Ostrowski tenement house in Warsaw

Runway info

Runway 11 / 29
 length2795m (9170ft)
 bearing106° / 286°
 width50m (164ft)
 surfaceasphalt
 displ threshold0m (0ft) / 496m (1627ft)
 blast zone150m (492ft) / 0m (0ft)
Runway 15 / 33
 length3684m (12087ft)
 bearing139° / 319°
 width60m (197ft)
 surfaceasphalt
 displ threshold0m (0ft) / 658m (2159ft)

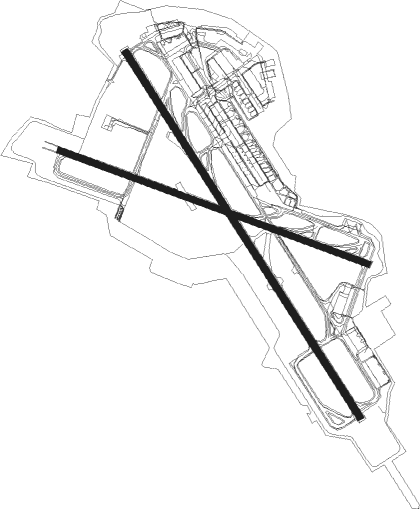

Airport layout


Taxiway locations

 11  15  29  33  61  62  63  A0
 A1  A3  A4  A5  A8  B1  B7  B8
 C1  E2  H1  L  N2  S1  S2
Parking locations

 1  10  101  101A  102  103  103A  103A'
 104  105  10L  10R  11  12  13  13L
 13R  14  14L  14R  15  15L  15R  16
 17  18  19  2  20  201  202  203
 204  205  21  22  23  24  25  25L
 25R  3  31  31'  32  32'  33  33'
 34  34'  35  35'  37  37'  37L  37L'
 37R  37R'  38  38'  39  39'  4  40
 40'  41  41'  42  42'  43  43'  43B
 43B'  44  44'  45  45'  45L  45L'  45R
 45R'  47  48  5  53  53A  53B  54
 54A  54B  6  61  62  63  64  64L
 64R  65  65L  65R  66  66L  66R  7
 701  701'  702  702'  703  703'  704  704'
 705  705'  706  706'  707  707'  708  709
 71  71'  710  711  712  72  72'  73
 73'  74  74'  75  76  7A  8  80
 801  802  803  804  804'  805  805'  806
 806'  807  807'  808  808'  809  809'  81
 810  810'  811  811'  812  813  814  815
 816  817  818  82  83  84  85  86
 87  88  9  91  92  93  94  95
 96  97  98  JetStory

Nearby beacons

codeidentifierdistbearingfrequency
OKCOKECIE (WARSAW) VOR/DME0.3299°113.45
WARZABOROWEK VOR/DME12.7287°114.90
LINDME15.6141°113.10
MOLMODLIN VOR/DME20.2315°116.60
KRNDME23.3247°117.80
TMMMINSK MAZOWIECKI TACAN25.788°117.05
NFMINSK MAZOWIECKI NDB26.788°282
NPRTOMASZOW MAZOWIECKI NDB46.8233°488
NEDDEBLIN NDB47.2125°465
NPTOMASZOW MAZOWIECKI NDB47.2235°437
NRRADOM NDB47.4160°313
NRARADOM NDB47.4158°328
TTMTOMASZOW MAZOWIECKI TACAN47.4237°110.70
NEDEBLIN NDB49.3124°366
TDNDEBLIN TACAN50.3123°108.80
NDDEBLIN NDB51.4123°366
NDEDEBLIN NDB53123°465
DIADME55.313°117.95

Departure and arrival routes

Transition altitude6500ft
SID end pointsdistanceoutbound heading
RW11
 BAMS5A36mi80°
 XIMB5A35mi138°
 EVIN5A52mi218°
 SOXE6A39mi263°
 LOLS6A40mi271°
 OLIL6A40mi310°
RW15
 BAMS5D36mi80°
 XIMB6D35mi138°
 EVIN5D52mi218°
 SOXE6D39mi263°
 LOLS6D40mi271°
 OLIL5D40mi310°
RW29
 BAMS6G36mi80°
 XIMB7G35mi138°
 EVIN7G52mi218°
 SOXE7G39mi263°
 LOLS7G40mi271°
 OLIL6G40mi310°
RW33
 BAMS5K36mi80°
 XIMB4K35mi138°
 EVIN4K52mi218°
 SOXE5K39mi263°
 LOLS5K40mi271°
 OLIL5K40mi310°

STAR starting pointsdistanceinbound heading
RW11
 LOGD5N53.917°
 AGAV5N51.260°
 BIMP6N45.5100°
 SORI6N52.6115°
 NEPO5N38.0270°
 LIMV5N36.6300°
RW15
 LOGD4P53.917°
 AGAV4P51.260°
 BIMP4P45.5100°
 SORI4P52.6115°
 NEPO4P38.0270°
 LIMV4P36.6300°
RW29
 LOGD5V53.917°
 AGAV5V51.260°
 BIMP5V45.5100°
 SORI5V52.6115°
 NEPO5V38.0270°
 LIMV5V36.6300°
RW33
 LOGD5U53.917°
 AGAV5U51.260°
 BIMP5U45.5100°
 SORI5U52.6115°
 NEPO5U38.0270°
 LIMV5U36.6300°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11WA412 (106°)WA412
WA411 (4mi, 105°) 3800ft
GOSIT (3mi, 105°)
 RNAVGOSIT
WA409 (1mi, 106°) 3000ft
EPWA (9mi, 106°) 412ft
OLBIL (5mi, 106°)
EVDEX (26mi, 254°) 4000ft
RW15WA616 (139°)WA616
WA614 (4mi, 139°) 3800ft
OSNUT (3mi, 139°)
 RNAVOSNUT
WA613 (2mi, 139°) 3000ft
WA612 (1mi, 139°) 2500ft
EPWA (7mi, 139°) 402ft
WA697 (17mi, 139°) 3000ft
RW29WA731 (286°)WA731
WA729 (4mi, 286°) 3800ft
TEBRU (3mi, 286°)
 RNAVTEBRU
WA728 (1mi, 286°) 3000ft
EPWA (7mi, 286°) 396ft
WA412 (17mi, 286°) 3000ft
RW33WA534 (319°)WA534
WA533 (4mi, 319°) 3800ft
ERLEG (3mi, 319°)
WA529 (2mi, 319°) 3000ft
 RNAVWA529 3000ft
EPWA (9mi, 319°) 404ft
XELTO (3mi, 319°)
MULZA (10mi, 280°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGAV4PAGAVAVHFleft267 (87)°1.5min timed230
AGAV4PFOLFAVHFleft192 (12)°1.0min timed230
AGAV5NAGAVAVHFleft267 (87)°1.5min timed230
AGAV5NFOLFAVHFleft192 (12)°1.0min timed230
AGAV5UAGAVAVHFleft267 (87)°1.5min timed230
AGAV5UFOLFAVHFleft192 (12)°1.0min timed230
AGAV5VAGAVAVHFleft267 (87)°1.5min timed230
AGAV5VFOLFAVHFleft192 (12)°1.0min timed230
BIMP4PBIMPAVHFleft264 (84)°1.5min timed230
BIMP4PKEWLUVHFright269 (89)°1.0min timed230
BIMP5UBIMPAVHFleft264 (84)°1.5min timed230
BIMP5UKEWLUVHFright269 (89)°1.0min timed230
BIMP5VBIMPAVHFleft264 (84)°1.5min timed230
BIMP5VKEWLUVHFright269 (89)°1.0min timed230
BIMP6NBIMPAVHFleft264 (84)°1.5min timed230
BIMP6NKEWLUVHFright269 (89)°1.0min timed230
LIMV4PENZAMVHFright129 (309)°1.0min timed230
LIMV4PLIMVIVHFright140 (320)°1.5min timed230
LIMV5NENZAMVHFright129 (309)°1.0min timed230
LIMV5NLIMVIVHFright140 (320)°1.5min timed230
LIMV5UENZAMVHFright129 (309)°1.0min timed230
LIMV5ULIMVIVHFright140 (320)°1.5min timed230
LIMV5VENZAMVHFright129 (309)°1.0min timed230
LIMV5VLIMVIVHFright140 (320)°1.5min timed230
LOGD4PFOLFAVHFleft192 (12)°1.0min timed230
LOGD4PLOGDAVHFright193 (13)°1.5min timed230
LOGD5NFOLFAVHFleft192 (12)°1.0min timed230
LOGD5NLOGDAVHFright193 (13)°1.5min timed230
LOGD5UFOLFAVHFleft192 (12)°1.0min timed230
LOGD5ULOGDAVHFright193 (13)°1.5min timed230
LOGD5VFOLFAVHFleft192 (12)°1.0min timed230
LOGD5VLOGDAVHFright193 (13)°1.5min timed230
NEPO4PENZAMVHFright129 (309)°1.0min timed230
NEPO4PNEPOXVHFleft93 (273)°1.5min timed230
NEPO5NENZAMVHFright129 (309)°1.0min timed230
NEPO5NNEPOXVHFleft93 (273)°1.5min timed230
NEPO5UENZAMVHFright129 (309)°1.0min timed230
NEPO5UNEPOXVHFleft93 (273)°1.5min timed230
NEPO5VENZAMVHFright129 (309)°1.0min timed230
NEPO5VNEPOXVHFleft93 (273)°1.5min timed230
SORI4PKEWLUVHFright269 (89)°1.0min timed230
SORI4PSORIXVHFleft274 (94)°1.5min timed230
SORI5UKEWLUVHFright269 (89)°1.0min timed230
SORI5USORIXVHFleft274 (94)°1.5min timed230
SORI5VKEWLUVHFright269 (89)°1.0min timed230
SORI5VSORIXVHFleft274 (94)°1.5min timed230
SORI6NKEWLUVHFright269 (89)°1.0min timed230
SORI6NSORIXVHFleft274 (94)°1.5min timed230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
