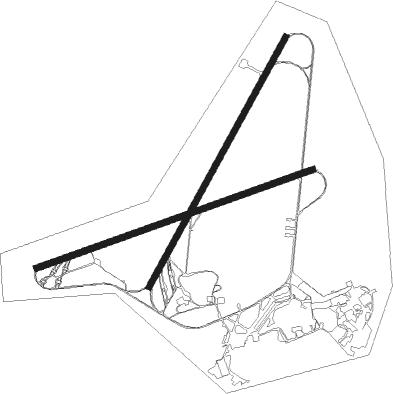

Uppsala-Ärna
Airport details
| Country | Sweden |
| State | Uppsala län |
| Region | ES |
| Airspace | Sweden Ctr |
| Municipality | Uppsala |
| Elevation | 66ft (20m) |
| Timezone | GMT +1 |
| Coordinates | 59.88905, 17.59126 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | ESCM |
| IATA code | n/a |
| FAA code | n/a |
Communication
| Uppsala-Ärna Tower | 119.200 |
| Uppsala-Ärna STOCKHOLM TCA | 134.200 |
| Uppsala-Ärna Approach | 130.400 |
Approach frequencies
| ILS-cat-I | RW21 | 109.1 | 18.00mi |
| 3° GS | RW21 | 109.1 | 18.00mi |
Nearby Points of Interest:
Upplands runinskrifter NOR1997;27A
-Uppland Runic Inscription 986
-Rektorsgården i Uppsala
-Backmanska huset
-Royal Society of Sciences in Uppsala
-Konsistoriehuset
-Ecclesiasticum
-Vice pastorshuset
-Archbishop's Palace of Uppsala
-Uppsala Town
-Uppland Runic Inscription 922
-Domkapitelhuset
-Dekanhuset, Uppsala
-Domtrapphuset
-Skytteanum
-Ihregården
-Geijersgården
-The Svedberg Laboratory
-Televerkets hus, Uppsala
-Regnellianum
-Linneanum
-Uppland Runic Inscription 976
-Svettis
-Villa Lugnet
-Upplands runinskrifter 914
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| UP | UPPSALA NDB | 6.2 | 49° | 366 |
| ANW | (STOCKHOLM) DME | 13.1 | 124° | 112.05 |
| WA | ARLANDA (STOCKHOLM) NDB | 17 | 126° | 348 |
| ARL | ARLANDA (STOCKHOLM) VOR/DME | 17.1 | 126° | 116 |
| ANE | (STOCKHOLM) DME | 18.3 | 113° | 113.30 |
| ASE | (STOCKHOLM) DME | 18.7 | 125° | 114.45 |
| ASW | (STOCKHOLM) DME | 19.3 | 143° | 113.75 |
| LNA | LENA NDB | 22.1 | 214° | 330 |
| ERK | ERKEN NDB | 22.4 | 89° | 383 |
| TEB | TEBBY VOR/DME | 28.3 | 120° | 117.10 |
| LE | VAESTERAAS AB (STOCKHOLM) NDB | 31.1 | 256° | 333 |
| HMR | HAMMAR VOR/DME | 33.5 | 64° | 112.60 |
| ARS | AROS VOR/DME | 33.7 | 252° | 112.80 |
| RD | VAESTERAAS AB (STOCKHOLM) NDB | 37.3 | 249° | 419 |
| COR | CORNER NDB | 37.8 | 190° | 388 |
| LX | ESKILSTUNA NDB | 45.5 | 235° | 402 |
| TRS | TROSA VOR/DME | 57.1 | 185° | 114.30 |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW03 | CM702 (54°) | CM702 2500ft CM701 (4mi, 52°) 2000ft |
| RW03 | CM703 (25°) | CM703 2500ft CM701 (4mi, 288°) 2000ft |
| RW03 | RUWER (72°) | RUWER 2500ft CM701 (4mi, 108°) 2000ft |
| RNAV | CM701 2000ft CM700 (4mi, 52°) 2000ft ESCM (6mi, 56°) 110ft CM501 (11mi, 51°) 2000ft (3700mi, 196°) | |
| RW08 | CM707 (83°) | CM707 2500ft CM706 (4mi, 82°) 2000ft |
| RW08 | CM708 (72°) | CM708 2500ft CM706 (4mi, 331°) 2000ft |
| RW08 | XIBTI (94°) | XIBTI 2500ft CM706 (4mi, 151°) 2000ft |
| RNAV | CM706 2000ft CM705 (4mi, 82°) 2000ft ESCM (7mi, 84°) 92ft CM506 (10mi, 81°) 2000ft (3696mi, 197°) | |
| RW21 | CM502 (231°) | CM502 2500ft CM501 (4mi, 233°) 2000ft |
| RW21 | CM503 (248°) | CM503 2500ft CM501 (4mi, 288°) 2000ft |
| RW21 | PASCA (203°) | PASCA 2500ft CM501 (4mi, 108°) 2000ft |
| RNAV | CM501 2000ft CM500 (4mi, 233°) 2000ft ESCM (7mi, 230°) 118ft CM701 (10mi, 234°) 2000ft (3680mi, 196°) | |
| RW26 | BYGDE (249°) | BYGDE 2500ft CM506 (4mi, 152°) 2000ft |
| RW26 | CM507 (261°) | CM507 2500ft CM506 (4mi, 262°) 2000ft |
| RW26 | CM550 (272°) | CM550 2500ft CM506 (4mi, 332°) 2000ft |
| RNAV | CM506 2000ft CM505 (4mi, 262°) 2000ft ESCM (6mi, 260°) 112ft CM706 (10mi, 264°) 2000ft (3684mi, 196°) |
