Airports for X-Plane

Såtenäs - Satenas Air Base

Airport details

CountrySweden
StateVästra Götalands län
RegionES
AirspaceSweden Ctr
MunicipalityLidköpings kommun
Elevation181ft (55m)
TimezoneGMT +1
Coordinates58.43253, 12.71822
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeESIB
IATA coden/a
FAA coden/a

Communication

Satenas Air Base Ground Control134.300
Satenas Air Base Tower128.200
Satenas Air Base CON134.550
Satenas Air Base CON123.000

Approach frequencies

ILS-cat-IRW19109.518.00mi
ILS-cat-IRW01111.1518.00mi
3° GSRW19109.518.00mi
3° GSRW01111.1518.00mi
Nearby Points of Interest:
Karaby socken
-
Friels socken
-
Västergötlands runinskrifter 105
-
Särestads socken
-
Håle socken
-
Tängs socken
-
Västergötlands runinskrifter 112
-
Ås socken
-
Tådene socken
-
Bjärby kyrkplats
-
Bjärby socken
-
Tranums socken
-
Sals socken
-
Runenstein von Sal
-
Lavads socken
-
Vänersnäs socken
-
Västergötlands runinskrifter 1114
-
Västergötlands runinskrifter 113
-
Häggesleds socken
-
Slädene socken
-
Norra Kedums socken
-
Sparlösa socken
-
Hallby kyrkoruin
-
Slädene storegård
-
Flakebergs socken

Runway info

Runway 01 / 19
 length2264m (7428ft)
 bearing9° / 189°
 width40m (131ft)
 surfaceasphalt
 blast zone45m (148ft) / 50m (164ft)
Runway 11 / 29
 length1941m (6368ft)
 bearing102° / 282°
 width40m (131ft)
 surfaceasphalt
 blast zone55m (180ft) / 5m (16ft)

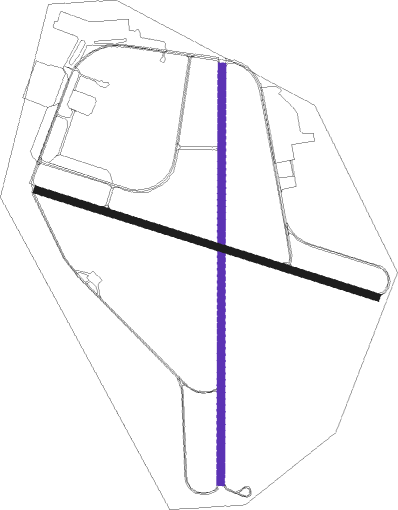

Airport layout - runway 01 / 19


Nearby beacons

codeidentifierdistbearingfrequency
LGSATENAS NDB1.2352°309
SGSATENAS NDB3.1194°409
PGTROLLHATTAN-VANERSBORG NDB13.9241°325
FMTROLLHATTAN-VANERSBORG NDB14.1261°399
FENDME31.9319°115.35
SDHDME40.5170°115.65
NLLANDVETTER (GOTEBORG) NDB43.7208°369
PGGDME45.2217°113.35
LAVLANDVETTER (GOTEBORG) VOR/DME48.5209°114.60
SLLANDVETTER (GOTEBORG) NDB52.7211°342
HGGDME52.8205°113.95
BAKDME57.7220°112.70
SKSKARLSTAD NDB59.230°330

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01IB600 (328°)IB600 2300ft
IB723 (5mi, 272°) 2000ft
RW01IB721 (46°)IB721 2600ft
IB723 (5mi, 92°) 2000ft
RW01IB722 (10°)IB722 2100ft
IB723 (5mi, 9°) 2000ft
 RNAVIB723 2000ft
IB724 (5mi, 9°) 2000ft
ESIB (6mi, 12°) 219ft
IB500 (6mi, 5°) 1500ft
IB601 (14mi, 150°)
IB600 (5mi, 189°) 2300ft
IB600 (turn) 2300ft
RW19IB531 (226°)IB531 2300ft
IB533 (5mi, 272°) 2000ft
RW19IB532 (187°)IB532 2800ft
IB533 (5mi, 189°) 2000ft
RW19IB860 (144°)IB860 2600ft
IB533 (5mi, 92°) 2000ft
 RNAVIB533 2000ft
IB534 (5mi, 189°) 2000ft
ESIB (6mi, 185°) 225ft
IB725 (7mi, 192°) 1500ft
IB535 (14mi, 43°)
IB531 (5mi, 9°) 2300ft
IB531 (turn) 2300ft
