Airports for X-Plane

Malmö - Malmo Sturup

Airport details

CountrySweden
StateSkåne län
RegionES
AirspaceSweden Ctr
MunicipalitySvedala kommun
Elevation233ft (71m)
TimezoneGMT +1
Coordinates55.54833, 13.35333
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeESMS
IATA codeMMX
FAA coden/a

Communication

Malmo Sturup ATIS129.275
Malmo Sturup Tower118.800
Malmo Sturup Tower121.700
Malmo Sturup MALMO CON135.125
Malmo Sturup MALMO CON135.900
Malmo Sturup Departure133.000

Approach frequencies

ILS-cat-IIRW17111.918.00mi
ILS-cat-IIRW35108.118.00mi
3° GSRW17111.918.00mi
3° GSRW35108.118.00mi

Runway info

Runway 17 / 35
 length2797m (9177ft)
 bearing168° / 348°
 width45m (148ft)
 surfaceasphalt
 blast zone30m (98ft) / 30m (98ft)
Runway 11 / 29
 length795m (2608ft)
 bearing99° / 279°
 width18m (59ft)
 surfaceasphalt

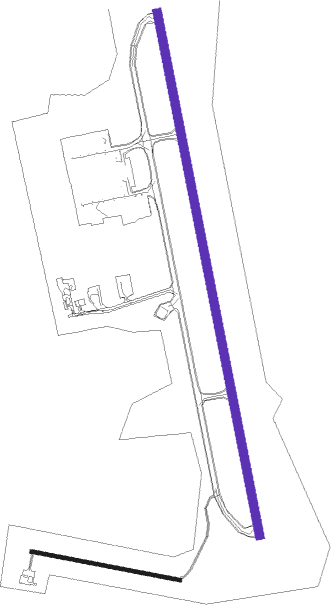

Airport layout - runway 17 / 35


Taxiway locations

 A  B  C  D  E  E1  F  H
 Y  Y1  Y2  Y3  Y4  Y5
Parking locations

 Apron  Gate

Nearby beacons

codeidentifierdistbearingfrequency
SUPSTURUP (MALMO) VOR/DME1.2118°113
KASKASTRUP (COPENHAGEN) VOR/DME25.2273°112.50
KDKRISTIANSTAD NDB31.266°375
LJULJUNGBYHED VOR/DME32.5344°113.40
OEMKRISTIANSTAD NDB36.659°363
SVDDME45.6309°116.20
AHANGELHOLM NDB45.7328°417
CDACODAN VOR/DME46.7241°114.90
LBANGELHOLM NDB51.8324°370

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW17
 NEXI1K49mi26°
 EKRA1K25mi69°
 TELM1K39mi123°
 SALO1K38mi177°
 DISG1K32mi237°
 ERNO1G, ERNO1K46mi309°
 BABS1K, BABS1G24mi338°
RW35
 NEXI1L49mi26°
 EKRA1L25mi69°
 TELM1L39mi123°
 SALO1H, SALO1L38mi177°
 DISG1L, DISG1H32mi237°
 ERNO1L46mi309°
 BABS1L24mi338°

STAR starting pointsdistanceinbound heading
RW17
 DETU2S33.834°
 ERNO1S45.5129°
 RASM1S74.2201°
 EKRA1S24.7249°
 ROE1S56.1289°
 BAKL1S38.5342°
RW35
 DETU1T33.834°
 ERNO1T23.5158°
 RASM1T62.0192°
 EKRA1T24.7249°
 ROE1T56.1289°
 BAKL1T38.5342°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17-YXETRI (221°)XETRI 5000ft
MS520 (11mi, 228°)
 RNAVMS520
MS521 (3mi, 228°) 1800ft
MS522 (2mi, 202°)
ESMS (3mi, 192°) 266ft
ESMS (turn) 2500ft
(3400mi, 194°)
RW35-YSITMU (230°)SITMU 5000ft
MS530 (13mi, 195°)
 RNAVMS530
MS550 (4mi, 179°) 4000ft
MS551 (6mi, 268°)
ESMS (4mi, 333°) 288ft
ESMS (turn) 2500ft
(3400mi, 194°)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAKL1STIDVUVHFright113 (293)°> 5000ft1.5min timed230
ERNO1SNORVIVHFleft348 (168)°> 3000ft1.0min timed230
RASM1SNORVIVHFleft348 (168)°> 3000ft1.0min timed230
*) magnetic outbound (inbound) holding course
