Airports for X-Plane

Sundsvall/ Härnösand - Sundsvall Timra

Airport details

CountrySweden
StateVästernorrlands län
RegionES
AirspaceSweden Ctr
MunicipalityTimrå District
Elevation16ft (5m)
TimezoneGMT +1
Coordinates62.52945, 17.44278
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeESNN
IATA codeSDL
FAA coden/a

Communication

Sundsvall Timra ATIS127.400
Sundsvall Timra Tower118.100
Sundsvall Timra Tower129.550

Approach frequencies

ILS-cat-IRW16108.718.00mi
ILS-cat-IRW34110.318.00mi
3.2° GSRW16108.718.00mi
3° GSRW34110.318.00mi

Runway info

Runway 16 / 34
 length2105m (6906ft)
 bearing142° / 322°
 width45m (148ft)
 surfaceasphalt
 displ threshold150m (492ft) / 140m (459ft)
Runway 15 / 33
 length610m (2001ft)
 bearing129° / 309°
 width30m (100ft)

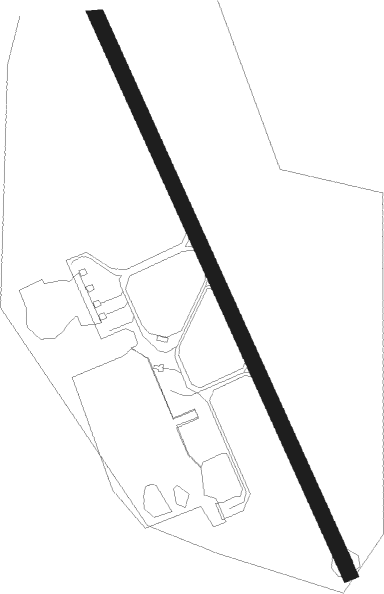

Airport layout - runway 15 / 33


Nearby beacons

codeidentifierdistbearingfrequency
SUNSUNDSVALL VOR/DME0.1100°113.10
LUELUNDE NDB23.548°427
KGKRAMFORS-SOLLEFTEA NDB36.527°326

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW16
 GAJP1G33mi50°
 FOXS1B, FOXS1G39mi141°
 DEGE1G31mi236°
 SINU1G24mi258°
RW34
 GAJP1H33mi50°
 FOXS1H, FOXS1L39mi141°
 DEGE1H31mi236°
 SINU1H24mi258°

STAR starting pointsdistanceinbound heading
RW16
 DEGE1S31.256°
 SINU1S24.178°
 GAJP1S32.5230°
 ZIPC1E, ZIPC1S39.9344°
RW34
 DEGE1T31.256°
 SINU1T24.178°
 GAJP1T32.5230°
 ZIPC1F, ZIPC1T39.9344°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16NN850 (119°)NN850 3200ft
NEKPO (5mi, 80°) 3000ft
RW16NN853 (142°)NN853 3300ft
NEKPO (4mi, 142°) 3000ft
RW16NN854 (180°)NN854 3200ft
NEKPO (5mi, 261°) 3000ft
 RNAVNEKPO 3000ft
NN851 (5mi, 142°) 3000ft
ESNN (9mi, 142°) 67ft
IXIBI (13mi, 142°)
IXIBI (turn) 2500ft
RW34NN551 (322°)NN551 3200ft
IXIBI (4mi, 322°) 2500ft
RW34NN553 (299°)NN553 3200ft
IXIBI (5mi, 261°) 2500ft
RW34NN700 (2°)NN700 3200ft
IXIBI (5mi, 80°) 2500ft
 RNAVIXIBI 2500ft
NN552 (5mi, 322°) 2500ft
ESNN (8mi, 322°) 63ft
NEKPO (14mi, 322°)
NEKPO (turn) 3100ft
