Airports for X-Plane

Norrköping - Norrkoping Kungsangen

Airport details

CountrySweden
StateÖstergötlands län
RegionES
AirspaceSweden Ctr
MunicipalityNorrköpings kommun
Elevation32ft (10m)
TimezoneGMT +1
Coordinates58.58611, 16.24639
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeESSP
IATA codeNRK
FAA coden/a

Communication

Norrkoping Kungsangen Kungsangen Tower120.350
Norrkoping Kungsangen Ostgota Control132.950

Approach frequencies

ILS-cat-IRW09111.118.00mi
ILS-cat-IRW27109.518.00mi
3° GSRW09111.118.00mi
3° GSRW27109.518.00mi
Nearby Points of Interest:
Östergötlands runinskrifter 155
-
Lindö Chapel
-
Styrstads socken
-
Östergötlands runinskrifter 154
-
Östergötlands runinskrifter 153
-
Gamla tullhuset, Norrköping
-
Stenhuset på Saltängen
-
Hörsalen
-
Norrköpings rådhus
-
Sockerbruket Gripen
-
Norrköping Town
-
W6-huset
-
Holmentornet
-
Swartziska huset
-
Gamla stadshuset, Norrköping
-
De Geergymnasiet
-
Södra Promenaden, Norrköping
-
Strykjärnet
-
Bergslagsgården
-
Östergötlands runinskrifter 146
-
Östergötlands runinskrifter 145
-
Dagsbergs socken
-
Anstalten Norrköping
-
Östergötland Runic Inscription 43
-
Marieborgs herrgård

Runway info

Runway 11 / 29
 length601m (1972ft)
 bearing104° / 284°
 width35m (115ft)
 surfacegrass
Runway 09 / 27
 length2205m (7234ft)
 bearing90° / 270°
 width45m (148ft)
 surfaceasphalt
 blast zone0m (0ft) / 56m (184ft)

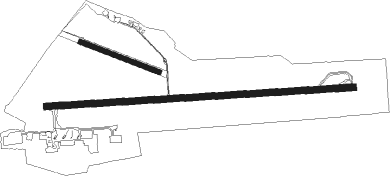

Airport layout


Taxiway locations

 B  C  D  D1  D2
Parking locations

 Club  Corporate  Fuel  GA  Gate  Stand

Nearby beacons

codeidentifierdistbearingfrequency
ONNORRKOPING NDB4.291°324
OLSAAB (LINKOPING) NDB18.6245°415
NWSKAVSTA (STOCKHOLM) NDB20.470°364
SCSAAB (LINKOPING) NDB23.6258°300
VSNVASSEN VOR/DME23.9242°115.25
PEOSKAVSTA (STOCKHOLM) NDB27.975°398
LCFMALMEN (LINKOPING) NDB28.9251°285
LXESKILSTUNA NDB43.834°402
RDVAESTERAAS AB (STOCKHOLM) NDB5721°419

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09EMDOL (78°)EMDOL 2500ft
SP850 (5mi, 1°) 2100ft
RW09GESRI (103°)GESRI 2500ft
SP850 (5mi, 181°) 2100ft
RW09RUGIX (90°)RUGIX 2500ft
SP850 (3mi, 90°) 2100ft
 RNAVSP850 2100ft
SP851 (5mi, 90°) 2100ft
ESSP (7mi, 90°) 63ft
SP551 (6mi, 91°)
ASPON (7mi, 118°) 2500ft
ASPON (turn) 2500ft
RW27ASPON (284°)ASPON 2500ft
SP550 (5mi, 2°) 2100ft
RW27GIPNU (271°)GIPNU 2500ft
SP550 (5mi, 271°) 2100ft
RW27OMIPI (257°)OMIPI 2500ft
SP550 (5mi, 182°) 2100ft
 RNAVSP550 2100ft
SP551 (5mi, 271°) 1670ft
ESSP (6mi, 271°) 82ft
SP852 (5mi, 270°)
ASPON (17mi, 100°) 2500ft
ASPON (turn) 2500ft
