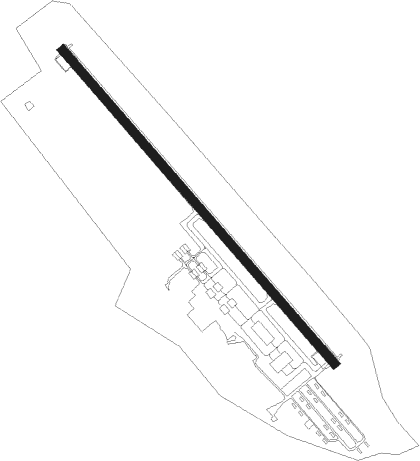

Grafenwohr - Grafenwöhr Aaf
Airport details
| Country | Germany |
| State | Bavaria |
| Region | ED |
| Airspace | Munich Ctr |
| Municipality | Grafenwöhr |
| Elevation | 1361ft (415m) |
| Timezone | GMT +1 |
| Coordinates | 49.69563, 11.94176 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | ETIC |
| IATA code | n/a |
| FAA code | n/a |
Communication
| Grafenwöhr AAF Graf Tower | 122.100 |
Nearby Points of Interest:
Rathaus Grafenwöhr
-St. Martin (Kaltenbrunn)
-Schloss Steinfels
-Schloss Rupprechtsreuth
-Friedhofkirche Mater Dolorosa
-Giebelbau
-Micherlmarterl
-Heilige Familie (Weiherhammer)
-Wehrkirche Ehenfeld
-Pfarrkirche Ehenfeld
-Ehemalige Burghut, sogenanntes Schlössl, Parallelhof
-Vilstor
-Pfarrhaus
-Vogelturm
-Burgstall Keckenburg
-Kleiner Kulm bei Neustadt am Kulm
-Pflegschloss Hirschau
-Rathaus Hirschau
-Teufelsstein (Hahnbach)
-St. Georg (Neustadt an der Waldnaab)
-Altes Schloss
-Neues Schloss
-St. Johannes Evangelist
-Burgruine Waldeck (Oberpfalz)
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| GRW | GRAFENWOHR NDB | 0 | 183° | 405 |
| GRF | GRAFENWOHR TACAN | 0.2 | 218° | 111.80 |
| BAY | BAYREUTH VOR | 21 | 314° | 110.60 |
| OKG | CHEB VOR/DME | 28.5 | 51° | 115.70 |
| HFX | HOHENFELS NDB | 28.8 | 190° | 286 |
| RTB | ROETHENBACH NDB | 29.7 | 253° | 415 |
| ERL | ERLANGEN VOR/DME | 30.8 | 267° | 114.90 |
| NGD | DME | 35.5 | 257° | 113.10 |
| NUB | NUERNBERG VOR/DME | 37.1 | 258° | 115.75 |
| RDG | RODING VOR/DME | 45.5 | 138° | 114.70 |
| L | VRATA (KARLOVY VARY) NDB | 48.9 | 63° | 365 |
| IGL | INGOLSTADT NDB | 58.7 | 197° | 345 |
| IGL | INGOLSTADT TACAN | 60.4 | 201° | 111.40 |
| NEU | NEUBURG TACAN | 65.6 | 217° | 108.90 |
Departure and arrival routes
| Transition altitude | 5000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW14 | |||
| IC36 | 46mi | 138° | |
| IC33 | 30mi | 253° | |
| IC32, IC35 | 31mi | 267° | |
| RW32 | |||
| IC16 | 46mi | 138° | |
| IC13 | 30mi | 253° | |
| IC12, IC15 | 31mi | 267° | |
