Airports for X-Plane

Rockwall - Rockwall Muni

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceFt Worth Ctr
MunicipalityRockwall
Elevation574ft (175m)
TimezoneGMT -6
Coordinates32.93060, -96.43549
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeF46
IATA coden/a
FAA codeF46

Communication

Rockwall Muni AWOS-3121.250
Rockwall Muni CTAF/UNICOM122.800
Rockwall Muni RGNL Approach/Departure124.300
Nearby Points of Interest:
First Methodist Church of Rockwall
-
Royse City Lodge No. 663 A.F. & A.M.
-
Porter Farm
-
Stephen Decatur Lawrence Farmstead
-
Warren-Crowell House
-
Matthew Cartwright House
-
Farmersville Masonic Lodge No. 214, A.F. and A.M.
-
Allen Water Station
-
Dallas Fire Station No. 16
-
Swiss Avenue, Dallas
-
Hyer Hall
-
Munger Place Historic District, Dallas
-
Dallas Hall
-
Perkins Administration Building
-
Fred Florence Hall
-
Heard-Craig House
-
Snider Hall
-
Fair Park
-
Central Congregational Church
-
Greenway Parks Historic District
-
Wheatley Place, Dallas
-
Chevrolet Motor Company Building
-
Highland Park Village
-
Wilson Block
-
South Boulevard–Park Row Historic District

Runway info

Runway 17 / 35
 length1031m (3383ft)
 bearing171° / 351°
 width14m (45ft)
 surfaceasphalt
 displ threshold143m (469ft) / 88m (289ft)

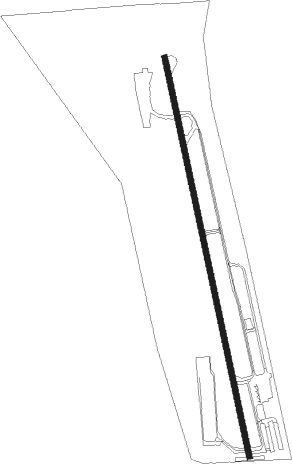

Airport layout


Parking locations

 New

Nearby beacons

codeidentifierdistbearingfrequency
PQFMESQUITE NDB8.6218°248
MJFARVILLA (GREENVILLE) TACAN20.570°109.60
GVMAJOR (GREENVILLE) NDB23.159°201
CVECOWBOY (DALLAS) VOR/DME23.7265°116.20
TTTMAVERICK VOR/DME30.7264°113.10
FUZRANGER (DALLAS-FORT WORTH VORTAC37.5267°115.70
BYPBONHAM VORTAC37.818°114.60
DTPINCK (DENTON) NDB43.7295°257
CQYCEDAR CREEK VORTAC46164°114.80
FTMUFIN (FORT WORTH) NDB47.3268°365
SLRSULPHUR SPRINGS VOR/DME47.773°109
CGQPOWELL (CORSICANA) NDB52179°344
CRSCORSICANA NDB54.2177°396
DNIDENISON (SHERMAN-DENISON) NDB55345°341
CSZCROSSROADS NDB57.4151°215
PRXPARIS VOR/DME61.758°113.60
FZTFRANKSTON VOR/DME68.8133°111.40

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 KUSSO8156mi104°
 GARL163mi119°
 SWABR8148mi262°

STAR starting pointsdistanceinbound heading
ALL
 SWVAY465.958°
 GREGS9, HERBZ1, JFRYE460.4117°
 SLANT3, FINGR720.6197°
 YEAGR4, EESAT3, LOADS322.7344°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17BYP (198°)BYP
FINGR (17mi, 200°) 5000ft
JUMOS (6mi, 205°) 4000ft
 RNAVJUMOS 4000ft
FIJWE (10mi, 205°) 2200ft
F46 (5mi, 171°) 605ft
(5729mi, 109°) 974ft
DAJCA (5729mi, 289°)
YEAGR (18mi, 162°) 5000ft
YEAGR (turn)
RW35CQY (344°)CQY
YEAGR (23mi, 343°) 5000ft
BONIN (7mi, 342°) 4000ft
 RNAVBONIN 4000ft
DAJCA (10mi, 342°) 2200ft
F46 (5mi, 351°) 603ft
(5729mi, 109°) 974ft
FIJWE (5730mi, 289°)
FINGR (16mi, 25°) 5000ft
FINGR (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
EESAT3HINZEVHFleft107 (287)°DME 10.0miICAO rules
EESAT3KOBIEVHFright130 (310)°DME 10.0miICAO rules
EESAT3ZEKKEVHFleft91 (271)°DME 10.0miICAO rules
FINGR7BIRLEVHFright35 (215)°1.5min timedICAO rules
FINGR7BYPNDBright45 (225)°< 60000ft1.0min timedICAO rules
FINGR7GAATZVHFright35 (215)°1.0min timedICAO rules
FINGR7GLOVEVHFright64 (244)°18000ft - 45000ft1.5min timedICAO rules
GREGS9ACKMEVHFright15 (195)°1.0min timedICAO rules
GREGS9HEATRVHFleft299 (119)°1.5min timedICAO rules
GREGS9KAJAYVHFright283 (103)°1.5min timedICAO rules
GREGS9MOOSEVHFleft15 (195)°1.0min timedICAO rules
GREGS9PLEBSVHFleft283 (103)°1.0min timedICAO rules
GREGS9SPSNDBleft348 (168)°1.0min timedICAO rules
GREGS9TURKIVHFright266 (86)°1.5min timedICAO rules
GREGS9UKWNDBleft283 (103)°1.0min timedICAO rules
GREGS9ZANTOVHFleft283 (103)°1.5min timedICAO rules
HERBZ1BELYYVHFleft316 (136)°DME 10.0miICAO rules
HERBZ1DEDWTVHFleft279 (99)°DME 10.0miICAO rules
HERBZ1HNKERVHFright274 (94)°DME 10.0miICAO rules
HERBZ1LNDUSVHFleft297 (117)°DME 10.0miICAO rules
HERBZ1POTZYVHFleft356 (176)°DME 10.0miICAO rules
HERBZ1TURKIVHFright266 (86)°1.5min timedICAO rules
JFRYE4BELYYVHFleft316 (136)°DME 10.0miICAO rules
JFRYE4DEDWTVHFleft279 (99)°DME 10.0miICAO rules
JFRYE4HNKERVHFright274 (94)°DME 10.0miICAO rules
JFRYE4LNDUSVHFleft297 (117)°DME 10.0miICAO rules
JFRYE4POTZYVHFleft356 (176)°DME 10.0miICAO rules
JFRYE4TURKIVHFright266 (86)°1.5min timedICAO rules
LOADS3HINZEVHFleft107 (287)°DME 10.0miICAO rules
LOADS3KOBIEVHFright130 (310)°DME 10.0miICAO rules
LOADS3ZEKKEVHFleft91 (271)°DME 10.0miICAO rules
SLANT3CUBANVHFright64 (244)°DME 10.0miICAO rules
SLANT3JETTTVHFright66 (246)°DME 10.0miICAO rules
SLANT3KIDDDVHFright65 (245)°DME 10.0miICAO rules
SLANT3SEEVRVHFright45 (225)°DME 10.0miICAO rules
SWVAY4AGAINVHFright195 (15)°DME 10.0miICAO rules
SWVAY4FRSTIVHFright207 (27)°DME 10.0miICAO rules
SWVAY4PUNKYVHFright259 (79)°DME 10.0miICAO rules
SWVAY4SHLLYVHFright268 (88)°DME 10.0miICAO rules
YEAGR4CAPTIVHFleft73 (253)°1.0min timedICAO rules
YEAGR4CQYNDBleft95 (275)°< 60000ft1.0min timedICAO rules
YEAGR4GGGNDBright114 (294)°< 17999ft1.0min timedICAO rules
YEAGR4HERRIVHFleft101 (281)°1.0min timedICAO rules
YEAGR4WEIRSVHFleft128 (308)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
