Airports for X-Plane

Port Elizabeth

Airport details

CountrySouth Africa
StateEastern Cape
RegionFA
AirspaceCape Town Ctr
MunicipalityGqeberha
Elevation226ft (69m)
TimezoneGMT +2
Coordinates-33.98436, 25.62267
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeFAPE
IATA codePLZ
FAA coden/a

Communication

Port Elizabeth ATIS126.800
Port Elizabeth APRON122.650
Port Elizabeth Tower118.100
Port Elizabeth Approach120.400

Approach frequencies

ILS-cat-IIRW26109.518.00mi
ILS-cat-IIRW08111.118.00mi
3° GSRW26109.518.00mi
3° GSRW08111.118.00mi

Runway info

Runway 08 / 26
 length1974m (6476ft)
 bearing63° / 243°
 width46m (151ft)
 surfaceasphalt
Runway 17 / 35
 length1680m (5512ft)
 bearing141° / 321°
 width46m (151ft)
 surfaceasphalt

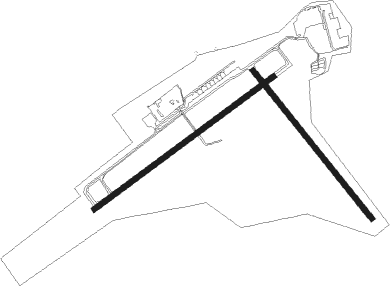

Airport layout


Taxiway locations

 A  A1  A2  A3  A4
Parking locations

 Gate  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
PEVPORT ELIZABETH VOR/DME0.9244°112.90

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08APKAS (63°)APKAS 5000ft
UNKIL (6mi, 63°) 3000ft
RW08NERUR (38°)NERUR 5000ft
UNKIL (6mi, 323°) 3000ft
RW08UTSIR (85°)UTSIR 5000ft
UNKIL (6mi, 143°) 3000ft
 RNAVUNKIL 3000ft
PE1F1 (6mi, 63°) 2000ft
PE1MP (5mi, 63°) 313ft
PE1M1 (5mi, 63°) 1300ft
PE1M2 (8mi, 143°) 2500ft
NERUR (16mi, 248°) 3000ft
NERUR (turn)
RW26DURKI (242°)DURKI 5300ft
TIBIP (6mi, 243°) 3000ft
RW26TESUP (213°)TESUP 5000ft
TIBIP (6mi, 143°) 3000ft
RW26UNRAD (267°)UNRAD 5000ft
TIBIP (6mi, 323°) 3000ft
 RNAVTIBIP 3000ft
PE2F1 (6mi, 243°) 1900ft
PE2MP (5mi, 243°) 239ft
PE2M1 (5mi, 243°) 1300ft
PE2M2 (8mi, 143°) 2500ft
UNRAD (16mi, 56°) 3000ft
UNRAD (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
