Airports for X-Plane

Bata

Airport details

CountryEquatorial Guinea
StateLitoral
RegionFG
AirspaceBrazzaville Ctr
MunicipalityBata
Elevation16ft (5m)
TimezoneGMT +1
Coordinates1.90221, 9.80281
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeFGBT
IATA codeBSG
FAA coden/a

Communication

Bata Tower118.800

Approach frequencies

ILS-cat-IRW21109.118.00mi
3° GSRW21109.118.00mi

Runway info

Runway 3 / 21
 length3313m (10869ft)
 bearing26° / 206°
 width60m (197ft)
 surfaceasphalt
 blast zone70m (230ft) / 70m (230ft)

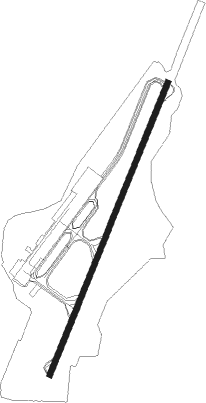

Airport layout


Taxiway locations

 A  B  C  D
Parking locations

 Cargo  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
BTBATA NDB0.2348°325
BTABATA VOR/DME0.388°115.40

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03MONIT (47°)MONIT 3000ft
SITBI (5mi, 117°) 2000ft
RW03NUSIR (5°)NUSIR 3700ft
SITBI (5mi, 297°) 2000ft
 RNAVSITBI 2000ft
BT503 (6mi, 26°) 2000ft
FGBT (7mi, 25°) 65ft
BT504 (4mi, 29°)
MONIT (18mi, 223°) 3000ft
MONIT (turn) 3000ft
RW21KEKOP (186°)KEKOP 3000ft
POSON (5mi, 117°) 2000ft
RW21LIKUL (228°)LIKUL 3900ft
POSON (5mi, 297°) 2000ft
 RNAVPOSON 2000ft
BT501 (6mi, 206°) 2000ft
FGBT (7mi, 208°) 61ft
BT502 (4mi, 204°)
LIKUL (18mi, 43°) 3900ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
