Airports for X-Plane

Tenerife Island - Tenerife Sur

Airport details

CountrySpain
StateCanary Islands
RegionGC
AirspaceCanaries Ctr
MunicipalityGranadilla de Abona
Elevation208ft (63m)
TimezoneGMT +0
Coordinates28.05062, -16.56253
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeGCTS
IATA codeTFS
FAA coden/a

Communication

Tenerife Sur ATIS118.675
Tenerife Sur CLD121.750
Tenerife Sur Ground Control121.900
Tenerife Sur Tower119.000
Tenerife Sur Tower120.300
Tenerife Sur Approach127.700
Tenerife Sur Approach128.125
Tenerife Sur Departure127.700

Approach frequencies

ILS-cat-IRW25110.918.00mi
ILS-cat-IRW07109.718.00mi
3° GSRW25110.918.00mi
3° GSRW07109.718.00mi
Nearby Points of Interest:
Conjunto histórico de Arona
-
Casa del Paseo y Capilla de San Juan
-
Camino del Socorro
-
Shrine of Our Lady of Mount Carmel
-
Real Convento de Nuestra Señora de la Candelaria
-
Virgin of Candelaria
-
Casa de la Portuguesa
-
San Cristóbal de La Laguna
-
State Public Library, Santa Cruz de Tenerife
-
Bullring of Santa Cruz de Tenerife
-
Parlament of Canary Islands building

Runway info

Runway 07 / 25
 length3197m (10489ft)
 bearing71° / 251°
 width45m (148ft)
 surfaceasphalt
 blast zone182m (597ft) / 0m (0ft)

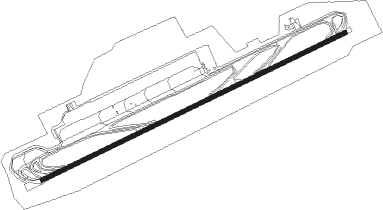

Airport layout


Taxiway locations

 A2  B0  B1  B2  B3  B6  B7  D1
 D3  D4  D5  D6  T
Parking locations

 Cargo  E  GA  GA6  GA7  GA8  Gate

Nearby beacons

codeidentifierdistbearingfrequency
TESTENERIFE SOUTH NDB0.2356°317
TFSTENERIFE SOUTH VOR/DME7.2249°116.40
LROTENERIFE-LOS RODEOS VOR/DME28.326°116.20
FPTENERIFE-NORTH NDB28.424°420
TFNTENERIFE-NORTH VOR/DME3331°117.70
LGMLA GOMERA VOR/DME34.6268°116

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW07
 BIMB8E204mi9°
 KONB8E206mi21°
 SAMA8E205mi37°
 VAST7E215mi51°
 SARA1E163mi55°
 KORA2E233mi67°
 RASE3E118mi73°
 KOPU3E109mi88°
 LPC6E61mi101°
 REMG2E90mi127°
 ODEG2E71mi167°
 URQU1E74mi202°
 HIE6E72mi260°
 ARAC4E52mi293°
RW25
 BIMB6F204mi9°
 KONB5F206mi21°
 SAMA9F205mi37°
 VAST8F215mi51°
 SARA1F163mi55°
 KORA6F233mi67°
 RASE1F118mi73°
 KOPU1F109mi88°
 LPC5F61mi101°
 REMG2F90mi127°
 ODEG2F71mi167°
 URQU1F74mi202°
 HIE5F72mi260°
 ARAC3F52mi293°

STAR starting pointsdistanceinbound heading
ALL
 URQU1X, URQU1G73.922°
 HIE2X, HIE2G71.680°
 REMG2X, REMG2G89.8307°
 ODEG2X, ODEG2G70.9347°
RW07
 ORTI4G, ORTI1X201.5180°
 KONB4G, KONB1X205.9201°
 TERT7G, TERT2X236.5242°
 RUSI1E, RUSI7G204.3257°
 LORP1X, LORP1G101.6265°
RW25
 ORTI5H, ORTI1S201.5180°
 KONB5H, KONB1S205.9201°
 TERT2J, TERT9H236.5242°
 RUSI1J, RUSI9H204.3257°
 LORP1S, LORP2H101.6265°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
HIE2GTFSNDBright253 (73)°> 7000ft1.0min timed230
KONB1STFSNDBright253 (73)°> 7000ft1.0min timed230
KONB4GBAMELVHFright307 (127)°> 6000ftDME 5.0miICAO rules
KONB4GTFSNDBright253 (73)°> 7000ft1.0min timed230
KONB5HTFSNDBright253 (73)°> 7000ft1.0min timed230
LORP1GTFSNDBright253 (73)°> 7000ft1.0min timed230
LORP1STFSNDBright253 (73)°> 7000ft1.0min timed230
LORP2HTFSNDBright253 (73)°> 7000ft1.0min timed230
ODEG2GTFSNDBright253 (73)°> 7000ft1.0min timed230
ORTI1STFSNDBright253 (73)°> 7000ft1.0min timed230
ORTI4GBAMELVHFright307 (127)°> 6000ftDME 5.0miICAO rules
ORTI4GTFSNDBright253 (73)°> 7000ft1.0min timed230
ORTI5HTFSNDBright253 (73)°> 7000ft1.0min timed230
REMG2GTFSNDBright253 (73)°> 7000ft1.0min timed230
RUSI1JTFSNDBright253 (73)°> 7000ft1.0min timed230
RUSI7GTFSNDBright253 (73)°> 7000ft1.0min timed230
RUSI9HTFSNDBright253 (73)°> 7000ft1.0min timed230
TERT2JTFSNDBright253 (73)°> 7000ft1.0min timed230
TERT7GTFSNDBright253 (73)°> 7000ft1.0min timed230
TERT9HTFSNDBright253 (73)°> 7000ft1.0min timed230
URQU1GTFSNDBright253 (73)°> 7000ft1.0min timed230
*) magnetic outbound (inbound) holding course
