Airports for X-Plane

Tenerife Island - Tenerife Norte - Los Rodeos

Airport details

CountrySpain
StateCanary Islands
RegionGC
AirspaceCanaries Ctr
MunicipalitySan Cristóbal de La Laguna
Elevation2076ft (633m)
TimezoneGMT +0
Coordinates28.48278, -16.34167
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeGCXO
IATA codeTFN
FAA coden/a

Communication

Tenerife Norte - Los Rodeos ATIS118.575
Tenerife Norte - Los Rodeos CLR121.850
Tenerife Norte - Los Rodeos Ground Control121.700
Tenerife Norte - Los Rodeos Tower118.700
Tenerife Norte - Los Rodeos Approach124.800
Tenerife Norte - Los Rodeos Departure124.800

Approach frequencies

ILS-cat-IRW12108.718.00mi
ILS-cat-IRW30110.318.00mi
3° GSRW12108.718.00mi
3° GSRW30110.318.00mi
Nearby Points of Interest:
San Cristóbal de La Laguna
-
State Public Library, Santa Cruz de Tenerife
-
Bullring of Santa Cruz de Tenerife
-
Parlament of Canary Islands building
-
Virgin of Candelaria
-
Real Convento de Nuestra Señora de la Candelaria
-
Casa de la Portuguesa
-
Camino del Socorro
-
Casa del Paseo y Capilla de San Juan
-
Shrine of Our Lady of Mount Carmel
-
Conjunto histórico de Arona

Runway info

Runway 12 / 30
 length3402m (11161ft)
 bearing108° / 288°
 width45m (148ft)
 surfaceasphalt
 displ threshold93m (305ft) / 140m (459ft)
 blast zone59m (194ft) / 56m (184ft)

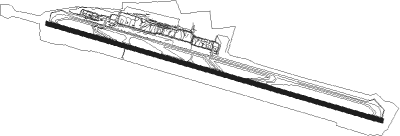

Airport layout


Taxiway locations

 E1  E2  E5  R
Parking locations

 1  10  12  12A  12B  13  14  15
 16  17  18  1A  2  2A  3  3A
 3B  4  5  5A  5B  7  8  9
 AG1  AG2  AG3  AG4  AG5  AG6  AG7  K1
 K2  N1  N2  N3  N5  T1  T2  T3
 T4  T5  T6

Nearby beacons

codeidentifierdistbearingfrequency
LROTENERIFE-LOS RODEOS VOR/DME0.5282°116.20
FPTENERIFE-NORTH NDB1.5288°420
TFNTENERIFE-NORTH VOR/DME553°117.70
TESTENERIFE SOUTH NDB28.2207°317
TFSTENERIFE SOUTH VOR/DME34.1216°116.40
LGMLA GOMERA VOR/DME53.6243°116
GDVGRAN CANARIA VOR/DME54114°112.90
TGNGRAN CANARIA TACAN60.5120°115.60
VRGRAN CANARIA NDB61.6124°365
LPCGRAN CANARIA SOUTH VOR/DME62.1126°115

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW12
 BIMB6K177mi6°
 KONB5K178mi20°
 SAMA6K177mi39°
 VAST5K189mi54°
 SARA1K138mi60°
 KORA7K211mi72°
 LARY1K83mi76°
 GDV3K54mi114°
 LPC6K62mi126°
 TFS2K, TFS2C34mi216°
 HIE5K91mi247°
 ARAC3K59mi267°
RW30
 BIMB5J177mi6°
 KONB4J178mi20°
 SAMA5J177mi39°
 VAST4J189mi54°
 SARA1J138mi60°
 KORA6J211mi72°
 LARY1J83mi76°
 GDV3J54mi114°
 LPC5J62mi126°
 TFS2J, TFS2D34mi216°
 HIE3J91mi247°
 ARAC1J59mi267°

STAR starting pointsdistanceinbound heading
ALL
 HIE2L91.067°
 ORTI1L66.5178°
 KONB1L177.6200°
 SAMA1L176.5219°
 LARY1L82.7256°
 TERT4L154.4256°
 RUSI1M, RUSI3L187.4263°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
HIE2LTFNNDBleft356 (176)°> 6000ft1.0min timed210
KONB1LTFNNDBleft356 (176)°> 6000ft1.0min timed210
LARY1LTFNNDBleft356 (176)°> 6000ft1.0min timed210
ORTI1LTFNNDBleft356 (176)°> 6000ft1.0min timed210
RUSI1MTFNNDBleft356 (176)°> 6000ft1.0min timed210
RUSI3LCANDEVHFright127 (307)°> 7000ftDME 5.0miICAO rules
RUSI3LTFNNDBleft356 (176)°> 6000ft1.0min timed210
SAMA1LTFNNDBleft356 (176)°> 6000ft1.0min timed210
TERT4LTFNNDBleft356 (176)°> 6000ft1.0min timed210
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
