Airports for X-Plane

Freetown - Freetown Lungi

Airport details

CountrySierra Leone
StatePort Loko District
RegionGF
AirspaceRoberts Ctr
Elevation83ft (25m)
TimezoneGMT +0
Coordinates8.61373, -13.20015
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeGFLL
IATA codeFNA
FAA coden/a

Communication

Freetown Lungi Ground Control121.900
Freetown Lungi Tower118.100
Freetown Lungi Approach119.100

Approach frequencies

ILS-cat-IRW30109.918.00mi
3° GSRW30109.918.00mi
Nearby Points of Interest:
Sierra Leone River
-
Old Fourah Bay College building
-
Western Area Peninsula National Park

Runway info

Runway 12 / 30
 length3195m (10482ft)
 bearing107° / 287°
 width46m (150ft)
 surfaceasphalt
 blast zone63m (207ft) / 60m (197ft)

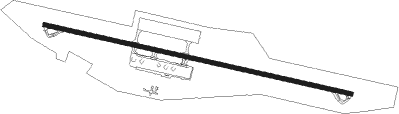

Airport layout


Taxiway locations

 B  C  D
Parking locations

 GA1  Stand

Nearby beacons

codeidentifierdistbearingfrequency
LGILUNGI (FREETOWN) NDB0.564°339
FFABERDEEN HILL NDB8.4218°296
GIAGBESSIA (CONAKRY) VOR/DME62.4336°114.90
CYCONAKRY NDB63.1338°395

Departure and arrival routes

Transition altitude5000ft
Transition level7000ft
STAR starting pointsdistanceinbound heading
RW12
 LIPO1A98.0115°
 BIRE1A29.2158°
 AMLE1A32.6178°
 OVLA1A47.9230°
 BILO1A48.4289°
 MATU1A88.1310°
RW30
 LIPO1B98.0115°
 BIRE1B29.2158°
 AMLE1B32.6178°
 OVLA1B47.9230°
 BILO1B48.4289°
 MATU1B88.1310°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12BANCO (108°)BANCO 2500ft
JALOH (5mi, 107°)
MACCO (5mi, 107°) 2000ft
RW12DBULL (133°)DBULL 2500ft
JALOH (6mi, 197°)
MACCO (5mi, 107°) 2000ft
RW12MUZAM (82°)MUZAM 4100ft
JALOH (6mi, 17°)
MACCO (5mi, 107°) 2000ft
 RNAVMACCO 2000ft
GFLL (7mi, 109°) 136ft
KANNU (17mi, 106°) 2500ft
KANNU (turn) 2500ft
RW30KANNU (286°)KANNU 2500ft
PETFU (5mi, 287°)
GBANE (5mi, 287°) 2000ft
RW30MATEN (261°)MATEN 2500ft
PETFU (6mi, 197°)
GBANE (5mi, 287°) 2000ft
RW30PEPEL (311°)PEPEL 4100ft
PETFU (6mi, 17°)
GBANE (5mi, 287°) 2000ft
 RNAVGBANE 2000ft
GFLL (7mi, 285°) 145ft
BANCO (17mi, 288°) 2500ft
BANCO (turn) 2500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AMLE1ADBULLVHFright24 (204)°2500ft - 14000ft1.0min timed230
AMLE1BMATENVHFleft24 (204)°2500ft - 14000ft1.0min timed230
BILO1ADBULLVHFright24 (204)°2500ft - 14000ft1.0min timed230
BILO1BKANNUVHFleft114 (294)°2500ft - 14000ft1.0min timed230
BIRE1ADBULLVHFright24 (204)°2500ft - 14000ft1.0min timed230
BIRE1BMATENVHFleft24 (204)°2500ft - 14000ft1.0min timed230
LIPO1ABANCOVHFright294 (114)°2500ft - 14000ft1.0min timed230
LIPO1BMATENVHFleft24 (204)°2500ft - 14000ft1.0min timed230
MATU1ADBULLVHFright24 (204)°2500ft - 14000ft1.0min timed230
MATU1BKANNUVHFleft114 (294)°2500ft - 14000ft1.0min timed230
OVLA1ADBULLVHFright24 (204)°2500ft - 14000ft1.0min timed230
OVLA1BMATENVHFleft24 (204)°2500ft - 14000ft1.0min timed230
*) magnetic outbound (inbound) holding course
