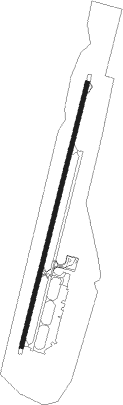

Bissau - Bissau Osvaldo Vieira
Airport details
| Country | Guinea-Bissau |
| State | Biombo Region |
| Region | GG |
| Airspace | Dakar Ctr |
| Municipality | Setor de Safim |
| Elevation | 126ft (38m) |
| Timezone | GMT +0 |
| Coordinates | 11.88886, -15.65573 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | GGOV |
| IATA code | OXB |
| FAA code | n/a |
Communication
| Bissau Osvaldo Vieira Tower | 124.300 |
| Bissau Osvaldo Vieira Approach | 123.900 |
| Bissau Osvaldo Vieira Departure | 124.300 |
Approach frequencies
| ILS-cat-I | RW21 | 109.3 | 18.00mi |
| 3° GS | RW21 | 109.3 | 18.00mi |
Nearby Points of Interest:
Museu Etnográfico Nacional da Guiné-Bissau
-Presidential Palace, Bissau
-Central post Bissau
-Catedral de Bissau
-Paços do Concelho de Bolama
-Forte de Cacheu
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| BIS | BISSAU VOR/DME | 2 | 19° | 114.30 |
| ZG | ZIGUINCHOR VOR | 54 | 317° | 112.50 |
Departure and arrival routes
| Transition altitude | 3000ft |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| LUST1V | 55.0 | 117° | |
| ANIT1V | 201.7 | 148° | |
| KOMO1V | 36.0 | 155° | |
| DILP1V | 40.0 | 204° | |
| KOMA1V | 86.7 | 234° | |
| BADI1V | 113.6 | 259° | |
| TANO1V | 118.5 | 264° | |
| GULA1V | 62.1 | 314° | |
| AKDA1V | 92.4 | 358° | |
| RW03 | |||
| LUST1G | 55.0 | 117° | |
| ANIT1G | 201.7 | 148° | |
| KOMO1G | 36.0 | 155° | |
| DILP1G | 40.0 | 204° | |
| KOMA1G | 86.7 | 234° | |
| BADI1G | 113.6 | 259° | |
| TANO1G | 118.5 | 264° | |
| GULA1G | 62.1 | 314° | |
| AKDA1G | 92.4 | 358° | |
| RW21 | |||
| LUST1D | 55.0 | 117° | |
| ANIT1D | 201.7 | 148° | |
| KOMO1D | 36.0 | 155° | |
| DILP1D | 40.0 | 204° | |
| KOMA1D | 86.7 | 234° | |
| BADI1D | 113.6 | 259° | |
| TANO1D | 118.5 | 264° | |
| GULA1D | 62.1 | 314° | |
| AKDA1D | 92.4 | 358° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW03 | DERAB (44°) | DERAB 2000ft GALMU (5mi, 108°) 2000ft |
| RW03 | LURTO (354°) | LURTO 2000ft GALMU (5mi, 288°) 2000ft |
| RNAV | GALMU 2000ft OV501 (5mi, 19°) 2000ft GGOV (6mi, 19°) 179ft OV502 (5mi, 19°) DERAB (16mi, 217°) 2000ft | |
| RW21 | BURDU (176°) | BURDU 2000ft DISDI (5mi, 108°) 2000ft |
| RW21 | KOBDA (222°) | KOBDA 2000ft DISDI (5mi, 288°) 2000ft |
| RNAV | DISDI 2000ft OV503 (5mi, 199°) 2000ft GGOV (7mi, 199°) 135ft OV504 (4mi, 199°) BURDU (17mi, 1°) 2000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| AKDA1D | DISDI | VHF | right | 27 (207)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| AKDA1G | GALMU | VHF | right | 207 (27)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| AKDA1V | BIS | NDB | right | 27 (207)° | 2000ft - 9000ft | 1.0min timed | 230 |
| ANIT1D | DISDI | VHF | right | 27 (207)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| ANIT1G | GALMU | VHF | right | 207 (27)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| ANIT1V | BIS | NDB | right | 27 (207)° | 2000ft - 9000ft | 1.0min timed | 230 |
| BADI1D | DISDI | VHF | right | 27 (207)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| BADI1G | GALMU | VHF | right | 207 (27)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| BADI1V | BIS | NDB | right | 27 (207)° | 2000ft - 9000ft | 1.0min timed | 230 |
| BJ1D | DISDI | VHF | right | 27 (207)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| BJ1G | GALMU | VHF | right | 207 (27)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| BJ1V | BIS | NDB | right | 27 (207)° | 2000ft - 9000ft | 1.0min timed | 230 |
| DILP1D | DISDI | VHF | right | 27 (207)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| DILP1G | GALMU | VHF | right | 207 (27)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| DILP1V | BIS | NDB | right | 27 (207)° | 2000ft - 9000ft | 1.0min timed | 230 |
| GULA1D | DISDI | VHF | right | 27 (207)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| GULA1G | GALMU | VHF | right | 207 (27)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| GULA1V | BIS | NDB | right | 27 (207)° | 2000ft - 9000ft | 1.0min timed | 230 |
| KOMA1D | DISDI | VHF | right | 27 (207)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| KOMA1G | GALMU | VHF | right | 207 (27)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| KOMA1V | BIS | NDB | right | 27 (207)° | 2000ft - 9000ft | 1.0min timed | 230 |
| KOMO1D | DISDI | VHF | right | 27 (207)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| KOMO1G | GALMU | VHF | right | 207 (27)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| KOMO1V | BIS | NDB | right | 27 (207)° | 2000ft - 9000ft | 1.0min timed | 230 |
| LUST1D | DISDI | VHF | right | 27 (207)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| LUST1G | GALMU | VHF | right | 207 (27)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| LUST1V | BIS | NDB | right | 27 (207)° | 2000ft - 9000ft | 1.0min timed | 230 |
| TANO1D | DISDI | VHF | right | 27 (207)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| TANO1G | GALMU | VHF | right | 207 (27)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| TANO1V | BIS | NDB | right | 27 (207)° | 2000ft - 9000ft | 1.0min timed | 230 |
| ZG1D | DISDI | VHF | right | 27 (207)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| ZG1G | GALMU | VHF | right | 207 (27)° | 2000ft - 9000ft | DME 5.0mi | 230 |
| ZG1V | BIS | NDB | right | 27 (207)° | 2000ft - 9000ft | 1.0min timed | 230 |
| *) magnetic outbound (inbound) holding course | |||||||
