Airports for X-Plane

El Alamein - Al Alamain Intl

Airport details

CountryEgypt
StateMatruh
RegionHE
AirspaceCairo Ctr
Elevation143ft (44m)
TimezoneGMT +2
Coordinates30.92444, 28.46139
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeHEAL
IATA codeDBB
FAA coden/a

Communication

Al Alamain Intl Ground Control121.900
Al Alamain Intl Tower120.000
Al Alamain Intl Tower123.400

Runway info

Runway 13 / 31
 length3501m (11486ft)
 bearing127° / 307°
 width47m (154ft)
 surfaceasphalt
 blast zone76m (249ft) / 73m (240ft)

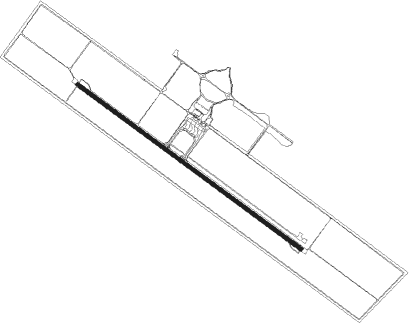

Airport layout


Nearby beacons

codeidentifierdistbearingfrequency
DBAEL DABA VOR/DME5.24°115.70

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13AL378 (152°)AL378 4000ft
AL382 (5mi, 225°) 2500ft
RW13AL379 (127°)AL379 4000ft
AL382 (5mi, 126°) 2500ft
RW13AL381 (104°)AL381 4000ft
AL382 (5mi, 45°) 2500ft
 RNAVAL382 2500ft
AL383 (5mi, 126°) 1800ft
AL384 (5mi, 127°) 193ft
AL385 (5mi, 127°)
AL378 (16mi, 325°) 3000ft
AL378 (turn)
RW31AL371 (307°)AL371 4000ft
AL374 (5mi, 307°) 2500ft
RW31AL372 (284°)AL372 4000ft
AL374 (5mi, 225°) 2500ft
RW31AL373 (332°)AL373 4000ft
AL374 (5mi, 45°) 2500ft
 RNAVAL374 2500ft
AL375 (5mi, 307°) 1800ft
AL376 (5mi, 306°) 190ft
AL377 (3mi, 307°)
AL371 (18mi, 127°) 3000ft
AL371 (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
