Airports for X-Plane

Hurghada - Hurghada Intl

Airport details

CountryEgypt
StateRed Sea
RegionHE
AirspaceCairo Ctr
MunicipalityAl Hadaba
Elevation48ft (15m)
TimezoneGMT +2
Coordinates27.17861, 33.80083
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeHEGN
IATA codeHRG
FAA coden/a

Communication

Hurghada Intl Ground Control121.900
Hurghada Intl Tower119.600
Hurghada Intl RADAR119.100
Hurghada Intl RADAR123.400

Approach frequencies

ILS-cat-IIRW34R110.318.00mi
3° GSRW34R110.318.00mi

Runway info

Runway 16R / 34L
 length4015m (13173ft)
 bearing164° / 344°
 width60m (197ft)
 surfaceasphalt
 blast zone128m (420ft) / 128m (420ft)
Runway 16L / 34R
 length4013m (13166ft)
 bearing164° / 344°
 width45m (148ft)
 surfaceasphalt
 displ threshold302m (991ft) / 0m (0ft)
 blast zone0m (0ft) / 61m (200ft)

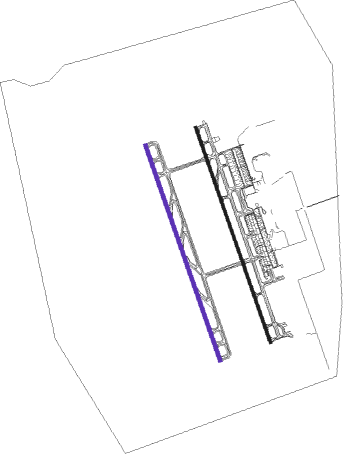

Airport layout - runway 16R / 34L


Taxiway locations

 B  C  D  E  F  H  J  K
 L  V1  V10  V2  V5  V8
Parking locations

 Gate  Mil  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
HGDHURGHADA VOR/DME0.2259°116.50
SHMSHARM EL SHEIKH VOR/DME5937°114.20

Departure and arrival routes

Transition altitude9500ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW34L
 IMLU1B25mi36°
 ALMO1B25mi110°
 SOBE1B29mi132°
 KUSA1B25mi207°
 BOTI1B25mi275°
 SOLO1B25mi351°
RW34R
 IMLU1B25mi36°
 ALMO1B25mi110°
 SOBE1B29mi132°
 KUSA1B25mi207°
 BOTI1B25mi275°
 SOLO1B25mi351°

STAR starting pointsdistanceinbound heading
RW34 (ALL)
 KUSA1A25.227°
 LUGA1A25.1116°
 SOKO1A25.1141°
 IMLU1A24.8216°
 ALMO1A24.7290°
 SOBE1A28.7312°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16LGN711 (191°)GN711 5000ft
GN714 (7mi, 238°) 3000ft
RW16LGN712 (164°)GN712 5500ft
GN714 (7mi, 163°) 3000ft
RW16LGN713 (135°)GN713 5500ft
GN714 (8mi, 95°) 3000ft
 RNAVGN714 3000ft
GN715 (5mi, 164°) 2000ft
HEGN (7mi, 164°) 100ft
GN716 (6mi, 163°) 1300ft
GN717 (10mi, 76°) 2000ft
GN711 (21mi, 333°) 5000ft
GN711 (turn) 5000ft
RW16RGN711 (191°)GN711 5000ft
GN718 (7mi, 242°) 3100ft
RW16RGN712 (164°)GN712 5500ft
GN718 (7mi, 168°) 3100ft
RW16RGN713 (135°)GN713 5500ft
GN718 (7mi, 93°) 3100ft
 RNAVGN718 3100ft
GN719 (5mi, 163°) 2000ft
HEGN (7mi, 159°) 128ft
GN720 (6mi, 169°) 1300ft
GN721 (10mi, 76°) 2000ft
GN711 (20mi, 334°) 5000ft
GN711 (turn) 5000ft
RW34LGN200 (307°)GN200 7100ft
GN209 (12mi, 273°) 3100ft
RW34LGN201 (344°)GN201 5500ft
GN209 (7mi, 339°) 3100ft
RW34LGN202 (27°)GN202 8800ft
GN203 (7mi, 58°) 6100ft
GN209 (7mi, 58°) 3100ft
 RNAVGN209 3100ft
GN210 (5mi, 344°) 2000ft
HEGN (7mi, 348°) 159ft
GN211 (7mi, 339°) 1500ft
GN207 (12mi, 77°) 3000ft
GN200 (23mi, 164°) 7100ft
GN200 (turn) 7100ft
RW34RGN200 (307°)GN200 7100ft
GN204 (12mi, 275°) 3000ft
RW34RGN201 (344°)GN201 5500ft
GN204 (7mi, 344°) 3000ft
RW34RGN202 (27°)GN202 8800ft
GN203 (7mi, 58°) 6100ft
GN204 (8mi, 58°) 3000ft
 RNAVGN204 3000ft
GN205 (5mi, 344°) 2000ft
HEGN (7mi, 344°) 85ft
GN206 (7mi, 344°) 1500ft
GN207 (11mi, 77°) 3000ft
GN200 (23mi, 164°) 7100ft
GN200 (turn) 7100ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALMO1AGN200VHFright91 (271)°> 7100ft1.0min timedICAO rules
IMLU1AGN200VHFright91 (271)°> 7100ft1.0min timedICAO rules
KUSA1AGN200VHFright91 (271)°> 7100ft1.0min timedICAO rules
LUGA1ALUGATVHFleft295 (115)°> 13000ftDME 5.0miICAO rules
SOBE1AGN200VHFright91 (271)°> 7100ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
