Massawa - Massawa Intl

Airport details

CountryEritrea
StateNorthen Red Sea Region
RegionHH
AirspaceAsmara Ctr
Elevation192ft (59m)
TimezoneGMT +3
Coordinates15.67114, 39.36800
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeHHMS
IATA codeMSW
FAA coden/a

Communication

Massawa INTL Massawa Ground121.900
Massawa INTL Massawa Tower118.300

Approach frequencies

ILS-cat-IRW07110.518.00mi
3° GSRW07110.518.00mi

Runway info

Runway 07 / 25
 length3604m (11824ft)
 bearing76° / 256°
 width44m (144ft)
 surfaceasphalt
 displ threshold52m (171ft) / 55m (180ft)
 blast zone8m (26ft) / 7m (23ft)

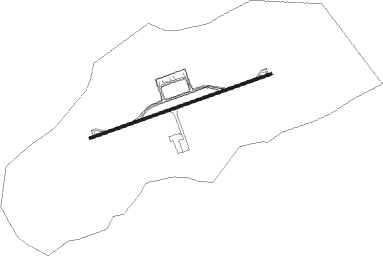

Airport layout


Taxiway locations
Parking locations

Nearby beacons

codeidentifierdistbearingfrequency
MSMASSAWA NDB1.3250°230
ASMASMARA VOR/DME35.6230°113.70
ASASMARA NDB36.4231°305
