Airports for X-Plane

Zanzibar - Abeid Amani Karume Intl

Airport details

CountryTanzania
StateZanzibar Urban/West
RegionHT
AirspaceDar-es-salaam Ctr
MunicipalityMagharibi B
Elevation54ft (16m)
TimezoneGMT +3
Coordinates-6.22489, 39.22517
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeHTZA
IATA codeZNZ
FAA coden/a

Communication

Abeid Amani Karume Intl Tower121.200
Abeid Amani Karume Intl Approach121.200
Abeid Amani Karume Intl Departure121.200

Approach frequencies

ILS-cat-IRW18111.518.00mi
3° GSRW18111.518.00mi

Runway info

Runway 18 / 36
 length3040m (9974ft)
 bearing174° / 354°
 width45m (148ft)
 surfaceasphalt
 blast zone98m (322ft) / 10m (33ft)

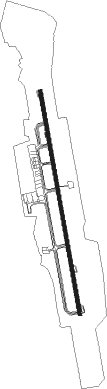

Airport layout


Taxiway locations

 18  36  A  B  C  E  F  L
Parking locations

 Stand

Nearby beacons

codeidentifierdistbearingfrequency
ZVZANZIBAR VOR/DME1.1174°116.70
DMDAR-ES-SALAAM NDB35.9177°272
DVDAR-ES-SALAAM VOR/DME39.8183°112.70
DSDAR-ES-SALAAM NDB42.4186°282
PAPEMBA NDB67.931°345

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18NEVAB (201°)NEVAB 2000ft
IMTOM (6mi, 264°) 2000ft
RW18OKPOL (174°)OKPOL 2000ft
IMTOM (6mi, 174°) 2000ft
RW18UDNUR (147°)UDNUR 2000ft
IMTOM (6mi, 84°) 2000ft
 RNAVIMTOM 2000ft
IMVIV (5mi, 174°) 2000ft
HTZA (7mi, 174°) 103ft
(2381mi, 279°) 2000ft
UBVES (2405mi, 99°) 3000ft
UBVES (turn) 3000ft
RW36DUMSU (22°)DUMSU 3000ft
ZA601 (6mi, 84°) 2000ft
RW36EGTUT (354°)EGTUT 3000ft
ZA601 (6mi, 354°) 2000ft
RW36UVDOG (326°)UVDOG 3000ft
ZA601 (6mi, 264°) 2000ft
 RNAVZA601 2000ft
ZA602 (4mi, 354°) 2000ft
HTZA (7mi, 354°) 94ft
(2381mi, 279°) 3000ft
UBVES (2405mi, 99°) 3000ft
UBVES (turn) 3000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
