Piqua - Piqua Hartzell Fld
Airport details
| Country | United States of America |
| State | Ohio |
| Region | K5 |
| Airspace | Indianapolis Ctr |
| Municipality | Miami County |
| Elevation | 994ft (303m) |
| Timezone | GMT -5 |
| Coordinates | 40.16470, -84.30842 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | I17 |
| IATA code | n/a |
| FAA code | n/a |
Communication
| Piqua Hartzell Fld CTAF/UNICOM | 123.000 |
| Piqua Hartzell Fld DAYTON Approach/Departure | 134.450 |

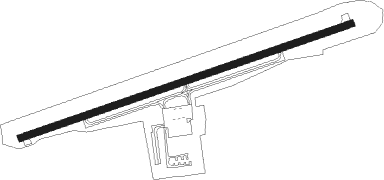

Runway info
| Runway 8 / 26 | ||
| length | 1216m (3990ft) | |
| bearing | 79° / 259° | |
| width | 23m (75ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| DQN | DAYTON VOR/DME | 9.7 | 211° | 114.50 |
| ROD | ROSEWOOD VORTAC | 14.2 | 65° | 117.50 |
| AT | BRUNY (DAYTON) NDB | 19.1 | 185° | 315 |
| FFO | PATTERSON (DAYTON) TACAN | 23.8 | 144° | 115.20 |
| AWW | WINCHESTER NDB | 28.1 | 270° | 212 |
| SGH | DME | 29 | 125° | 113.20 |
| XSF | SPRINGFIELD TACAN | 29.1 | 125° | 133.80 |
| RID | RICHMOND VOR/DME | 34.6 | 232° | 110.60 |
| MW | ONIDA (MIDDLETOWN) NDB | 35.2 | 181° | 223 |
| HKF | HOOK FIELD (MIDDLETOWN) NDB | 40.5 | 192° | 239 |
| SQ | PNTHR (CONNERSVILLE) NDB | 44.3 | 245° | 227 |
| IL | AIRBO (WILMINGTON) NDB | 48.1 | 140° | 407 |
| MXQ | MIDWEST (WILMINGTON) VOR/DME | 49.9 | 145° | 112.90 |
| HW | CUBLA (WILMINGTON) NDB | 52.6 | 152° | 299 |
| FBC | FLAG CITY VORTAC | 53.7 | 35° | 108.20 |
| CSS | COURT HOUSE (WASHINGTON) NDB | 54.1 | 122° | 414 |
| FWA | FORT WAYNE VORTAC | 63.2 | 313° | 117.80 |
| HLB | BATESVILLE NDB | 65.8 | 229° | 254 |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW08 | MANUE (79°) | MANUE 6000ft MANUE (turn) 2700ft |
| RW08 | OKONE (43°) | OKONE MANUE (10mi, 341°) 2700ft |
| RW08 | ROSSY (110°) | ROSSY MANUE (9mi, 164°) 2700ft |
| RNAV | MANUE 2700ft TABOE (7mi, 79°) 2600ft I17 (5mi, 79°) 1033ft (5144mi, 115°) 1393ft IMOSE (5133mi, 296°) 2700ft IMOSE (turn) | |
| RW26 | BONEE (287°) | BONEE IMOSE (11mi, 326°) 2800ft |
| RW26 | IMOSE (259°) | IMOSE 6000ft IMOSE (turn) 2800ft |
| RW26 | ROD (245°) | ROD IMOSE (5mi, 192°) 2800ft |
| RNAV | IMOSE 2800ft ZALAD (7mi, 259°) 2600ft I17 (5mi, 259°) 1025ft (5144mi, 115°) 1393ft MANUE (5155mi, 295°) 2700ft MANUE (turn) |
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
