Airports for X-Plane

Waco - Waco Regl

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceFt Worth Ctr
MunicipalityWaco
Elevation516ft (157m)
TimezoneGMT -6
Coordinates31.60966, -97.21932
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKACT
IATA codeACT
FAA codeACT

Communication

Waco Regl ATIS123.850
Waco Regl CTAF119.300
Waco Regl UNICOM122.950
Waco Regl WACO GROUND121.900
Waco Regl WACO TOWER119.300
Waco Regl WACO ApproachROACH127.650
Waco Regl WACO DepartureARTURE126.125

Approach frequencies

ILS-cat-IRW19109.718.00mi
3° GSRW19109.718.00mi

Runway info

Runway 1 / 19
 length2173m (7129ft)
 bearing17° / 197°
 width46m (151ft)
 surfaceasphalt
 displ threshold32m (105ft) / 0m (0ft)
Runway 14 / 32
 length1557m (5108ft)
 bearing145° / 325°
 width46m (151ft)
 surfaceasphalt

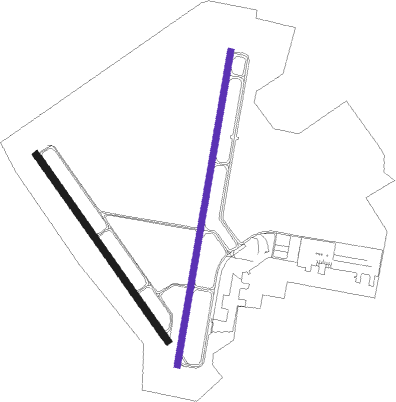

Airport layout - runway 1 / 19


Taxiway locations

 A  A1  A2  A3  A4  B  B1  B2
 C
Parking locations

 General  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
ACTWACO VORTAC4317°115.30
ROBROBINSON (WACO) NDB9.9125°400
TPLDME26.2207°110.40
GNLGROESBECK (MEXIA) VOR/DME34.392°108.80
LXYMEXIA NDB36.288°329
ILIRESH (KILLEEN) NDB43.1220°278
GRKGRAY (FORT HOOD) VOR/DME46.1226°111.80
JENGLEN ROSE TACAN47310°115
CGQPOWELL (CORSICANA) NDB48.860°344
CRSCORSICANA NDB4963°396
AGJGOOCH SPRINGS VORTAC53.7245°112.50

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01SATTY (322°)SATTY
XAFLE (6mi, 288°) 3000ft
SHAIL (8mi, 282°) 3000ft
 RNAVSHAIL 3000ft
URNER (6mi, 16°) 2000ft
WOXAD (3mi, 16°) 1100ft
KACT (2mi, 29°) 564ft
(5774mi, 108°) 759ft
CHRUS (5771mi, 288°) 3000ft
CHRUS (turn)
RW14DRILL (236°)DRILL
ETOHI (24mi, 267°) 3000ft
EVVIS (8mi, 214°) 3000ft
RW14SONET (105°)SONET
UFIFO (7mi, 65°) 3000ft
EVVIS (7mi, 95°) 3000ft
 RNAVEVVIS 3000ft
IAGER (5mi, 145°) 2100ft
KACT (6mi, 139°) 564ft
(5774mi, 108°) 1000ft
BOSEL (5776mi, 288°) 4000ft
BOSEL (turn) 4000ft
RW19IGORR (131°)IGORR
UZOKU (8mi, 90°) 3000ft
CHRUS (7mi, 102°) 3000ft
RW19IMIPE (228°)IMIPE
CHRUS (8mi, 273°) 3000ft
RW19WESLI (195°)WESLI
CHRUS (5mi, 197°) 3000ft
 RNAVCHRUS 3000ft
COFFI (6mi, 197°) 2100ft
KACT (6mi, 191°) 557ft
(5774mi, 108°) 705ft
YAYUC (5775mi, 288°)
BOSEL (8mi, 178°) 4000ft
BOSEL (turn) 4000ft
RW32BARES (358°)BARES
KOCYU (6mi, 21°) 3600ft
ILINI (8mi, 21°) 3000ft
RW32DRILL (236°)DRILL
PRKRR (29mi, 200°) 3000ft
ILINI (8mi, 270°) 3000ft
RW32SATTY (322°)SATTY
ILINI (7mi, 311°) 3000ft
 RNAVILINI 3000ft
SKOCH (7mi, 325°) 2100ft
IWIFY (3mi, 325°) 1160ft
KACT (2mi, 346°) 571ft
(5774mi, 108°) 762ft
EVVIS (5780mi, 288°) 4000ft
EVVIS (turn)
