Airports for X-Plane

Jaffrey - Jaffrey- Silver Ranch

Airport details

CountryUnited States of America
StateNew Hampshire
RegionK6
AirspaceBoston Ctr
MunicipalityJaffrey
Elevation1040ft (317m)
TimezoneGMT -5
Coordinates42.80513, -72.00302
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKAFN
IATA codeAFN
FAA codeAFN

Communication

Jaffrey- Silver Ranch ASOS135.875
Jaffrey- Silver Ranch CTAF/Unicom122.800

Runway info

Runway 16 / 34
 length909m (2982ft)
 bearing140° / 320°
 width15m (49ft)
 surfaceasphalt
 displ threshold0m (0ft) / 177m (581ft)

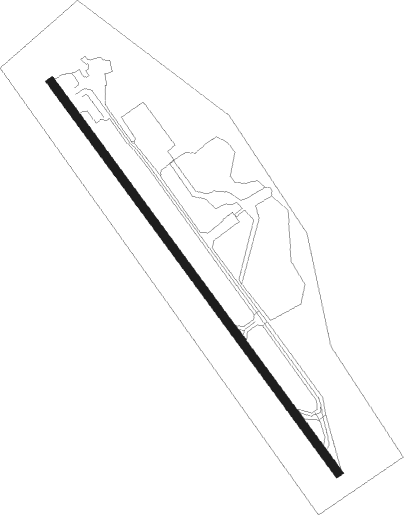

Airport layout


Taxiway locations

 A
Parking locations

 New  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
EENDME12.7268°109.40
GDMGARDNER VOR/DME15.7192°110.60
MJFITZY (MANCHESTER) NDB21.183°209
MHTMANCHESTER VOR/DME28.184°114.40
COEPSOM (CONCORD) NDB30.660°216
CONCONCORD VOR/DME31.146°112.90
CNHCLAREMONT NDB37.5327°233
LWMDME40.294°112.50
CEFWESTOVER(SPRINGFIELD/CHIC TACAN43.2221°114
LCBLNAP (LACONIA) NDB48.432°328
BAFBARNES (WESTFIELD/SPRINGF VORTAC49.8228°113
PUTPUTNAM VOR/DME51.5169°117.40
CTRCHESTER VOR/DME52242°115.10
LEBDME53.2346°113.70
LAHHANOVER (LEBANON) NDB54.4349°276
OWSTOGE (NORWOOD) NDB56.5128°397
RUTDME60307°111
DYOSMUTO (RUTLAND) NDB68.3313°221

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RWNVBGDM (12°)GDM 3000ft
 RNAVGDM 3000ft
SCROB (9mi, 12°) 3000ft
BUDAC (4mi, 12°) 1900ft
UCAKE (2mi, 12°) 1820ft
(4618mi, 121°) 1820ft
QOSNU (4619mi, 301°) 3400ft
QOSNU (turn)
RWNVCNOMBE (234°)NOMBE
PETAE (10mi, 277°) 3900ft
RWNVCOGIPE (144°)OGIPE
PETAE (10mi, 97°) 3900ft
RWNVCPETAE (192°)PETAE 3900ft
 RNAVPETAE 3900ft
QOSNU (7mi, 192°) 3100ft
RIGLE (6mi, 192°) 1840ft
(4618mi, 121°) 1840ft
SCROB (4618mi, 301°) 3000ft
SCROB (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
