Airports for X-Plane

Minocqua-woodruff - Lakeland Noble F Lee Mem Fld

Airport details

CountryUnited States of America
StateWisconsin
RegionK5
AirspaceMinneapolis Ctr
MunicipalityTown of Arbor Vitae
Elevation1627ft (496m)
TimezoneGMT -6
Coordinates45.92792, -89.73094
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKARV
IATA codeARV
FAA codeARV

Communication

Lakeland Noble F Lee Mem Fld AWOS 3121.125
Lakeland Noble F Lee Mem Fld CTAF/UNICOM122.700

Approach frequencies

LOCRW36111.718.00mi
Nearby Points of Interest:
First National Bank
-
Solon and Mathilda Sutliff House
-
Oneida County Courthouse
-
Sunset Point
-
Anvil Lake Campground Shelter

Runway info

Runway 18 / 36
 length1571m (5154ft)
 bearing178° / 358°
 width30m (100ft)
 surfaceasphalt
Runway 10 / 28
 length1099m (3606ft)
 bearing97° / 277°
 width23m (75ft)
 surfaceasphalt

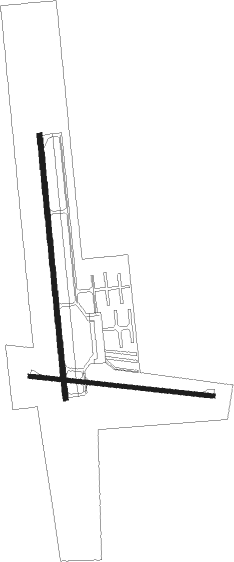

Airport layout


Parking locations

 GA1  GA2

Nearby beacons

codeidentifierdistbearingfrequency
DODOUGY (MINOCQUA WOODRUFF) NDB5.6180°236
RHARSHA (RHINELANDER) NDB18.6160°272
RHIRHINELANDER VOR/DME21137°109.20
RXWWATERSMEET NDB28.651°407
IWDIRONWOOD VOR/DME39.8327°108.80

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18DINER (244°)DINER
FEGOG (19mi, 259°) 3400ft
MIGPY (5mi, 269°) 3300ft
RW18IWD (147°)IWD
ICEGY (27mi, 147°) 3300ft
MIGPY (5mi, 89°) 3300ft
RW18MIGPY (178°)MIGPY 3300ft
 RNAVMIGPY 3300ft
PEHEK (6mi, 178°) 3200ft
RAMIW (3mi, 178°) 2200ft
KARV (2mi, 176°) 1674ft
(5394mi, 117°) 1974ft
CEPMU (5394mi, 297°)
KRSMS (13mi, 278°) 6000ft
KRSMS (turn) 6000ft
RW28DINER (244°)DINER
LAVGE (18mi, 229°) 3400ft
FAXUV (5mi, 195°) 3300ft
RW28RHI (317°)RHI
HASNI (11mi, 349°) 3300ft
FAXUV (5mi, 15°) 3300ft
 RNAVFAXUV 3300ft
ANGIW (6mi, 278°) 3200ft
KARV (5mi, 279°) 1660ft
(5394mi, 117°) 2030ft
OBUVE (5399mi, 297°)
KRSMS (8mi, 253°) 6000ft
KRSMS (turn)
RW36BAITS (45°)BAITS
JALEV (32mi, 49°) 3500ft
GEJUV (5mi, 89°) 3200ft
RW36RHI (317°)RHI
NAVTE (9mi, 307°) 3200ft
GEJUV (5mi, 269°) 3200ft
 RNAVGEJUV 3200ft
CEPMU (6mi, 358°) 3200ft
PESAE (3mi, 358°) 2200ft
KARV (2mi, 2°) 1669ft
(5394mi, 117°) 1948ft
MIGPY (5394mi, 297°) 3300ft
MIGPY (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
