Airports for X-Plane

Austin - Austin-bergstrom Intl

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceHouston Oceanic Ctr
MunicipalityAustin
Elevation541ft (165m)
TimezoneGMT -6
Coordinates30.18769, -97.66106
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeKAUS
IATA codeAUS
FAA codeAUS

Communication

Austin-Bergstrom Intl ASOS128.875
Austin-Bergstrom Intl ATIS124.400
Austin-Bergstrom Intl UNICOM122.950
Austin-Bergstrom Intl Clearance DEL125.500
Austin-Bergstrom Intl Ground Control121.700
Austin-Bergstrom Intl Ground Control121.900
Austin-Bergstrom Intl Tower121.000
Austin-Bergstrom Intl Austin Approach West119.000
Austin-Bergstrom Intl Austin Approach South120.875
Austin-Bergstrom Intl Austin Approach East127.225
Austin-Bergstrom Intl Austin Departure South120.875
Austin-Bergstrom Intl Austin Departure East127.225
Austin-Bergstrom Intl Austin Departure West119.000

Approach frequencies

ILS-cat-IIIRW18L110.518.00mi
ILS-cat-IIRW36R110.518.00mi
ILS-cat-IRW36L110.9518.00mi
ILS-cat-IRW18R110.9518.00mi
3° GSRW36L110.9518.00mi
3° GSRW18R110.9518.00mi
3° GSRW36R110.518.00mi
3° GSRW18L110.518.00mi
Nearby Points of Interest:
Smith Rock Shelter
-
Louis and Mathilde Reuter House
-
Anthony and Louise Viaer Alumni Hall
-
Willow-Spence Streets Historic District
-
Genaro P. and Carolina Briones House
-
Wesley United Methodist Church
-
Victory Grill
-
Haehnel Building
-
Arnold Bakery
-
Southgate-Lewis House
-
Connelly-Yerwood House
-
Austin Central Fire Station 1
-
Sixth Street
-
Congress Avenue Historic District
-
O. Henry Hall
-
J. P. Schneider Store
-
Millett Opera House
-
Norwood Tower
-
General Land Office Building
-
United States Courthouse
-
Little Campus
-
Brown Building
-
Henry Hirshfeld House and Cottage
-
Texas Governor's Mansion
-
Royal Arch Masonic Lodge

Runway info

Runway 18R / 36L
 length3746m (12290ft)
 bearing178° / 358°
 width46m (151ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)
Runway 18L / 36R
 length2752m (9029ft)
 bearing178° / 358°
 width46m (151ft)
 surfaceconcrete
 blast zone119m (390ft) / 119m (390ft)

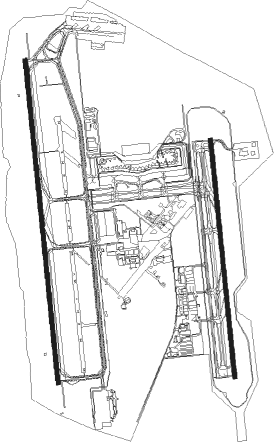

Airport layout


Taxiway locations

 A  B  C  E  F  G  G1  G2
 G3  H  J  K  L  M  N  S
 T
Parking locations

 1  10  11  12  14  15  16  17
 18  19  2  20  21  22  23  24
 25  26  27  28  29  3  30  31
 32  33  34  4  5  6  7  8
 9  Atlantic  DHL_1  DHL_2  FedEx_1  FedEx_2  FedEx_3  FedEx_Prop_1
 FedEx_Prop_2  FedEx_Prop_3  FedEx_Prop_4  GA_1  GA_2  GA_3  GA_4  GA_5
 GA_6  GA_7  GA_8  GA_9  Helo  MIL  S1  S2
 S3  Signature  UPS_1  UPS_2  UPS_3

Nearby beacons

codeidentifierdistbearingfrequency
CWKCENTEX VORTAC13.335°112.80
RUGARYS (AUSTIN) NDB20.3231°272
DHKRANDOLPH TACAN50.2223°109.90
ILIRESH (KILLEEN) NDB50.2357°278
GRKGRAY (FORT HOOD) VOR/DME51.3350°111.80
RNDRANDOLPH VORTAC51.6223°112.30
SATSAN ANTONIO VORTAC52.9236°116.80
ANALAMO (SAN ANTONIO) NDB58.7237°368
AGJGOOCH SPRINGS VORTAC64.8334°112.50
KSYKELLY (SAN ANTONIO) TACAN67.7229°112
SSFSTINSON (SAN ANTONIO) VOR69.1220°108.40

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 CWK783mi86°
 AUS654mi271°
RW18 (ALL)
 SAYBR357mi38°
 ILEXY383mi86°
 PALMS3138mi175°
 BNDIA353mi236°
 MUCKY364mi281°
 AEROZ2161mi293°
 ELOEL365mi340°
RW36 (ALL)
 SAYBR357mi38°
 ILEXY383mi86°
 PALMS3138mi175°
 BNDIA353mi236°
 MUCKY364mi281°
 AEROZ2161mi293°
 ELOEL365mi340°

STAR starting pointsdistanceinbound heading
ALL
 KALLA438.6142°
 BLEWE465.5204°
 BITER941.9280°
RW18 (ALL)
 DXEEE221.392°
 LAIKS326.5144°
 SEWZY630.6204°
 WLEEE630.5277°
RW36 (ALL)
 DXEEE221.392°
 LAIKS326.5144°
 SEWZY630.6204°
 WLEEE630.5277°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18LYDOFFS (179°)DOFFS
RRTOO (9mi, 178°) 2500ft
RW18LYHOUKM (159°)HOUKM 5000ft
RRTOO (9mi, 142°) 2500ft
RW18LYJEDYE (186°)JEDYE 4000ft
RRTOO (5mi, 196°) 2500ft
 RNAVRRTOO 2500ft
DDTOO (3mi, 179°) 1600ft
KAUS (4mi, 181°) 553ft
(5803mi, 107°) 1000ft
HOOKK (5778mi, 287°) 3000ft
HOOKK (turn)
RW18LZHOUKM (159°)HOUKM 5000ft
RRTOO (9mi, 142°) 2500ft
DDTOO (3mi, 179°) 1600ft
RW18LZJEDYE (186°)JEDYE 4000ft
RRTOO (5mi, 196°) 2500ft
DDTOO (3mi, 179°) 1600ft
RW18LZSMRFF (267°)SMRFF 5000ft
LAYYA (4mi, 359°) 3900ft
HANNN (2mi, 323°) 3100ft
NEEMS (2mi, 268°) 2400ft
DDTOO (2mi, 213°) 1600ft
RW18LZTRPPN (74°)TRPPN 6000ft
RUBZZ (3mi, 358°) 5000ft
DREPL (3mi, 358°) 3900ft
SWMMP (3mi, 48°) 2900ft
TGONE (turn) 2500ft
HUDDD (2mi, 109°) 2300ft
DDTOO (2mi, 153°) 1600ft
RW18LZXWING (234°)XWING 4000ft
HANNN (3mi, 292°) 3100ft
NEEMS (2mi, 268°) 2400ft
DDTOO (2mi, 213°) 1600ft
 RNAVDDTOO 1600ft
KAUS (4mi, 181°) 553ft
(5803mi, 107°) 1000ft
HOOKK (5778mi, 287°) 3000ft
HOOKK (turn)
RW18RYCHADE (174°)CHADE
UTEEE (6mi, 178°) 2800ft
RW18RYHOUKM (159°)HOUKM 5000ft
UTEEE (7mi, 145°) 2800ft
RW18RYJEDYE (186°)JEDYE 4000ft
UTEEE (4mi, 218°) 2800ft
 RNAVUTEEE 2800ft
ELLBJ (4mi, 178°) 1600ft
KAUS (5mi, 166°) 600ft
(5803mi, 107°) 1000ft
GARDS (5818mi, 287°) 3500ft
GARDS (turn)
RW18RZHOUKM (159°)HOUKM 5000ft
UTEEE (7mi, 145°) 2800ft
ELLBJ (4mi, 178°) 1600ft
RW18RZJEDYE (186°)JEDYE 4000ft
UTEEE (4mi, 218°) 2800ft
ELLBJ (4mi, 178°) 1600ft
RW18RZSMRFF (267°)SMRFF 5000ft
RGGLS (4mi, 359°) 3900ft
ALLOU (3mi, 323°) 3200ft
OVUKE (1mi, 281°) 2900ft
BOUGR (1mi, 269°) 2500ft
RODNT (2mi, 246°) 1900ft
ELLBJ (1mi, 201°) 1600ft
RW18RZTRPPN (74°)TRPPN 6000ft
RUBZZ (3mi, 358°) 5000ft
PEAYR (3mi, 359°) 3800ft
MAYHL (4mi, 73°) 2000ft
ELLBJ (1mi, 158°) 1600ft
RW18RZXWING (234°)XWING 4000ft
ALLOU (3mi, 292°) 3200ft
OVUKE (1mi, 281°) 2900ft
BOUGR (1mi, 269°) 2500ft
RODNT (2mi, 246°) 1900ft
ELLBJ (1mi, 201°) 1600ft
 RNAVELLBJ 1600ft
KAUS (5mi, 166°) 600ft
(5803mi, 107°) 1000ft
GARDS (5818mi, 287°) 3500ft
GARDS (turn)
RW36LYCAMDY (3°)CAMDY 4000ft
BIIRD (6mi, 358°) 2500ft
RW36LYLAMAS (2°)LAMAS 5000ft
CAMDY (4mi, 358°) 4000ft
BIIRD (6mi, 358°) 2500ft
 RNAVBIIRD 2500ft
FUNNN (3mi, 358°) 1600ft
WINKS (2mi, 358°) 1100ft
KAUS (2mi, 24°) 542ft
(5803mi, 107°) 1700ft
GARDS (5818mi, 287°) 3500ft
GARDS (turn)
RW36LZBOWTZ (308°)BOWTZ 4000ft
ZILKR (4mi, 267°) 2800ft
HEGVO (turn) 2400ft
ODINE (2mi, 288°) 2200ft
FUNNN (2mi, 334°) 1600ft
RW36LZCAMDY (3°)CAMDY 4000ft
BIIRD (6mi, 358°) 2500ft
FUNNN (3mi, 358°) 1600ft
RW36LZLAIDY (84°)LAIDY 5000ft
ANGGS (3mi, 178°) 3900ft
POIMM (2mi, 145°) 3100ft
SUKEY (3mi, 84°) 2200ft
FUNNN (2mi, 26°) 1600ft
RW36LZLAMAS (2°)LAMAS 5000ft
CAMDY (4mi, 358°) 4000ft
BIIRD (6mi, 358°) 2500ft
FUNNN (3mi, 358°) 1600ft
RW36LZLIPSS (71°)LIPSS 4000ft
POIMM (5mi, 116°) 3100ft
SUKEY (3mi, 84°) 2200ft
FUNNN (2mi, 26°) 1600ft
RW36LZSMRFF (267°)SMRFF 5000ft
SQWCH (4mi, 179°) 3900ft
ZILKR (3mi, 226°) 2800ft
HEGVO (turn) 2400ft
ODINE (2mi, 288°) 2200ft
FUNNN (2mi, 334°) 1600ft
 RNAVFUNNN 1600ft
KAUS (4mi, 14°) 542ft
(5803mi, 107°) 1700ft
GARDS (5818mi, 287°) 3500ft
GARDS (turn)
RW36RYBALLD (358°)BALLD 4000ft
SSHOE (9mi, 359°) 2500ft
 RNAVSSHOE 2500ft
FNNLY (3mi, 359°) 1600ft
KAUS (4mi, 355°) 526ft
(5803mi, 107°) 1000ft
HOOKK (5778mi, 287°) 3000ft
HOOKK (turn)
RW36RZBALLD (358°)BALLD 4000ft
SSHOE (9mi, 359°) 2500ft
FNNLY (3mi, 359°) 1600ft
RW36RZBOWTZ (308°)BOWTZ 4000ft
MYOPE (4mi, 267°) 2800ft
APALE (2mi, 287°) 2200ft
FNNLY (2mi, 333°) 1600ft
RW36RZLAIDY (84°)LAIDY 5000ft
ANGGS (3mi, 178°) 3900ft
POIMM (2mi, 145°) 3100ft
RFRCE (1mi, 103°) 3100ft
BLURG (1mi, 90°) 2700ft
TREKS (2mi, 71°) 2200ft
FNNLY (2mi, 26°) 1600ft
RW36RZLIPSS (71°)LIPSS 4000ft
POIMM (5mi, 116°) 3100ft
RFRCE (1mi, 103°) 3100ft
BLURG (1mi, 90°) 2700ft
TREKS (2mi, 71°) 2200ft
FNNLY (2mi, 26°) 1600ft
RW36RZSMRFF (267°)SMRFF 5000ft
WRRDD (4mi, 179°) 3800ft
MYOPE (3mi, 227°) 2800ft
APALE (2mi, 287°) 2200ft
FNNLY (2mi, 333°) 1600ft
 RNAVFNNLY 1600ft
KAUS (4mi, 355°) 526ft
(5803mi, 107°) 1000ft
HOOKK (5778mi, 287°) 3000ft
HOOKK (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BITER9WLEEEVHFleft101 (281)°1.0min timedICAO rules
BLEWE4SEWZYVHFleft12 (192)°1.0min timedICAO rules
SEWZY6SEWZYVHFleft12 (192)°1.0min timedICAO rules
SEWZY6WINDUVHFright15 (195)°DME 14.0miICAO rules
*) magnetic outbound (inbound) holding course
