Airports for X-Plane

Westfield/springfield - Barnes Muni

Airport details

CountryUnited States of America
StateMassachusetts
RegionK6
AirspaceBoston Ctr
MunicipalityWestfield
Elevation270ft (82m)
TimezoneGMT -5
Coordinates42.15794, -72.71586
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKBAF
IATA codeBAF
FAA codeBAF

Communication

BARNES MUNI ATIS127.100
BARNES MUNI CTAF118.900
BARNES MUNI Ground121.700
BARNES MUNI WESTFIELD Tower118.900
BARNES MUNI BRADLEY Approach/Departure125.350

Approach frequencies

ILS-cat-IRW20111.918.00mi
3° GSRW20111.918.00mi

Runway info

Runway 2 / 20
 length2746m (9009ft)
 bearing14° / 194°
 width46m (151ft)
 surfaceasphalt
 blast zone61m (200ft) / 62m (203ft)
Runway 15 / 33
 length1524m (5000ft)
 bearing132° / 312°
 width31m (102ft)
 surfaceasphalt
 displ threshold149m (489ft) / 0m (0ft)

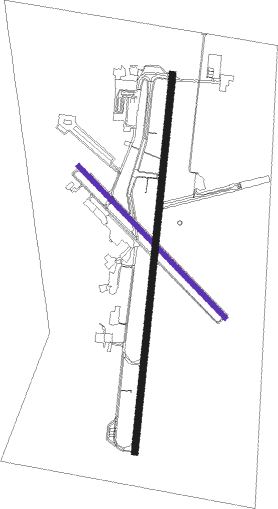

Airport layout - runway 15 / 33


Taxiway locations

 A  B  B1  B3  B4  BA  D  G
 G2  G3  H
Parking locations

 ANG  GA  Gulfstream

Nearby beacons

codeidentifierdistbearingfrequency
BAFBARNES (WESTFIELD/SPRINGF VORTAC0.2355°113
CEFWESTOVER(SPRINGFIELD/CHIC TACAN8.778°114
CTRCHESTER VOR/DME13.1300°115.10
HFDHARTFORD VOR/DME31.9162°114.90
GDMGARDNER VOR/DME37.359°110.60
PUTPUTNAM VOR/DME40.7103°117.40
EENDME42.534°109.40
PWLPAWLING (POUGHKEEPSIE) VOR/DME45.8246°114.30
ORWNORWICH VOR/DME48.2130°110
MADMADISON VOR/DME50.7178°110.40
HVNHAVEN DME54.3191°109.80
CAMCAMBRIDGE VOR/DME57.3323°115
GONGROTON VOR/DME57.9141°110.85
BDRBRIDGEPORT VOR/DME62.6202°108.80
CMKCARMEL VOR/DME65.4225°116.60

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW02
 CSTL974mi184°
RW15
 CSTL974mi184°
RW20
 CSTL974mi184°
RW33
 CSTL974mi184°

STAR starting pointsdistanceinbound heading
ALL
 STELA138.1115°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02MOLDS (99°)MOLDS
KUFOP (16mi, 143°) 4500ft
POPPI (5mi, 98°) 3000ft
 RNAVPOPPI 3000ft
MINGS (6mi, 14°) 2100ft
KBAF (6mi, 14°) 320ft
(4641mi, 120°) 515ft
AGACO (4641mi, 300°)
KLYDE (5mi, 19°) 3000ft
KLYDE (turn)
RW20LEADS (194°)LEADS 3500ft
 RNAVLEADS 3500ft
WESIE (7mi, 194°) 2200ft
PETGE (3mi, 194°) 1260ft
KBAF (4mi, 194°) 317ft
(4641mi, 120°) 1700ft
CTR (4653mi, 300°) 4000ft
CTR (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DPK3BRISSVHFright161 (341)°< 14000ft1.0min timedICAO rules
STELA1STELAVHFright327 (147)°< 14000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
